Description

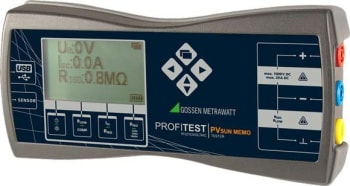

Gossen Metrawatt M360E – Test Instrument for Testing PV Modules and Strings plus Integrated Memory (> 10,000 Data Records) and Software
- Insulation measurement with up to 1000 V test voltage
- Polarity test, ground fault test and protective conductor continuity test
- Bidirectional USB port
- Internal memory for 10,000 data records
- PV software
- Measurement cables and adapters
The associated software allows for the acquisition of all PV system data and for direct transfer to the tester prior to performing the measurement. The PV system and the associated string are selected on site before each measurement. The measurement is stored after successful testing. After having successfully completed all tests and measurements, the entire data can be read in a simple and reliable manner via the USB interface and evaluated with the software.
Applications
With the PROFITEST PVSUN and the PROFITEST PVSUN MEMO, all required electrical safety tests at photovoltaic systems can be executed simply and safely in accordance with DIN EN 62446. The test instruments are suitable for testing PV modules and strings with up to 1,000 V / 20 A. In addition to insulation measurement, polarity testing and ground fault testing, protective conductor continuity can also be tested. The testers are distinguished by their ergonomic design and easy handling with a weight of only 500 g.
