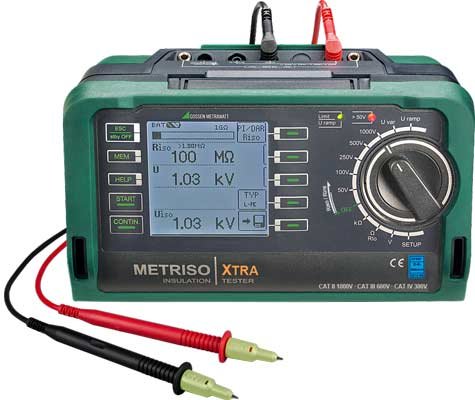

Gossen Metrawatt M550S – 1000V Digital Insulation Tester, Resistance Measurement – 10Ohm to 10 kOhm

• Test voltages in fixed increments, variable or as a ramp 50, 100, 250, 500, 1000 V
• Polarization index (PI) and dielelectric absorption ratio (DAR)
•  Intelligent filter
• Signaling of dangerous contact voltage
• Acoustic signaling when limit value is exceeded

The METRISO XTRA insulation and resistance measuring instruments allow for quick and effective testing of protective measures in accordance with:

• DIN VDE 0100
• ÖVE-EN 1 (Austria)
• SEV 1000 (Switzerland)
• Regulations specific to other countries as well
• Insulation measurement per EN 61557-2 / VDE 0413 part 2
• Low-resistance measurement per EN 61557-4 / VDE 0413 part 4
• Voltage testing and measurement up to 1000V
• Backlit dot matrix display for measured and limit values
• Timer function 1 s … 100 min
• Guard terminal for compensating surface current

Measurements

• PI, DAR Polarization index measurements
• Riso Variable = 50 … 1000V (Limit value 1 MΩ)
• Riso VRamp = 50 … 1000V Display of breakdown voltage
• Measuring ranges
• Riso 10 k …1 TΩ
• Riso V = 50, 100, 250, 500 / 1000V
• R 10 Ω… 10 kΩ
• RLO 0,01 … 10 Ω
• V 0 … 500 / 1000V

Display functions

• Backlit display
• Limit value LED Limit (green/red)
• Additional acoustic signal, limit value per VDE 0100 Riso
• RLO LED for dangerous contact voltage (when switched off)
• LCD symbol for external voltage
• Battery level display
• Special functions
• Data storage in the instrument, 50.000 objects
• Discharge capacitive devices under test
• Safety shutdown (VBatt < 8 V)

Features

• Charging socket, RS232 and USB interface
• Measuring categories CAT II 1000V, CAT III 600V
• Measuring category CAT III 600V, CAT IV 300V
• Integrated 10 MΩ test resistor
• DAkkS calibration certificate

Applications

The insulation measuring instruments are suitable for the following tasks:

• Measurement of insulation resistance at voltage-free devices and systems, up to 1000V
• Testing of the resistance of earthing conductors, protective conductors and equipotential bonding
• Checking of test objects for the absence of voltage
• Testing of electrostatic discharge capacity at floor coverings (using shielded measurement cables) – EN 1081
• With the 1 mA test per DIN VDE 0845/EN 61645, the instrument also allows to perform on-site tests of the response voltage of overvoltage components (varistors, Zener diodes, etc.) of requirement categories B and C / SPD Type 2 and 3) and to evaluate the test results in accordance with manufacturer‘s data.
