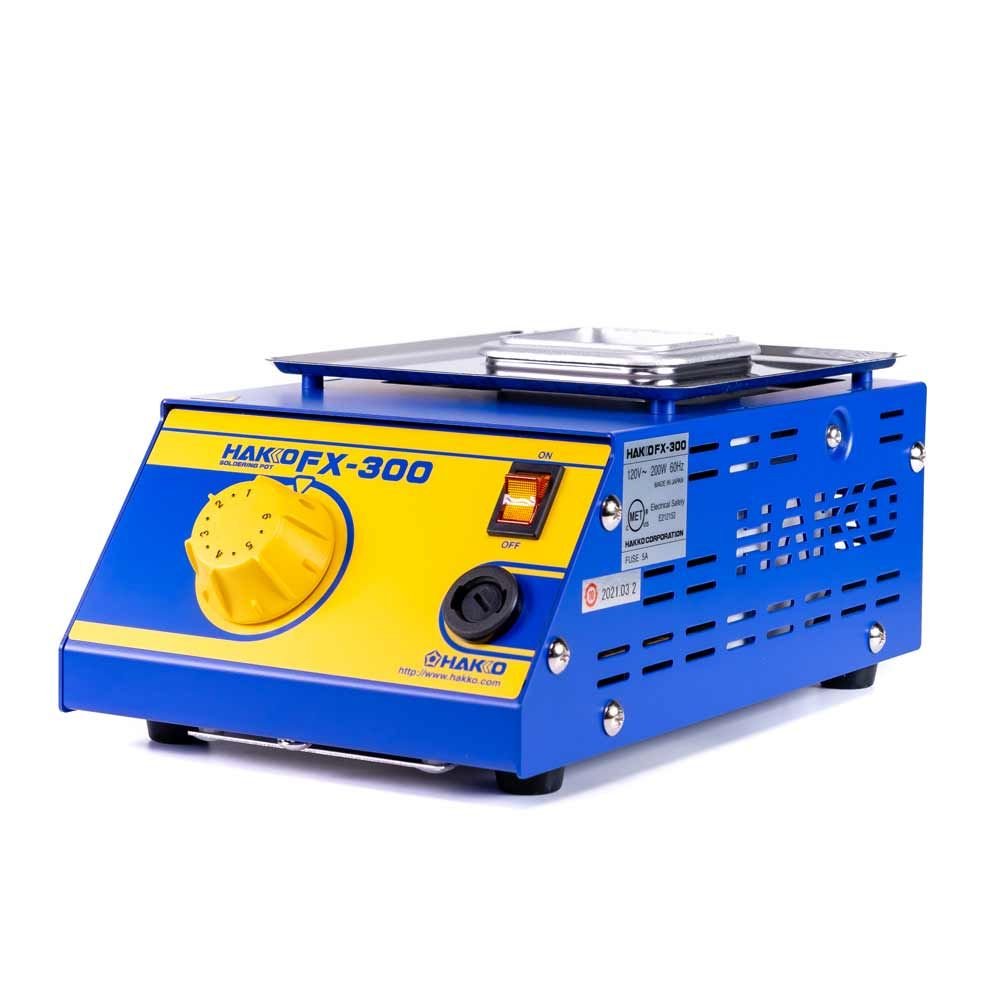

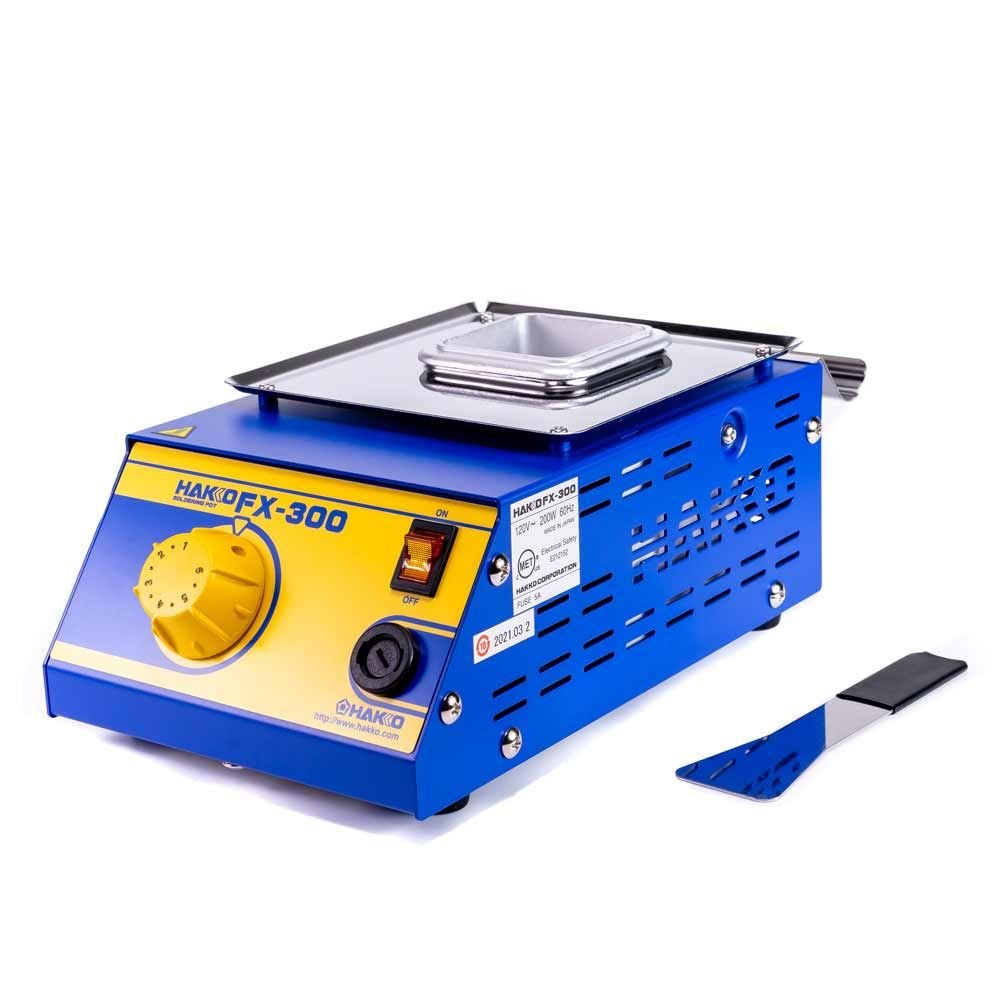

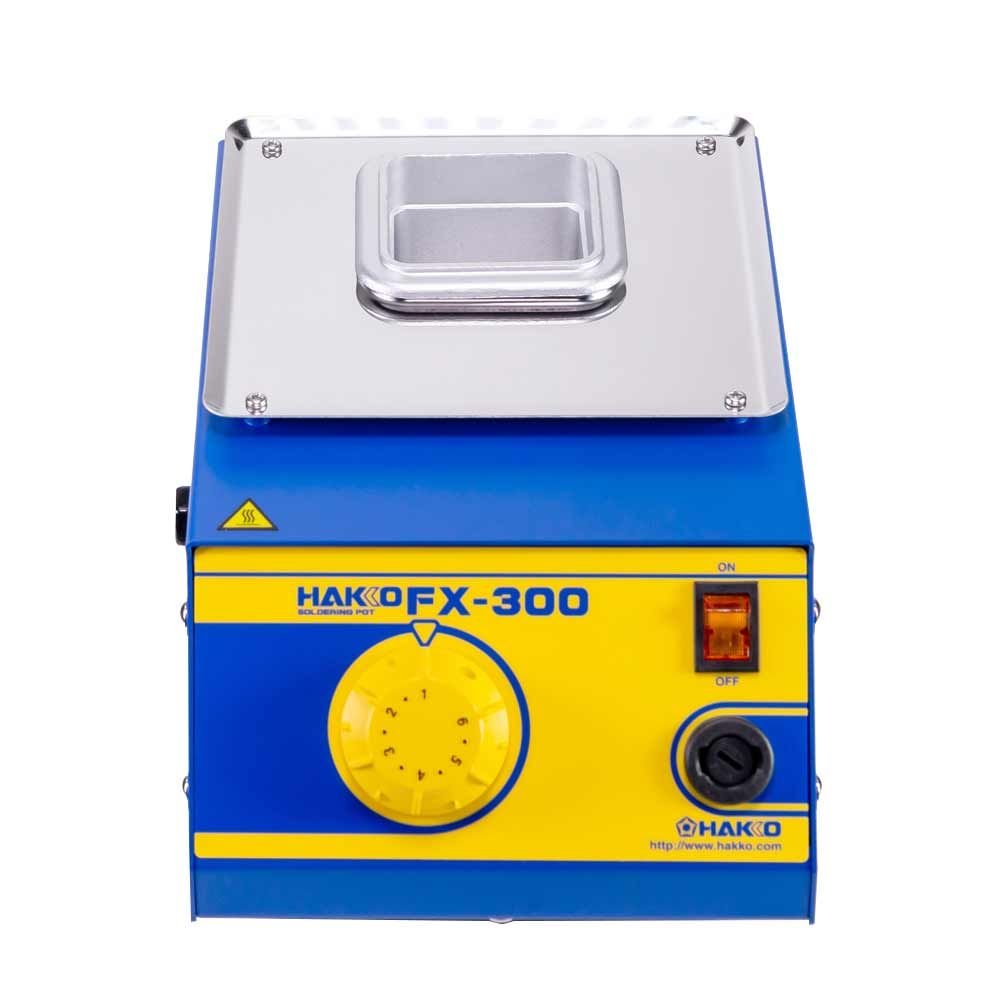

Hakko FX300-03 – Analog Soldering Pot

• Analog functionality with variable temperature control

• Easy crucible replacement
• Accommodates two crucible sizes – 50x50mm and 75x75mm
• Optional extended-life crucibles available with special coating
• Unit comes with a 50x50mm crucible (A1517)

The HAKKO FX-300 Analog Soldering Pot features analog functionality and a rugged ceramic heating element. This soldering pot is lead-free compatible and can accommodate two crucible sizes.

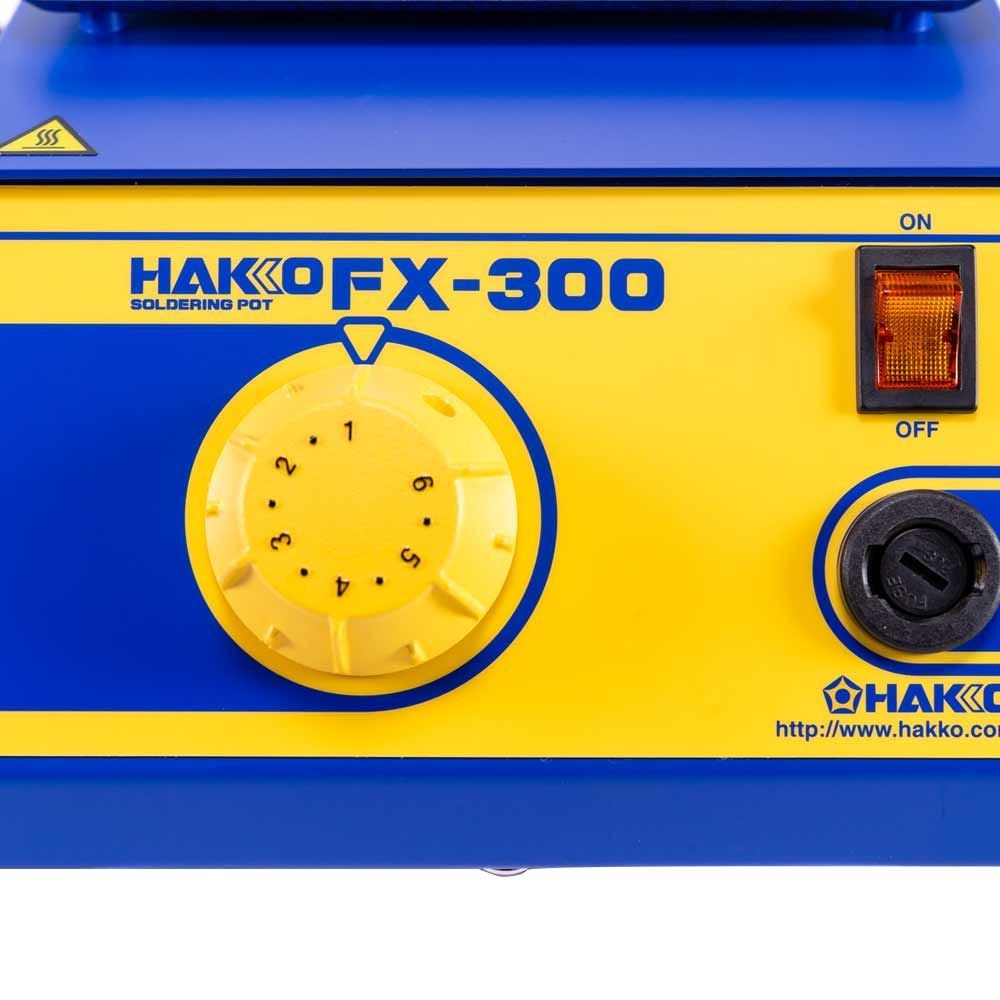

Operation is as simple as turning the unit on and selecting the desired heat setting with the dial on the face of the unit. The FX-300 does not include a built-in timer for auto-shutoff and does not have selectable settings for crucible dimension or solder type.

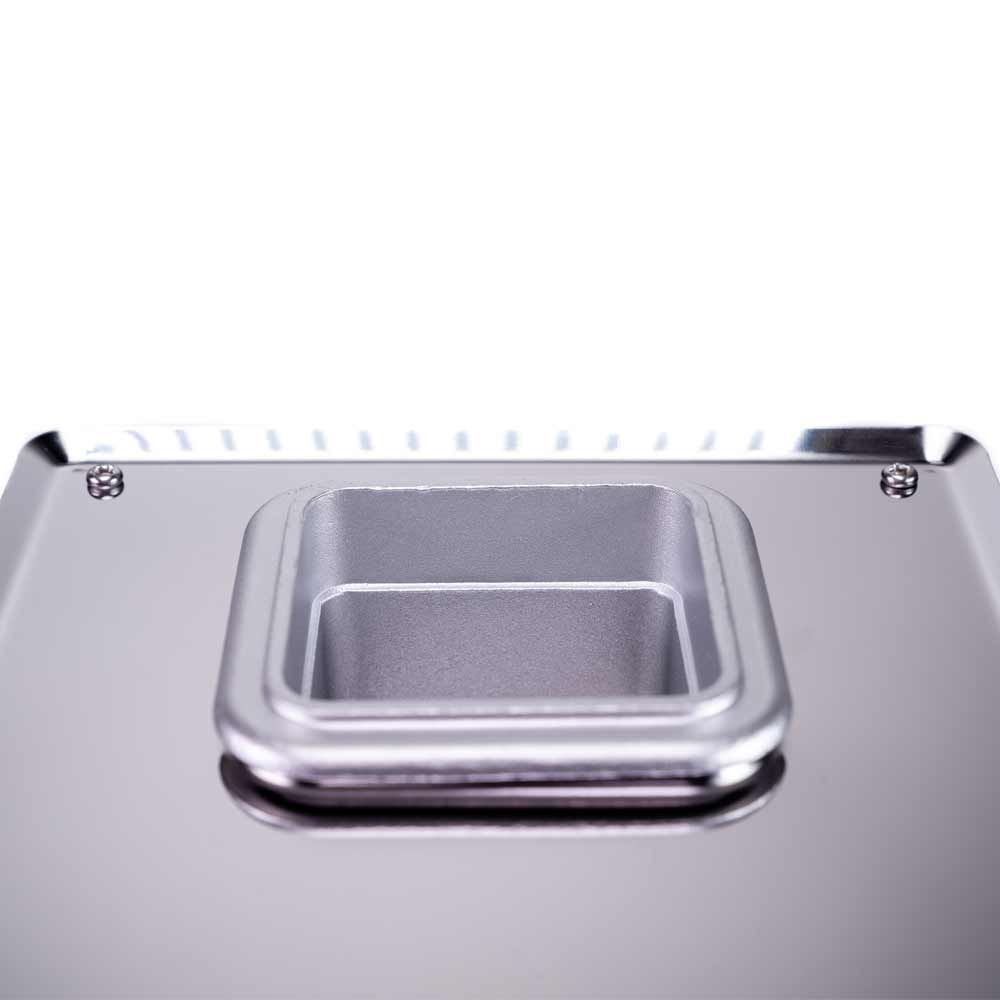

The FX-300 can accommodate two crucible sizes – 50x50mm and 75x75mm. Hakko also offers an extended life version for both models containing a specially treated coating. The FX-300 comes with a 50x50mm crucible (part number A1517).

Please note, the temperate range for the FX-300 will vary depending on the size of the crucible being used:

• 50x50mm
• 400-840°F / 200-450°C
• 75x75mm
• 400-720°F / 200-380°C

Crucible part numbers are as follows:

• A1517 – 50x50mm
• A1539 – 50x50mm (extended life)
• A1518 – 75x75mm
• A1540 – 75x75mm (extended life)
