Hakko FX8005-82 – Nitrogen Handpiece with Stand for FX-805 Ultra Heavy Duty Station

• Nitrogen handpiece with stand for FX-805 ultra heavy-duty station
• Compatible with T33 and T37 tips
• Tips and nozzles sold separately
• 390 watt power consumption
• Nitrogen generator and controller required for operation (sold separately)

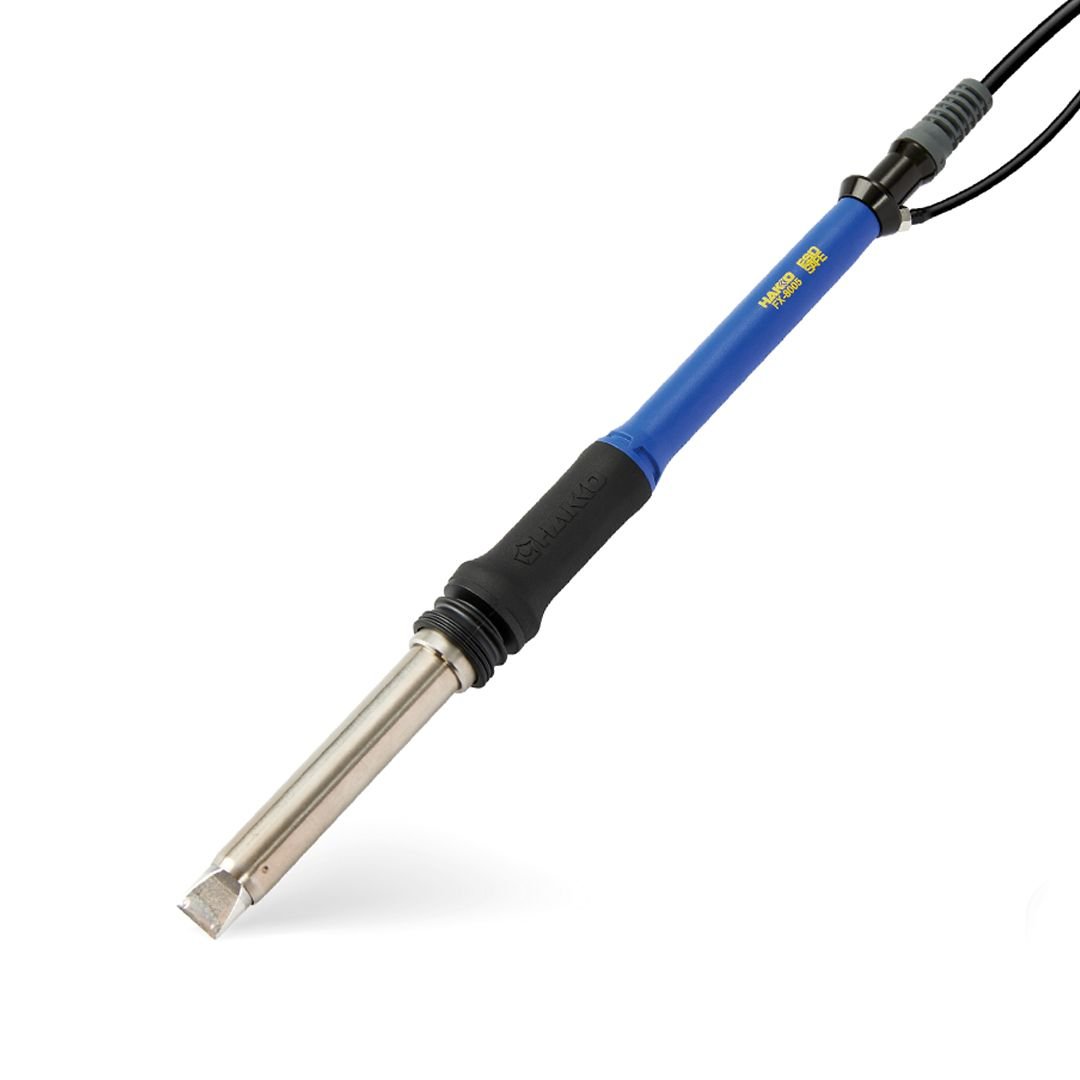

The FX-8005 Soldering Iron is the Nitrogen handpiece for the UHD FX-805 Soldering Station.

Hakko offers two versions of this iron:

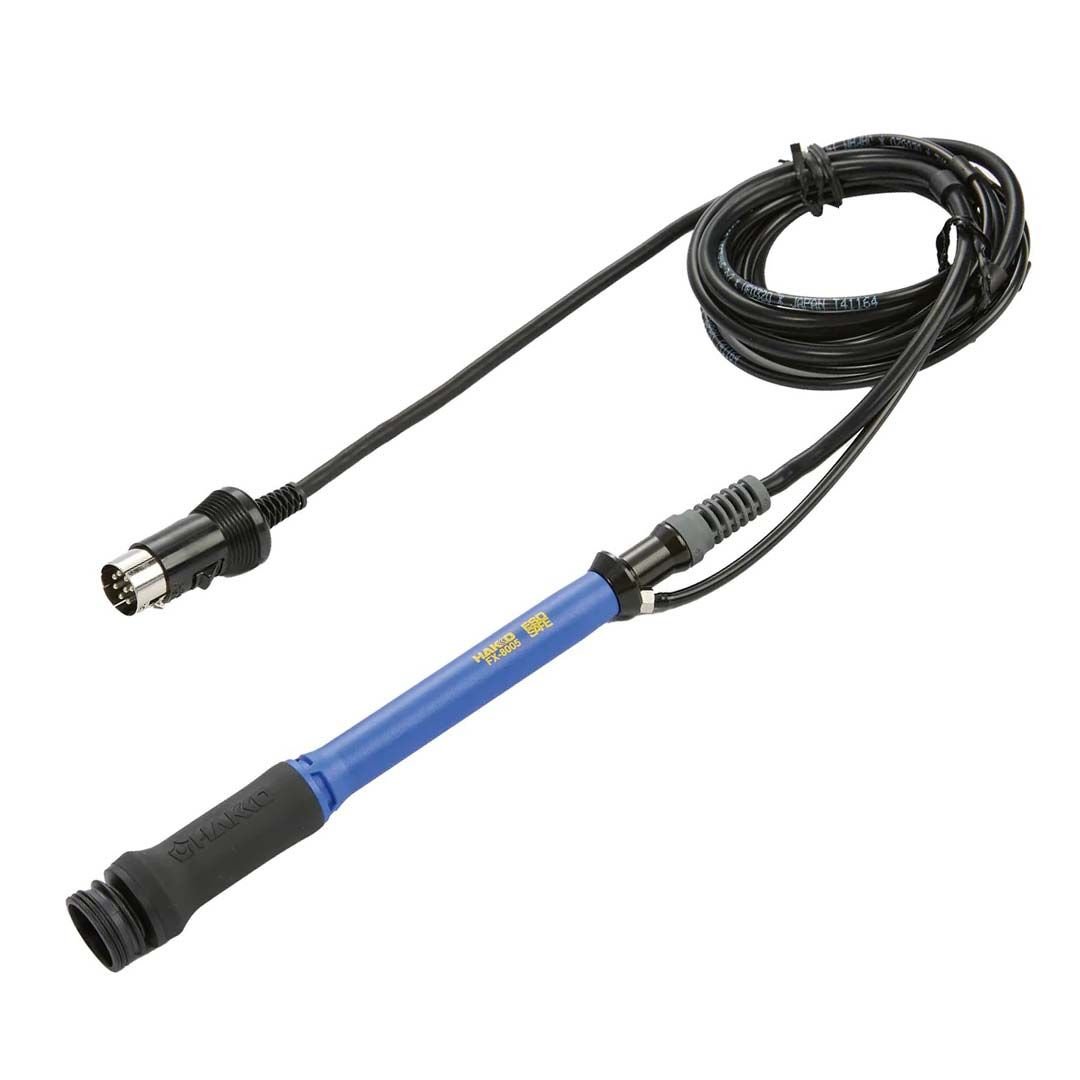

• FX8005-81 – handpiece only

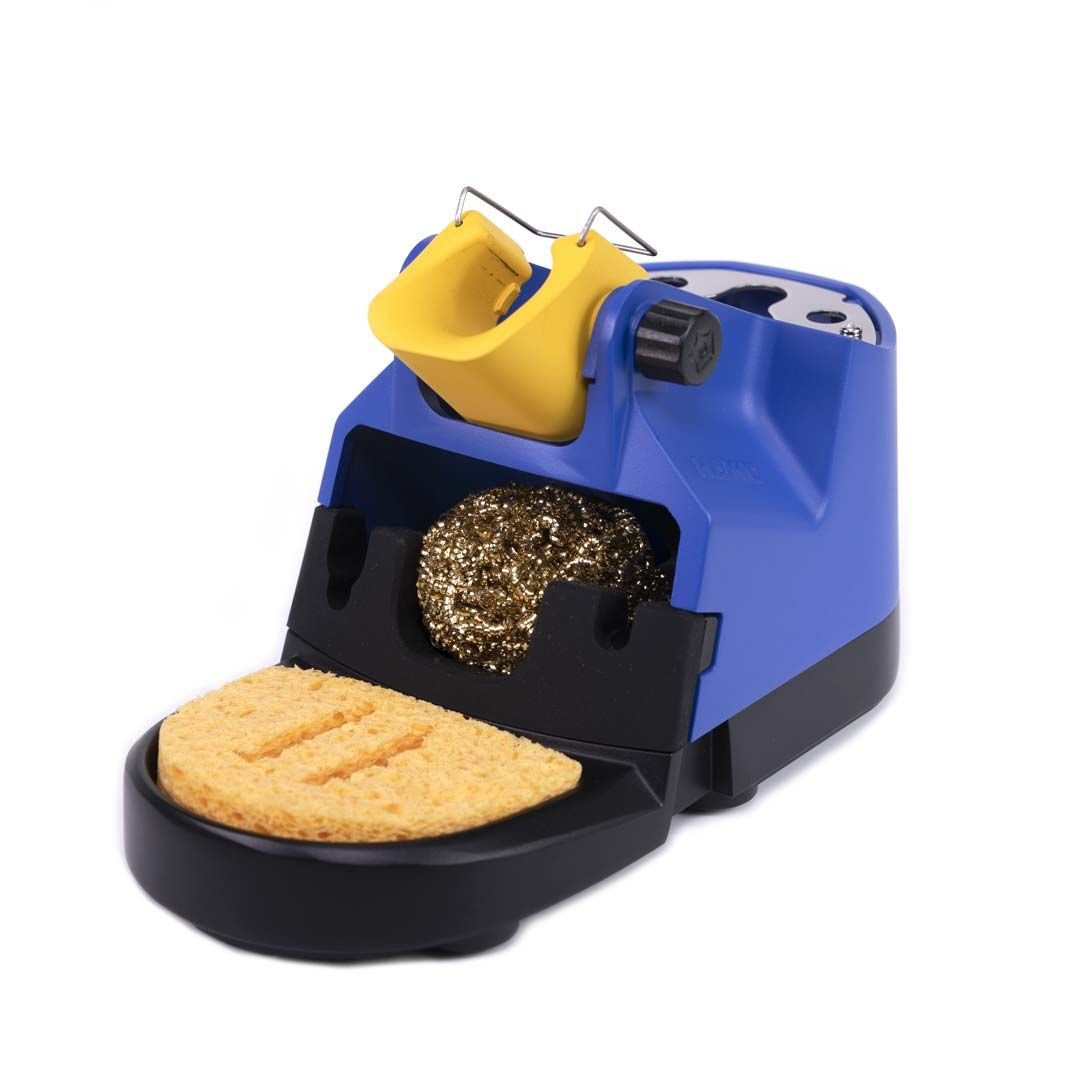

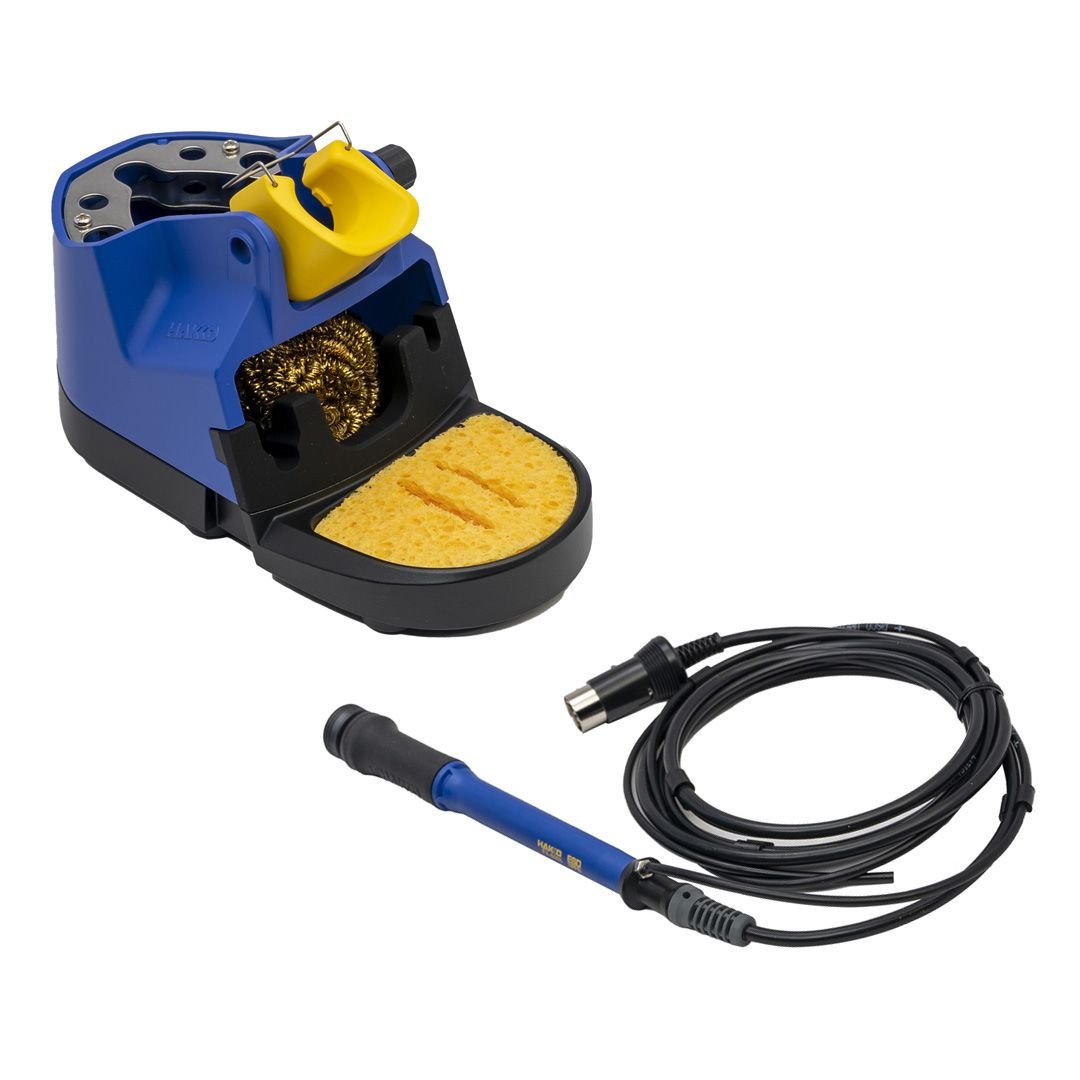

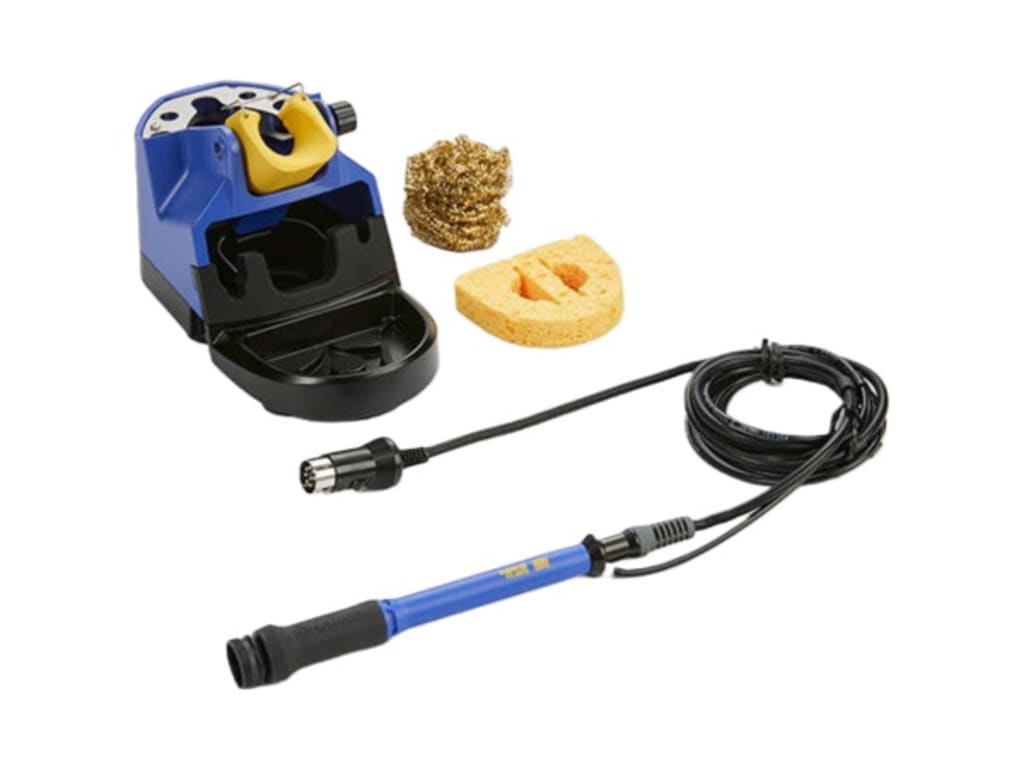

• FX8005-82 – handpiece, stand, sponge and cleaning wire

The FX-8005 is compatible with T33 and T37 tips. The T37 series features a new, 390W internal heater and have a sensor system placed closer to the end of the tip to improve response. T33 tips feature a 260W heater and are available in several sizes, including a series of slim tips for use in narrow spaces.

Please note, tips are sold separately.

Information on each tip series, as well as compatible nitrogen nozzles can be found in the links below:

• For information on T37 tips, please click here
• For information on T33 tips, please click here

The HAKKO Nitrogen (N2) Soldering System is the ideal solution for all your lead-free hand-soldering applications. The bench-top FX-780 Nitrogen Generator creates nitrogen gas from filtered, dry compressed air and the FX-791 Nitrogen Controller delivers it efficiently and uniformly to the nitrogen-compatible soldering iron and soldering area.

Please note, nitrogen generation and control products are sold separately.

Hakko offers two nitrogen generators with differing output levels:

• FX-780
• 1.5 L/min
• FX-781
• 2.4 L/min

The FX-791 nitrogen controller is used to control the flow of nitrogen and adjust according to the tip shape being used.

Please click here for more information on Hakko nitrogen products.
