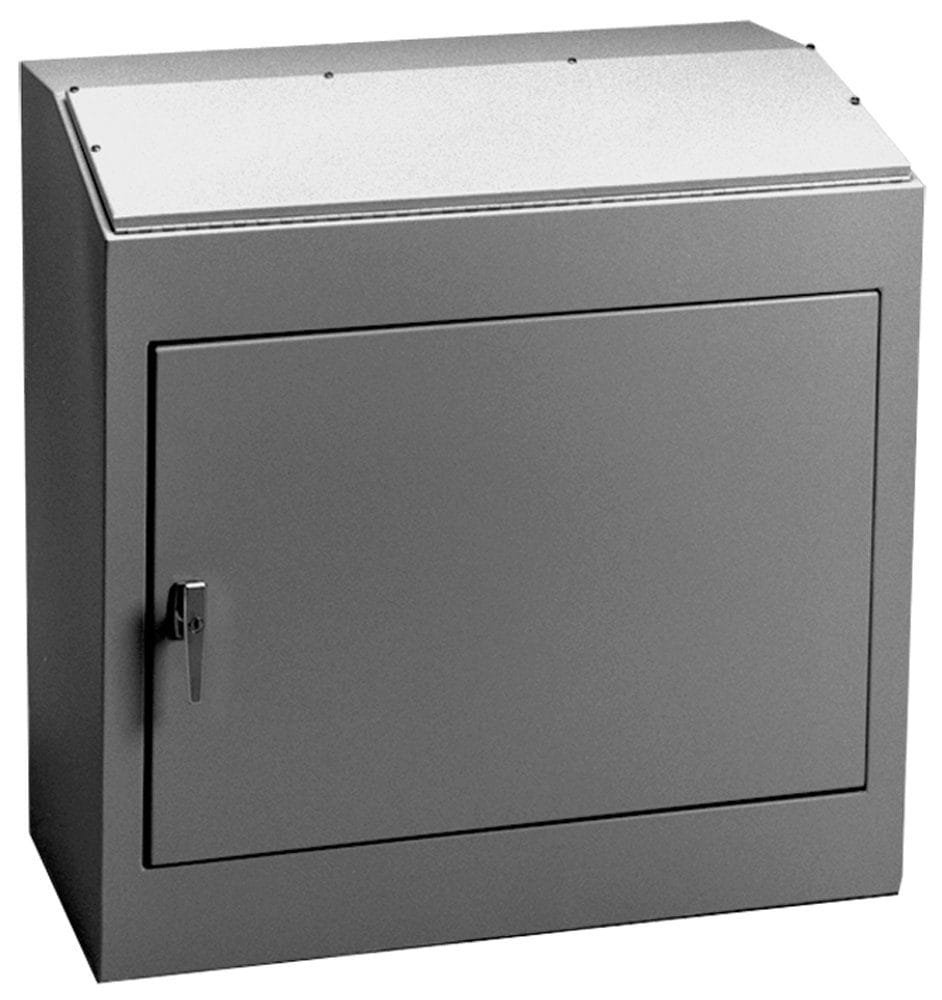

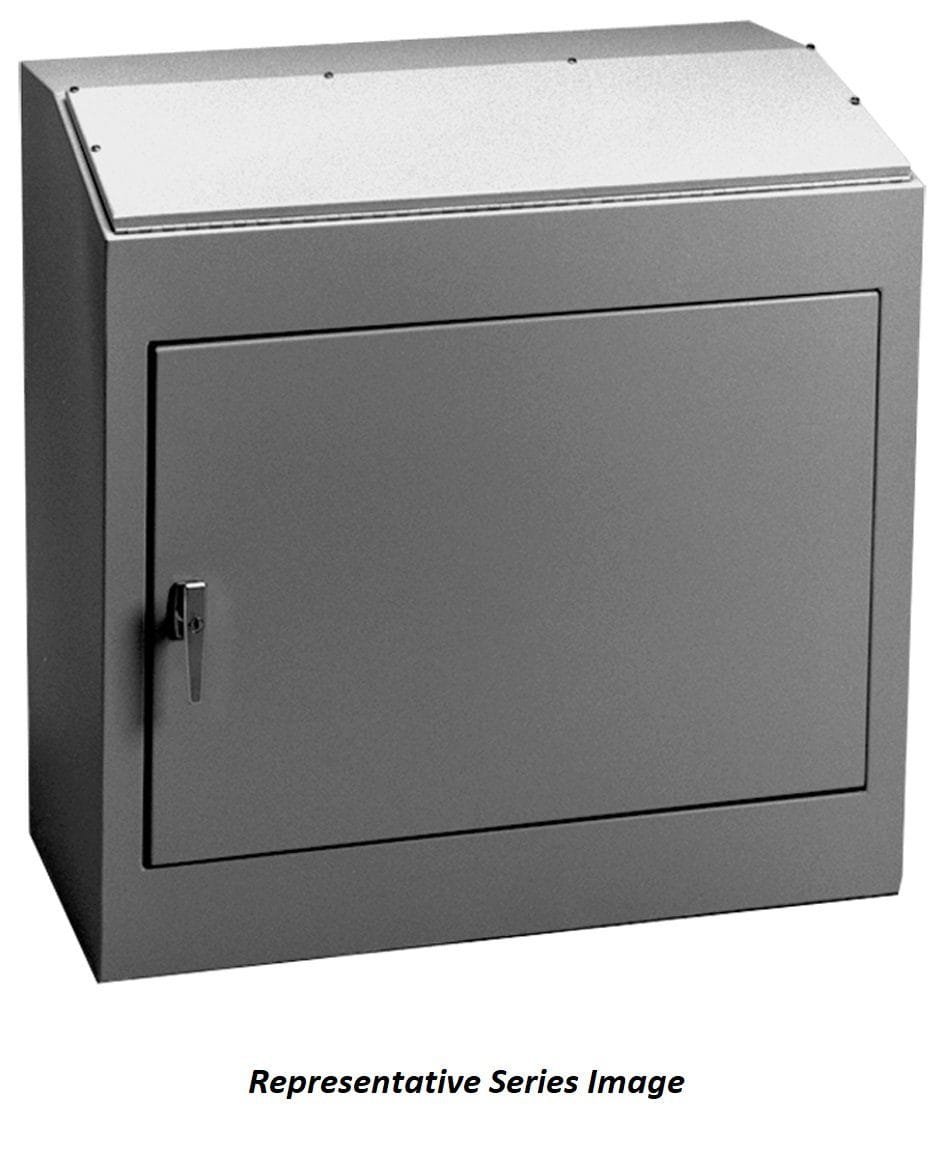

Hammond 1472 – Type 12 Modular Console Cabinet; Sloped Front

Standards

• UL 508A Type 12
• CSA Type 12
• Complies with
• NEMA Type 12
• IEC 60529, IP65

Application

• Designed to house electrical, electronic, hydraulic, or pneumatic controls and instruments.
• Heavy-duty construction provides protection from dirt, dust, oil, and water. Sloping front control and instrument panels provide an ideal surface for mounting operator controls or instrumentation.
• Interior mounting is provided for with a removable inner panel located on the rear of the basic console.

Base Console Construction

• Formed 14-gauge steel.
• Smooth, continuously welded seams, without knockouts, cutouts, or holes.
• Sloped front instrument panel is continuously hinged on the front (bottom) edge and secured with captive panel screws, threaded into sealed wells.
• Front instrument panel may be removed by pulling the hinge pin.
• Flush doors are secured with a three-point latch and operated with a key locking automotive type handle.
• Two door model has overlapping front doors, with three-point latch on right door.
• Oil resistant gaskets are permanently secured.
• Includes a removable inner panel formed from 12-gauge steel, mounted to the back of the enclosure interior.
• Collar studs are provided for mounting inner panels.
• A bonding stud is provided on the door and a grounding stud is provided in the enclosure for each door.
• A literature pocket is provided.

Turret Construction

• Sloping instrument panel and vertical rear access are completely removable.
• Captive panel screws fasten into sealed wells.

Writing Surface Construction

• Formed and welded from 14-gauge steel.
• Fastens to the front of the console with screws

Finish

• Cover and enclosure are phosphatized and finished in ANSI 61 gray powder coating on the outside and on the inside.
• Removable inner panels are finished in white powder coating
