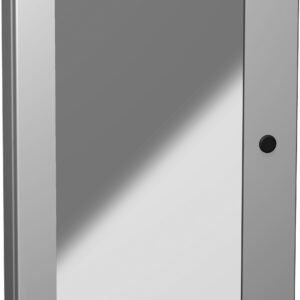

Hammond 1481WDH1418 1481WDH Series Deep Hinged Window Kit, Viewing Area 8 x 9 – Steel/Gray
31 people are viewing this product right now
Original price was: $814.48.$509.67Current price is: $509.67.
Shipping calculated at checkout.
Estimated delivery:5 days
Window Kit N4, Deep Hinged – Viewing Area 8 x 9 – Steel/Gray
- Window Kit N4, Deep Hinged – Viewing Area 8 x 9 – Steel/Gray
- Extra deep kits are designed to provide protection and easy access to components and equipment installed inside an enclosure
- Maintain environmental protection level of Type 4, 4X and 12 as noted
- Frame is 14 guage mild steel or 316L stainless steel
- Quarter turn latch for easy access
- 2.5 inches of extra usable depth
- Oil resistant neoprene gasket ensures a watertight seal
- Can be either left or right hand hinged
- Window is 0.25″ thick, UV Resistant Polycarbonate
- Conveniently sized to allow mounting on the door of any Hammond Wallmount Series enclosure, or in any other Hammond enclosure with a suitable mounting surface
- Mounting hardware and template are included
- Finished in ANSI 61 gray recoatable powder or natural brushed stainless steel
Guarantee Safe and Secure Payment Checkout
Description

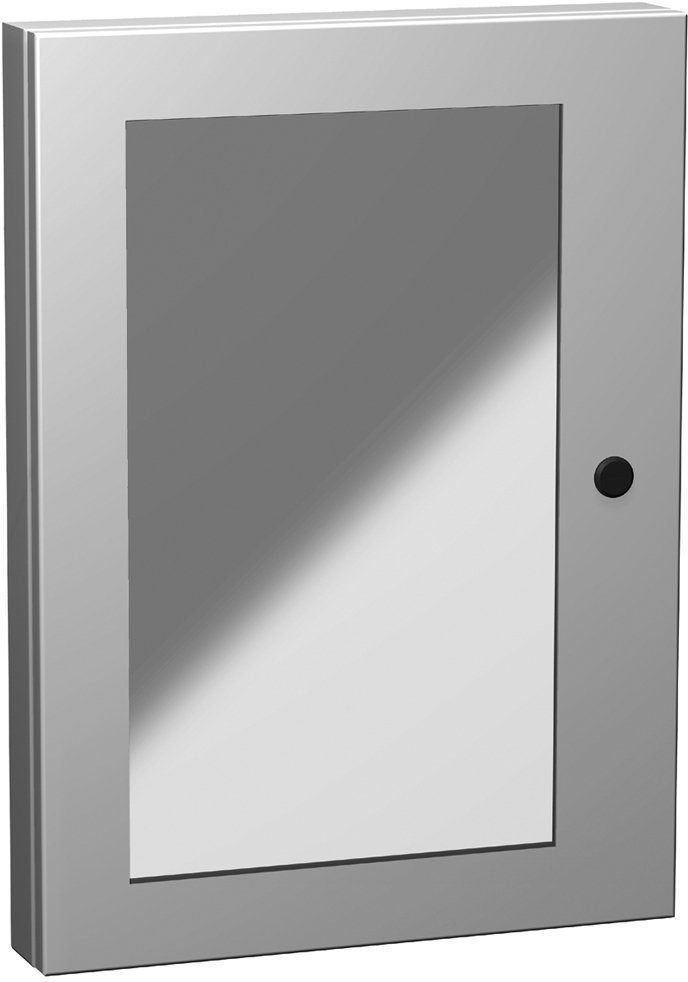

Hammond 1481WDH Series Deep Hinged Window Kits
Window Kit N4, Deep Hinged – Viewing Area 8 x 9 – Steel/Gray
- Maintain environmental protection level of Type 4, 4X and 12 as noted
- Frame is 14 guage mild steel or 316L stainless steel
- Quarter turn latch for easy access
- 2.5 inches of extra usable depth
- Oil resistant neoprene gasket ensures a watertight seal
- Can be either left or right hand hinged
- Window is 0.25″ thick, UV Resistant Polycarbonate
Units shown: inch.
1 UL/ CSA Type 12 and Type 4
2 UL/ CSA Type 12, Type 4 and Type 4x
| Overall Dimensions | Viewing Area | Latch | Maximum | |||||
| Part No. | Material | A | B | C | D | Qty | Cut-Out Size | |
| 1481WDH1418¹ | Steel | 12.19 | 14.56 | 8.00 | 9.17 | 1 | 9.19 | 11.56 |
| 1481WDH1612¹ | Steel | 14.19 | 8.14 | 10.00 | 2.75 | 1 | 11.19 | 5.14 |
| 1481WDH2016¹ | Steel | 18.19 | 12.14 | 14.00 | 6.75 | 1 | 15.19 | 9.14 |
| 1481WDH2416¹ | Steel | 22.19 | 12.14 | 18.00 | 6.75 | 1 | 19.19 | 9.14 |
| 1481WDH2420¹ | Steel | 22.19 | 16.14 | 18.00 | 10.75 | 1 | 19.19 | 13.14 |
| 1481WDH2430¹ | Steel | 22.19 | 26.14 | 18.00 | 20.75 | 1 | 19.19 | 23.14 |
| 1481WDH3024¹ | Steel | 28.19 | 20.14 | 24.00 | 14.75 | 2 | 25.19 | 17.14 |
| 1481WDH3624¹ | Steel | 34.19 | 20.14 | 30.00 | 14.75 | 2 | 31.19 | 17.14 |
| 1481WSSDH1418² | Stainless Steel | 12.19 | 14.56 | 8.00 | 9.17 | 1 | 9.19 | 11.56 |
| 1481WSSDH1612² | Stainless Steel | 14.19 | 8.14 | 10.00 | 2.75 | 1 | 11.19 | 5.14 |
| 1481WSSDH2016² | Stainless Steel | 18.19 | 12.14 | 14.00 | 6.75 | 1 | 15.19 | 9.14 |
| 1481WSSDH2416² | Stainless Steel | 22.19 | 12.14 | 18.00 | 6.75 | 1 | 19.19 | 9.14 |
| 1481WSSDH2420² | Stainless Steel | 22.19 | 16.14 | 18.00 | 10.75 | 1 | 19.19 | 13.14 |
| 1481WSSDH2430² | Stainless Steel | 22.19 | 26.14 | 18.00 | 20.75 | 1 | 19.19 | 23.14 |
| 1481WSSDH3024² | Stainless Steel | 28.19 | 20.14 | 24.00 | 14.75 | 2 | 25.19 | 17.14 |
| 1481WSSDH3624² | Stainless Steel | 34.19 | 20.14 | 30.00 | 14.75 | 2 | 31.19 | 17.14 |
Product General Attributes | |
|---|---|
| Product Height | 13.00 IN |
| Product Length | 3.00 IN |
| Product Width | 15.00 IN |
| Country of Origin | Canada |
| Shipping Height | 13.00 IN |
| Shipping Length | 3.00 IN |
| Shipping Width | 15.00 IN |
You must be logged in to post a review.
| Dimensions | 3 × 15 × 13 in |
|---|
