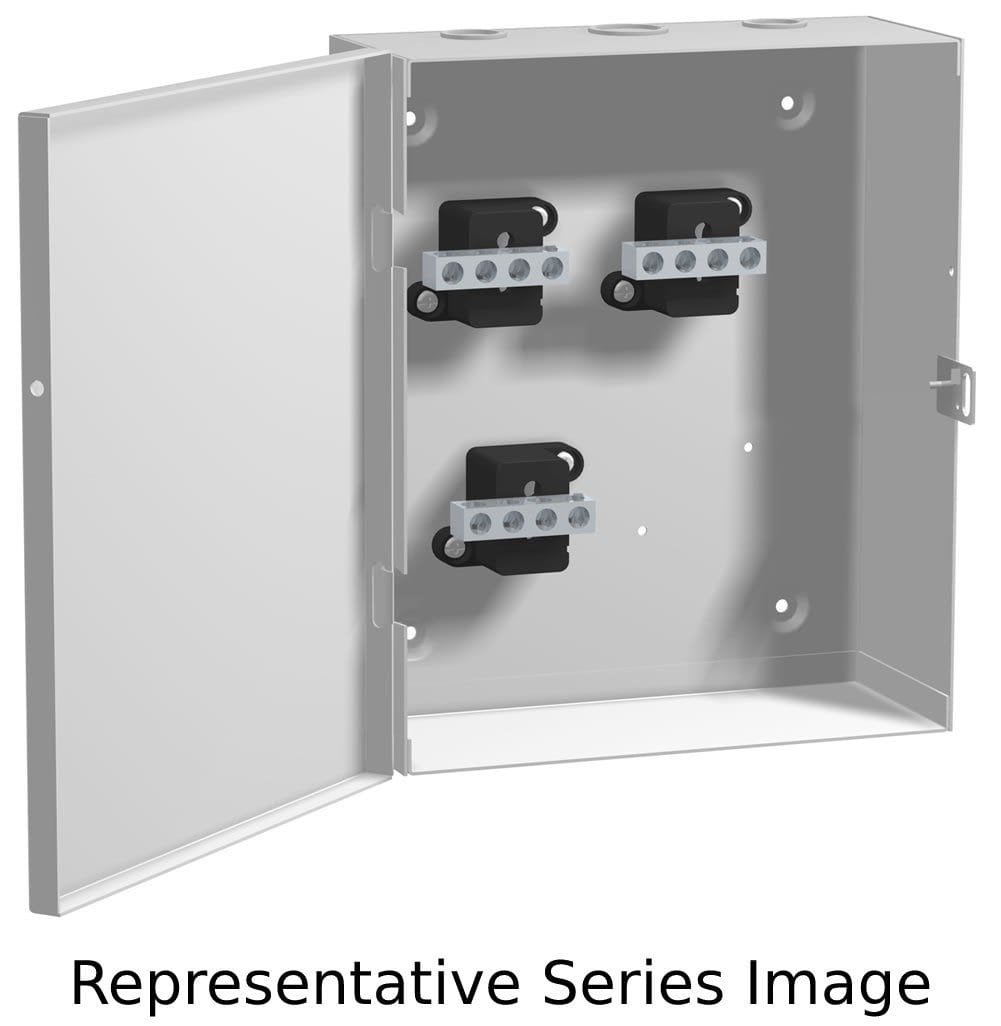

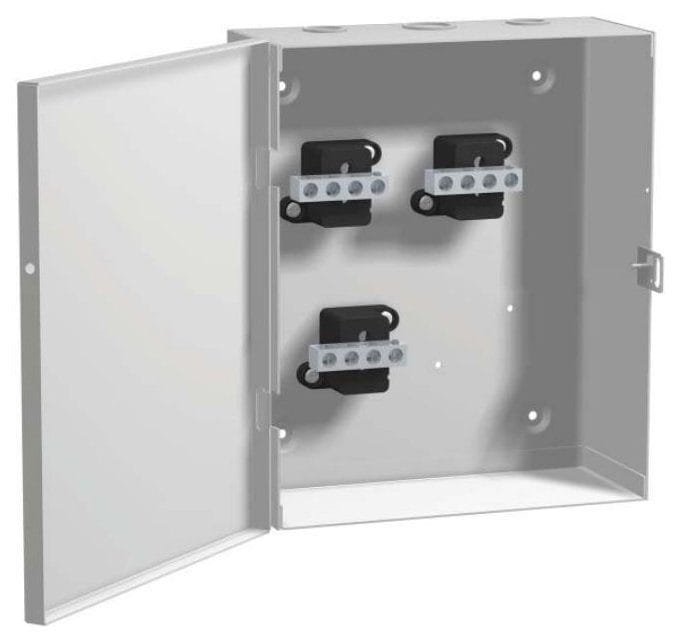

Hammond CSB – Type 1 Mild Steel Splitter Box; Hinged Door with Screw

Standards

• CSA Type 1
• Complies with
• IEC 60529, IP20

Application

• The splitter boxes are designed for the indoor distribution of up to 600A (max) service using either 3 or 4 wires. 75°C conductor ampacity permitted.

Construction

• Formed and spot welded from 14- or 16-gauge steel.
• Factory-installed splitter blocks – 3 or 4-wire option. An empty box without splitter blocks is also offered.
• Series of knockouts on each side.
• Padlocking hasp.

Finish

• Enclosure and cover are finished in ANSI 61 gray powder coating.
