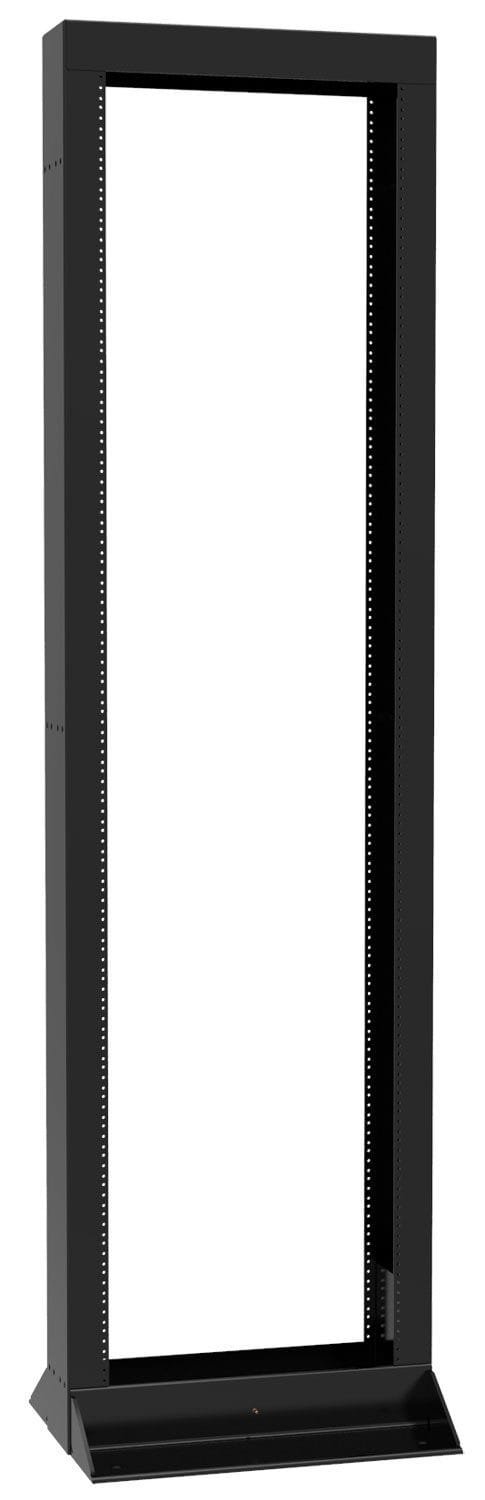

Hammond DRZ477 44U 2-Post Rack Seismic

Name: Hammond DRZ477 44U 2-Post Rack Seismic - NESTES Instruments
SKU: Hammond DRZ477
Price: 774.99 USD
Availability: InStock

Brand:

Please, activate Wishlist option to use this widget.

Please, activate Compare option to use this widget.

31 people are viewing this product right now

Original price was: $1,052.70.Current price is: $774.99.

Shipping calculated at checkout.

Estimated delivery:3 days

44U 2-POST RELAY RACK SEISMIC

44U 2-Post Rack Seismic
Rugged design engineered to perform in the most critical seismic environments.
Increased overall width of 22.75 inches provides additional side-to-side load strength.
EIA-310-D compliant 10-32 front and rear tapped (6.00” deep) rails with 19” mounting.
- Includes marked rack unit dividers to aid in equipment mounting.
Two (2) sets of side mounting holes on side of rack allows for Hammond cable managers to be mounted facing front and rear.
Can also be used in ganging racks together.
Includes two (2) pairs of integrated 10-32 ground studs, spaced 5/8” apart. Stud pairs are conveniently at both ends of the rack. The upper location is centered inside the upper channel. The lower location is centered on the front base of the rack. This upgrade ensures a secure and easy ground lug attachment.
Includes top bracket mounting holes compatible with top cable accessories.
Includes large base for freestanding support of equipment.
Finished in smooth black powder paint.

SKU: Hammond DRZ477 EAN: 623980412221 Tags: Commercial Enclosures, Enclosures and Boxes Categories: Commercial Enclosures

Feel free to Get in touch

Guarantee Safe and Secure Payment Checkout

Constructed in 10-gauge steel (rails) reinforced with structural angle base for maximum structure.
UL Listed 2416 rated for up to 2,000 lbs (907 kg) static load rating.
Independently tested and certified to exceed established Seismic Zone 4 NEBS™ Telcordia® GR-63-CORE testing standards.
- Dynamic (seismic) suggested load capacity of 800 lb. of equipment installed and 50 lb. of simulated cable weight on the top when secured using C4K-Z4 seismic bolt down kit.
TAA Compliant.
RoHS Compliant.
Manufactured in North America.
Additional sizes also available.
