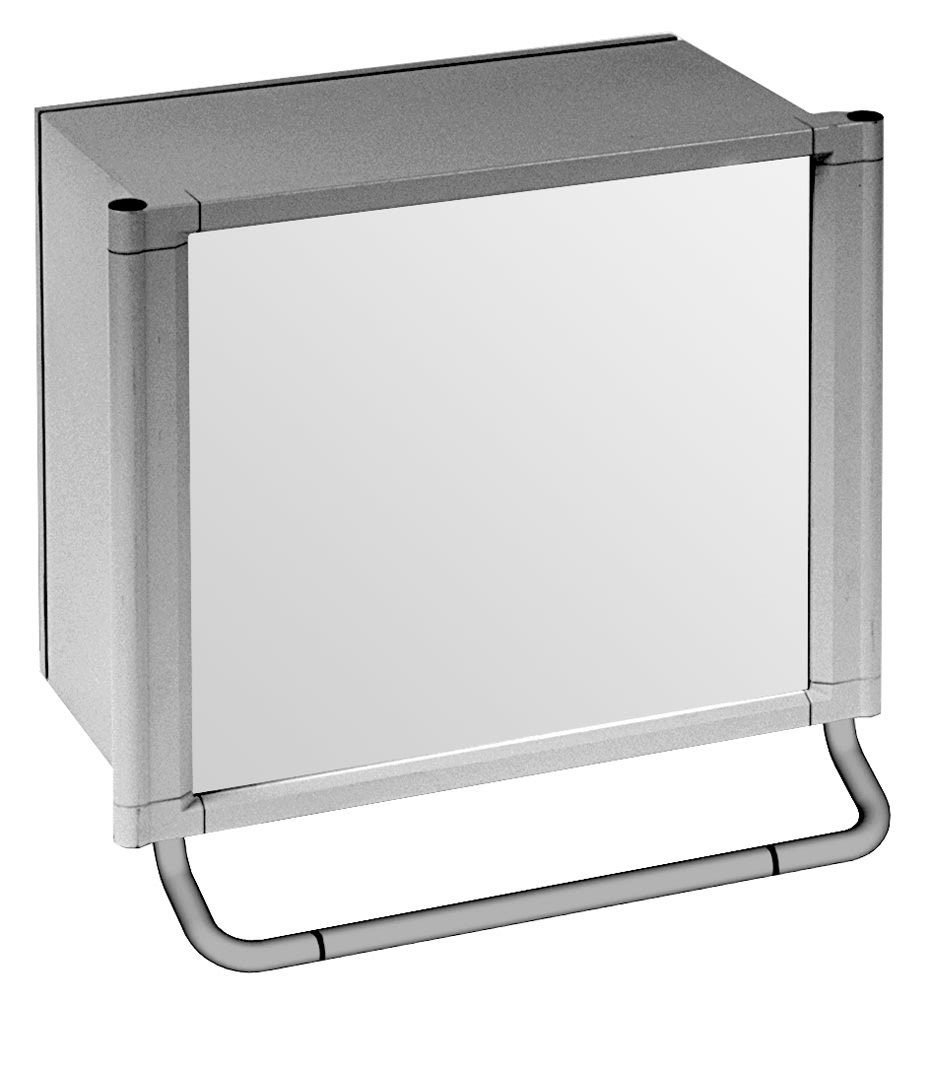

Hammond ECP – Eclipse Command System – NEMA 12; Command Enclosure

Standards

• UL 508A Type 12
• CSA Type 12
• Complies with
• NEMA Type 12 and 13
• IEC 60529, IP54

Application

• Designed to enclose electronic controls, instruments, and components in indoor environments where dirt, dust, oil, and water may be present.
• Ideal for use with suspension systems.
• Multiple mounting provisions and full front mounting space provide for an ideal operator interface.
• Smooth flush surfaces and attractive finishes compliment high-tech equipment.

Construction

• Formed from 16-gauge steel.
• Smooth, continuously welded seams ground smooth.
• Door stiffeners are designed to also permit additional mounting options.
• Formed lip on enclosure to exclude flowing liquids and contaminants.
• Reversible rear door is secured with slotted quarter-turn fasteners.
• Door frames have zinc die-cast corners with extrusion-pressed aluminum profiles.
• Door front panels are 3mm aluminum.
• Oil-resistant gaskets are permanently secured.
• Bonding stud provided on door and grounding stud installed in the enclosure.
• Quarter-turn latches formed from mild steel.
• Formed steel hinge with stainless steel hinge pins.
• Fastening is recommended with optional Tara Plus or 50/80 suspension systems.
• Optional red handle easily mounts horizontally to the bottom of enclosure front frame. Order separately.
• Heavy-duty re-inforcing plate included.

Finish

• Finished in RAL 7040 gray powder coating.
• Door panel is natural aluminum.
