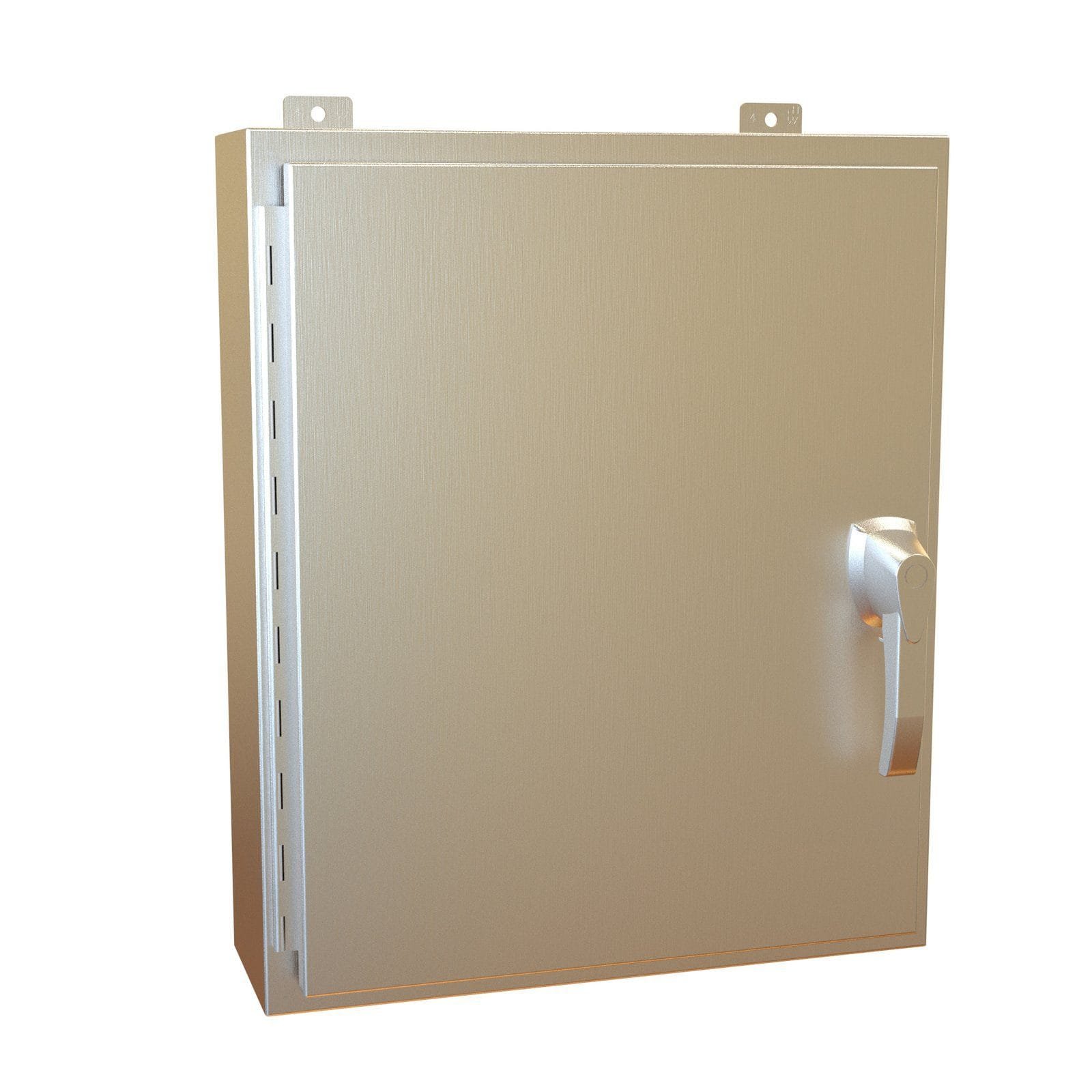

Hammond HWSSHK – Type 4X Stainless Steel Wallmount Enclosure; Hinge Door with Handle

• Standards
• UL 508A Type 3R, 4, 4X and 12
• CSA Type 3R, 4, 4X and 12
• Complies with
• NEMA 3R, 4, 4X, 12 and 13
• IEC 60529, IP 66

Application

• Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
• Provides high level of protection where equipment is hosed down or otherwise be exposed to wet conditions where corrosion is a serious problem.
• Ideal for processing plants, utility, outdoor municipal or petro chemical locations where easy yet secure access is required.

Construction

• Formed 14 gauge 304 or 316 stainless steel.
• Continuously welded seams ground smooth.
• Formed lip on enclosure to exclude flowing liquids and contaminants.
• 316 Stainless pad lockable handle with 3-point roller latching system secures door.
• Stainless steel continuous hinge on door may be removed by pulling the stainless-steel hinge pin
• Seamless poured-in place gasket.
• Collar studs provided for mounting inner panel.
• Bonding stud provided on door and grounding stud installed in enclosure.

Finish

• Cover and enclosure are natural stainless steel with smooth brushed finish
