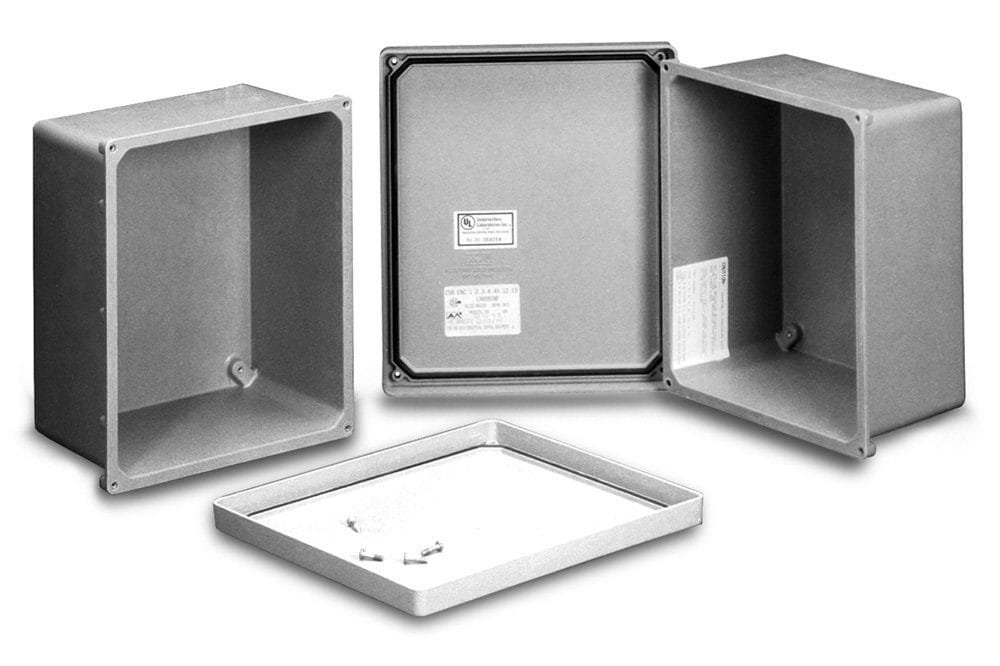

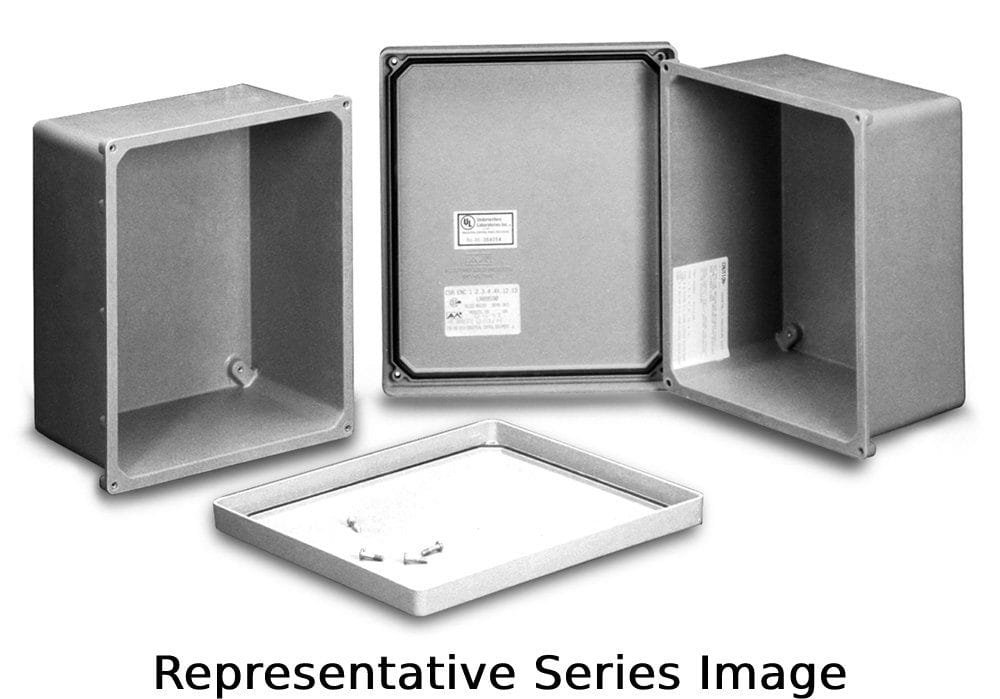

Hammond PJ – Type 4X Polyester Junction Box; Lift-Off Cover/Hinged Door with Screws
32 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:5 days
NoneNone
Guarantee Safe and Secure Payment Checkout
Description
Hammond PJ
Standards
- UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
- UL 508A Type 6P (see table)
- CSA Type 1, 2, 3, 4, 4X, 12 and 13
- CSA Type 6P (see table)
- Complies with
- NEMA Type 1, 2, 3, 4, 4X,12 and 13
- IEC 60529, IP66
Type 4X Polyester Junction Box; Lift-Off Cover/Hinged Door with Screws
Application
- Designed for use as instrument enclosures, electric, hydraulic or pneu¬matic control housings, electrical junction boxes or terminal wiring enclosures.
- Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
- Ideal in applications with high temperatures or highly corrosive environments.
Construction
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
- Enhanced UV inhibitors protect against outdoor weathering.
- Standard JIC sizes under 18″ x 16″.
- 10-32 threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware included.
- Cover is fastened with captive stainless-steel screws in threaded brass inserts.
- Captive oil resistant gasket provides a positive seal.
- Threaded brass inserts are provided for mounting feet to the rear of the enclosure.
- Stainless steel mounting brackets and hardware are provided for mounting feet to the rear of the enclosure.
- Operating temperatures between 130°C and -40°C (266°F to -40°F).
- Impact index of 6.78J (5 ft/lb).
- For corrosion resistance information, please refer to table in the Technical Information section.
Finish
- Fiberglass polyester material has a gray finish.
- Optional inner panels are available in white powder coated finished steel, unfinished aluminum, or Fiberglass.
| Lift-Off Cover Part No. | Hinged Cover Part No. | Enclosure (H) | Enclosure (W) | Enclosure (D) | Optional Inner Panel (H) | Optional Inner Panel (W) | Optional Inner Panel (Part No.) |
| PJ664¹ | PJ664H | 6.10 | 6.10 | 4.13 | 4.88 | 4.88 | 14R0505 |
| PJ864¹ | PJ864H | 8.00 | 6.12 | 4.13 | 6.75 | 4.88 | 14R0705 |
| PJ1084¹ | PJ1084H | 10.13 | 8.26 | 4.13 | 8.75 | 6.88 | 14R0907 |
| PJ1086¹ | PJ1086H | 10.13 | 8.26 | 6.13 | 8.75 | 6.88 | 14R0907 |
| PJ12106¹ | PJ12106H | 12.13 | 10.26 | 6.13 | 10.75 | 8.88 | 14R1109 |
| PJ12124¹ | PJ12124H | 12.13 | 12.13 | 4.13 | 10.75 | 10.88 | 14R1111 |
| PJ12126¹ | PJ12126H | 12.13 | 12.13 | 6.13 | 12.75 | 10.88 | 14R1111 |
| PJ14126¹ | PJ14126H | 14.13 | 12.26 | 6.13 | 12.75 | 10.88 | 14R1311 |
| PJ16148 | PJ16148H | 16.27 | 14.40 | 8.13 | 14.75 | 12.88 | 14R1513 |
| PJ18168 | PJ18168H | 18.40 | 16.40 | 8.13 | 16.88 | 14.88 | P1868 |
| PJ20168 | PJ20168H | 20.00 | 16.00 | 8.13 | 18.44 | 14.44 | P2068 |
