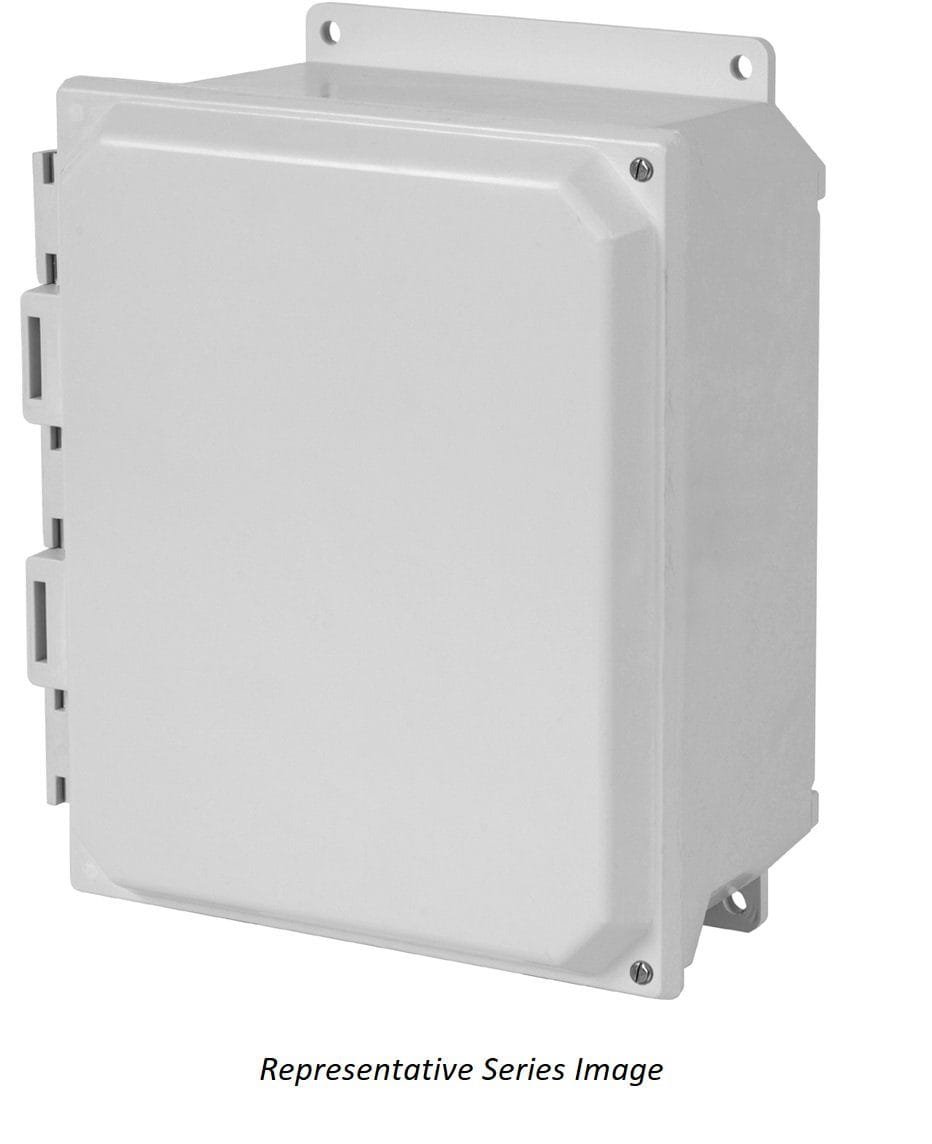

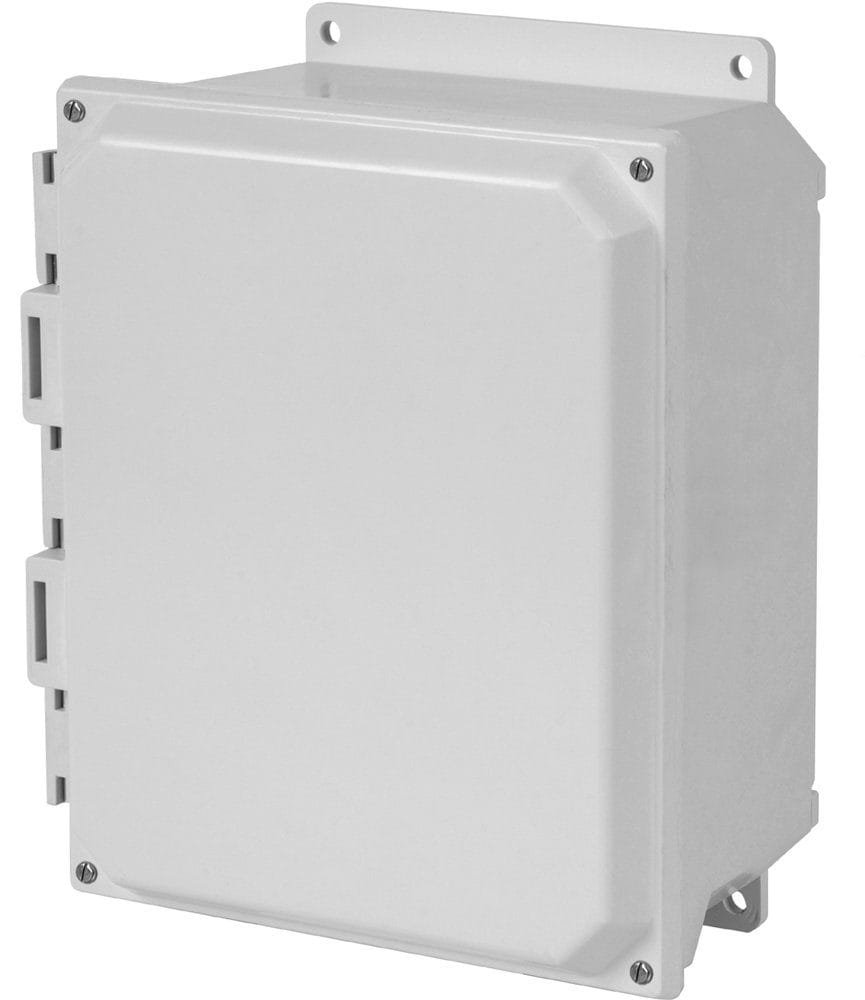

Hammond PJUHF – Type 4X Polyester Junction Box (Solid and Clear Cover); Continuous Hinge Door with Screws

Standards

• UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
• CSA Type 1, 2, 3, 4, 4X, 12 and 13
• Complies with
• NEMA Type 1, 2, 3, 4, 4X, 12 and 13
• IEC 60529, IP66

Application

• Designed for use as instrument enclosures, electric, hydraulic, or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
• Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
• Ideal in applications with high temperatures or highly corrosive environments.

Construction

• Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
• Enhanced UV inhibitors protect against outdoor weathering.
• Standard JIC sizes under 18″ x 16″.
• Threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included.
• Cover fastened with captive stainless-steel screws in threaded brass inserts.
• Enclosure available with clear Polycarbonate cover to 16″ x 20″.
• Molded hinge with stainless steel pin.
• Captive oil resistant gasket provides a positive seal.
• Available with Polycarbonate flange or foot mount brackets for multi-directional mounting.
• Operating temperatures between 130°C and -40°C (266°F to -40°F).
• Impact index of 6.78J (5 ft/lb).

Finish

• Fiberglass polyester material has a gray finish.
• Optional inner panels are available in white powder coated finished steel or unfinished aluminum, or Fiberglass.
