HellermannTyton 155-05800 – 1-Piece Cable Tie/Fir Tree Mount w/Disc, 6.0″L, 0.26 – 0.28″ Mounting Hole, PA66HIRHS, Black
13 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:3 days
1-Piece Cable Tie/Fir Tree Mount w/Disc, 6.0″L, 0.26 – 0.28″ Mounting Hole, PA66HIRHS, Black-Note:Price is for 1500 Units
- Color: Black
- Height: 0.33″
- Length: 6″
- Width: 0.19″
- Material: Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
- Thickness: 0.03″ – 0.12″ Panel Thickness
- Mounting Hole Diameter: 0.26-0.28″
- Tensile Strength: 50 lb./in.
- All-in-one bundling and fastening solution reduces costs and assembly time
- Disc feature provides anti-rattle protection in high-vibration applications
Guarantee Safe and Secure Payment Checkout
Description
HellermannTyton 155-05800
- Color: Black
- Height: 0.33″
- Length: 6″
- Width: 0.19″
- Material: Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
1-Piece Cable Tie/Fir Tree Mount w/Disc, 6.0″L, 0.26 – 0.28″ Mounting Hole, PA66HIRHS, Black

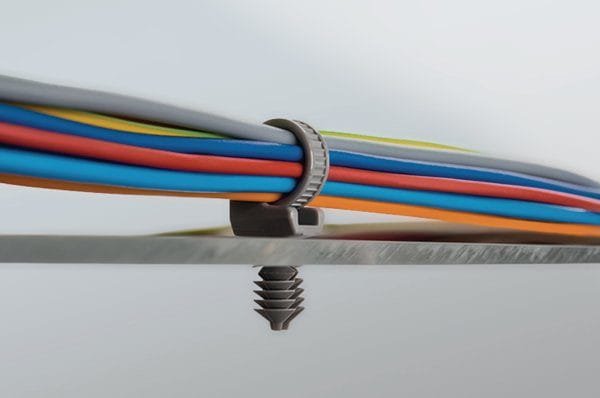

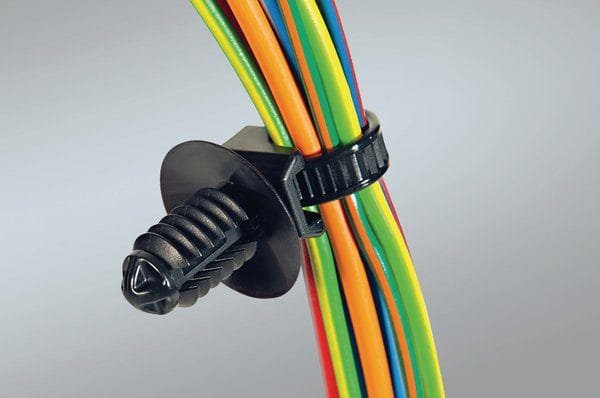

One-piece mounting ties offer a complete solution by both bundling and mounting wires, cables, and tubes. The fir tree mount provides a low insertion force with a high extraction force. Outside serrations on the cable, tie leave a smooth interior surface that’s gentler on sensitive wire insulation. The unique head design allows the cable tie to firmly hold bundles as small as .06″ diameter. The disc offers added protection against debris.
Application:
Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use have resulted in these parts being used in other industries, for example, aviation, switch gear manufacturing, and white goods manufacturing.
Electrical/Wire Ties Template | |
|---|---|
| Color | Black |
Product General Attributes | |
| Safety Approval | RoHS, UL |
| Product Height | 0.33 IN |
| Product Length | 6 IN |
| Product Width | 0.19 IN |
You must be logged in to post a review.
Manuals/Guides
Spec Sheets
| Dimensions | 6 × 0.19 × 0.33 in |
|---|
