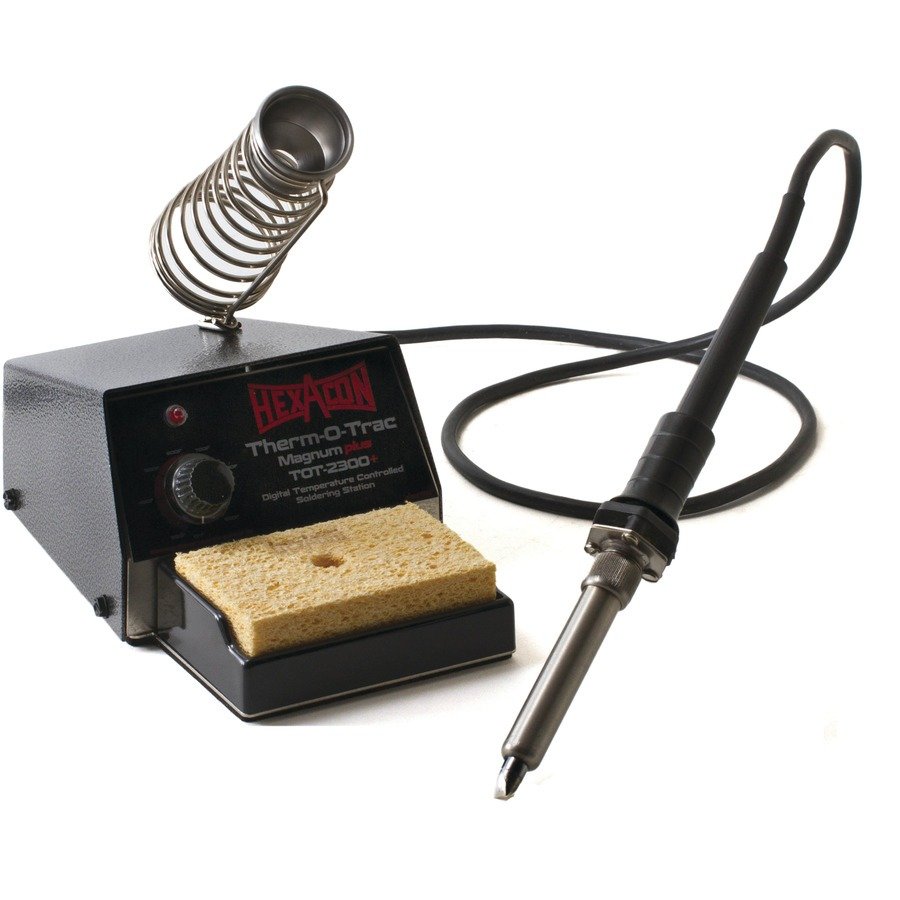

Hexacon TOT-2300+ – THERM-O-TRAC Soldering Station, 1/4″ x 1/2″, 525-850 °F, 120 V

• Temperature Range: 525-850 °F
• Input Voltage: 110/120 V
• Standard Tip: J802X
• Tip Point Size & Reach: 1/4″ x 1/2″
• Frequency Rating: 60 Hz

Hexacon TOT-2300+ may be adjusted for any soldering temperature between 350°F and 850°F and is designed for heavy thermal tasks. Anyone can produce a soldering station for light-duty tasks. TOT stations have great thermal mass and are designed to hold temperature and recover from heavy thermal loads quickly. Heat-up time may be slightly longer but when the thermal reserve and heat capacity is waiting for you the few seconds extra to preheat is most definitely worth it.

Using the largest element and tips in the Therm-O-Trac + family, Hexacon TOT-2300+ has the highest heat capacity of any temperature-controlled soldering station. The hand tool includes a heavy-duty element and a larger diameter case to accommodate heavier longer tips. Hexacon TOT-2300+ tips are approximately 22 grams compared with 3.5 grams for a typical standard Therm-O-Trac+ tip. This means that the Hexacon TOT-2300+ tip provides over 6 times the thermal mass enabling it to solder extra heavy loads in less than five seconds.

Therm-O-Trac Plus Features:

• Temperature Control – Therm-O-Trac + is designed to give the industry’s most stable temperature control during the work cycle and less than ±1% variance at idle temperature. Temperature is controlled by a thermocouple positioned at the working end of the tip. It continually senses temperature and corrects for temperature variations immediately by adjusting the power through a closed loop, zero voltage switching circuit.
• Temperature Range – Variable temperature models (350°F to 850°F) can be set for any temperature in the range. All units can be easily calibrated in the field without any special components or tools to ensure certification compliance with industry standards and MIL Specs.
• Practice Safe Soldering – Therm-O-Trac + does not produce levels of EMI, RFI, ESD, electrical, or any other energy form detrimental to sensitive devices during soldering. The station design and construction eliminate any possibility of ESD damage.
• Made to Survive the Harshest Soldering Environments – Therm-O-Trac + Stations are durable and built to last with independently replaceable component parts and tips. All models are available in either 120V, 60 HZ, or 240V, 50 HZ.
