HikMicro P201-MACRO – Pocket Series Macro Lens
43 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:3 days
Macro lens, Pocket Series Cameras, .12x, 100u spot size, 30mm working distance
- Easily clips onto HIKMICRO Pocket-series thermal imaging cameras
- Allows you to spot potential design flaws, evaluate PCB hot spots, and inspect small electronic components
- Magnification: 0.12x
- Focal Length: 4.1 mm
- FOV (Field of View): 47.6 degrees (H) x 36.1 degrees (V)
- IFOV (Spatial Resolution): 2.93 mrad
- Object temperature range: -20°C to 50°C (-4°F to 122°F)
- Accuracy: Max. (± 3°C/5.4°F, ± 3%), for object temperature between 0°C (32°F) to 150°C (302°F)
- Focusing distance: 30 mm ± 1 mm (1.18” ± 0.04”)
- Minimum imaging object size: 100 μm × 100 μm
Guarantee Safe and Secure Payment Checkout
Description
HikMicro P201-MACRO
- Easily clips onto HIKMICRO Pocket-series thermal imaging cameras
- Allows you to spot potential design flaws, evaluate PCB hot spots, and inspect small electronic components
- Magnification: 0.12x
- Focal Length: 4.1 mm
- FOV (Field of View): 47.6 degrees (H) x 36.1 degrees (V)

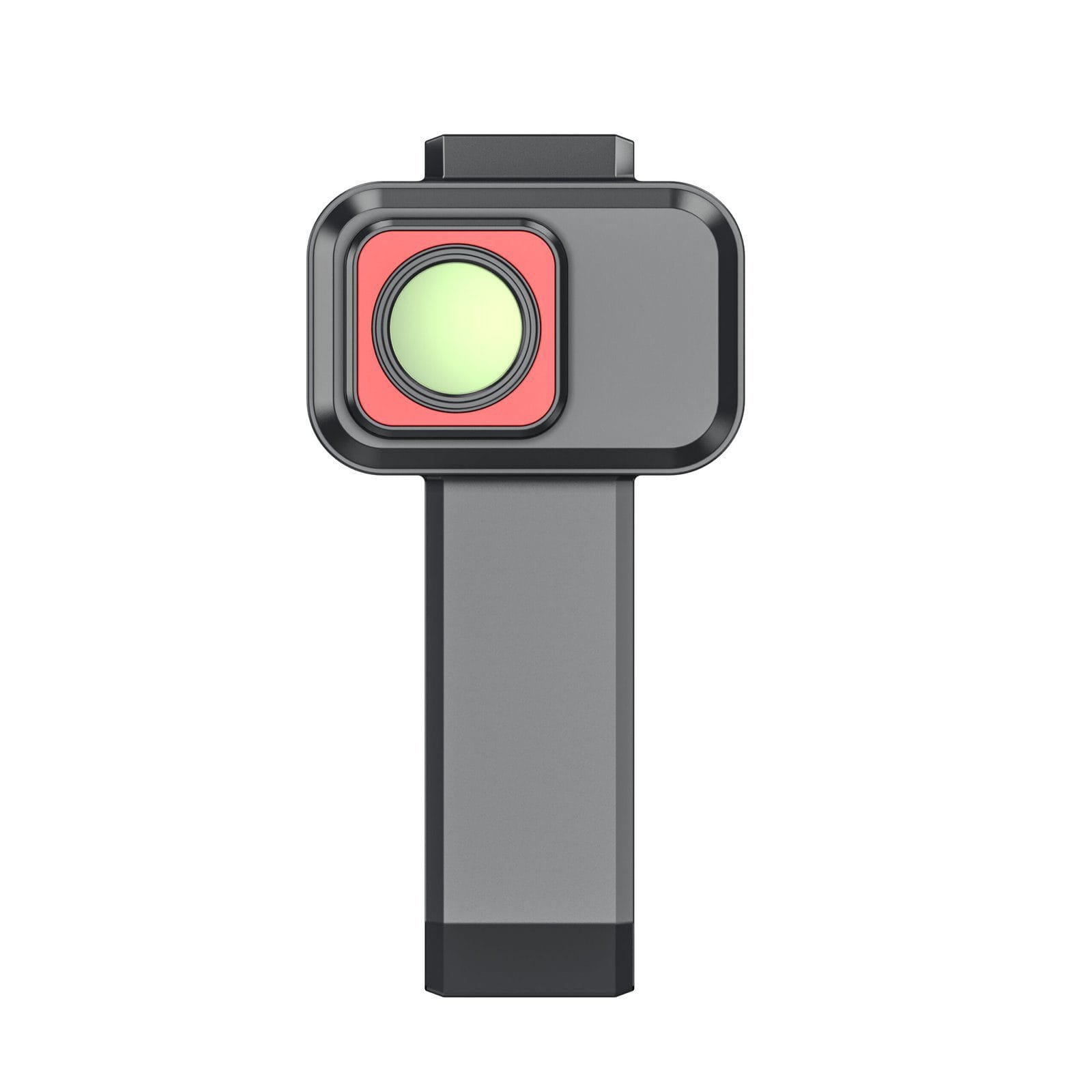

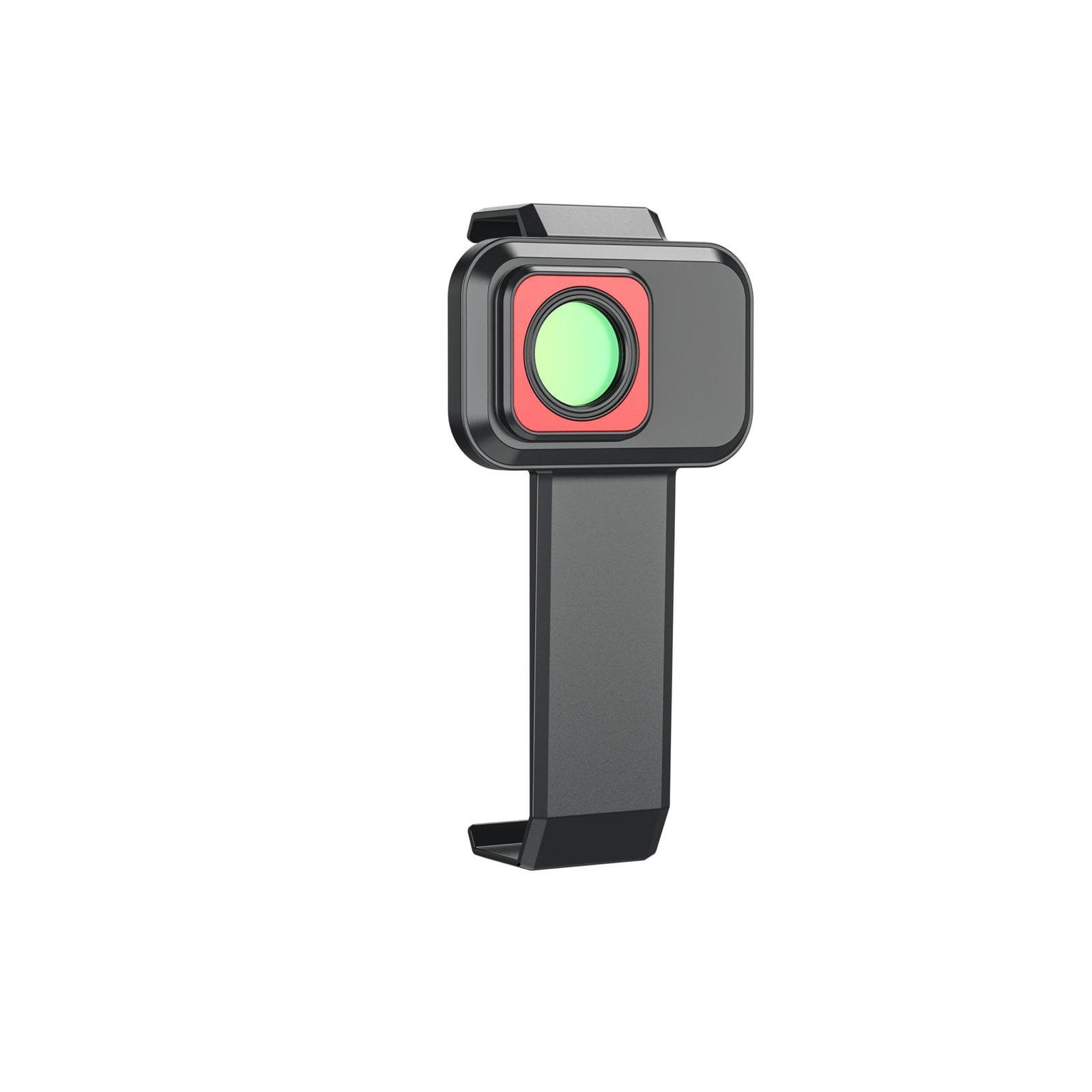

Pocket Series Macro Lens
The HikMicro P201-Macro lens allows you to spot potential design flaws, evaluate PCB hot spots, and inspect small electronic components. Easily clips onto HikMicro Pocket-series thermal imaging cameras
Professional Software
Multiplatform compatible software for screen sharing and professional analysis
1. Screen sharing and high-temperature alarm – UVC alarm client PC software, HIKMICRO Viewer mobile App
1. Powerful Analysis – HIKMICRO Analyzer PC software, HIKMICRO Viewer mobile App
Quick Temperature Measurement
Automatically track and indicate the location of the hottest/coldest/center point temperature.

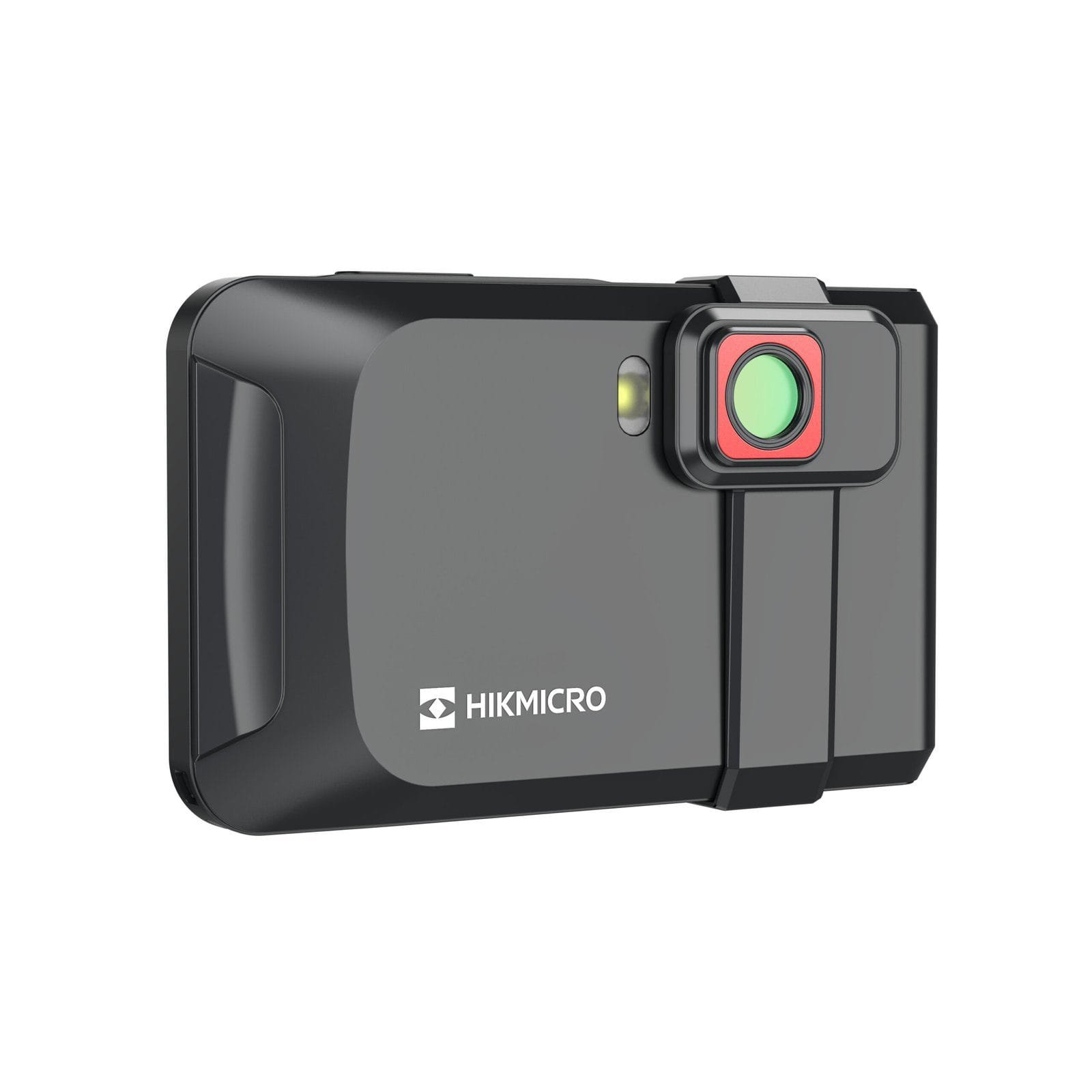

Easy Installation
Easy to attach the macro lens to compatible cameras.
Innovative Macro Mode
Efficient and reliable method for component testing
- See smaller – 500 μm x 500 μm
- High accuracy – Range: 0 C (32 F) to 150 C (302 F); Accuracy: Max. (±3 C/3.6 F, ±3%)
- Ultimate image quality – Up to 256 IR resolution , 40mK thermal sensitivity
- High image frequency: 25 Hz
Product General Attributes | |
|---|---|
| Warranty | 3 YEARS |
| Product Weight | 0.02 LBS |
| Product Height | 1.74 IN |
| Product Length | 0.99 IN |
| Product Width | 3.43 IN |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Dimensions | 0.99 × 3.43 × 1.74 in |
|---|
