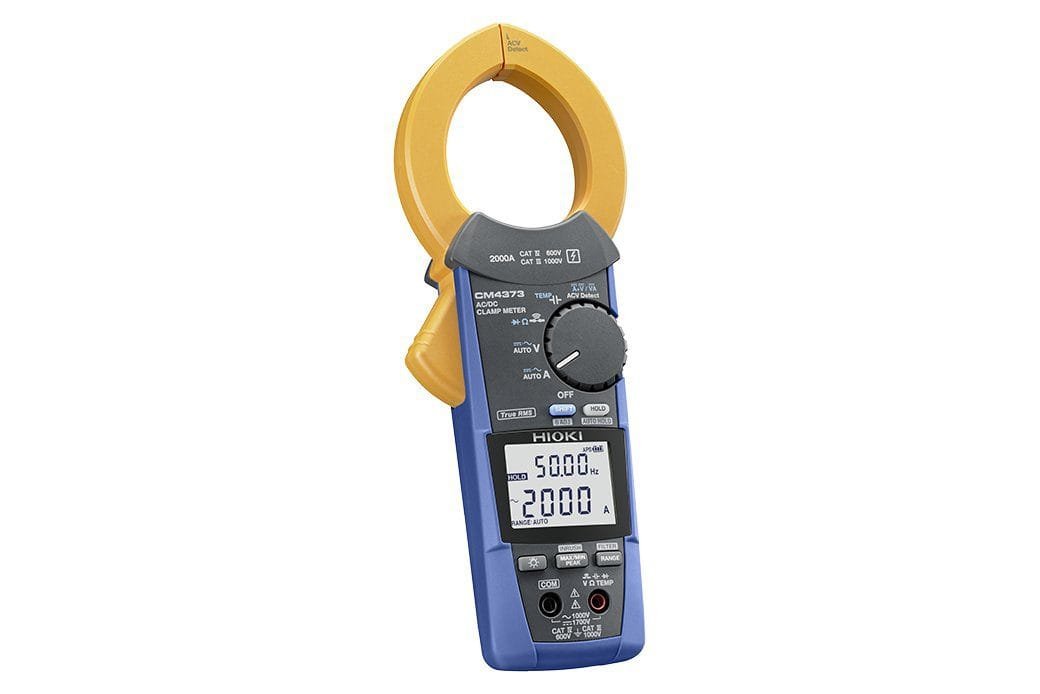

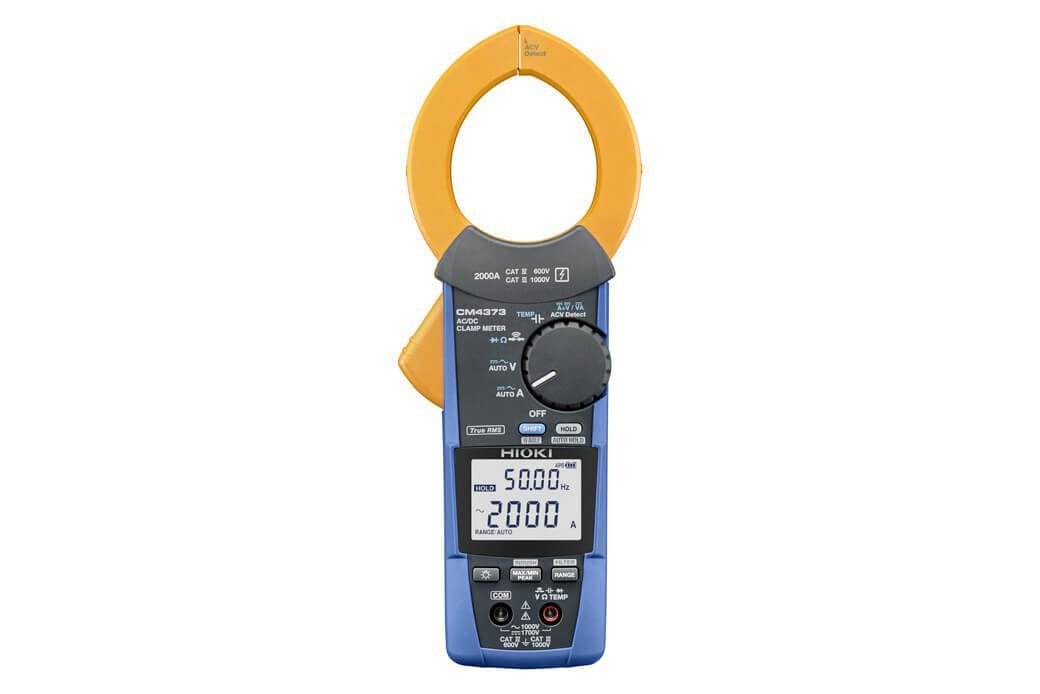

Hioki CM4373-91 – TRMS AC/DC Clamp Meter (2000 A AC/DC) with Z3210 Wireless Adapter + P2000 Probe

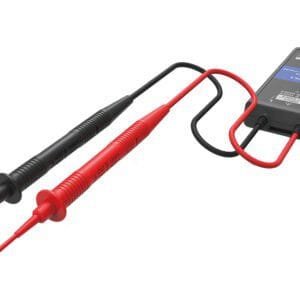

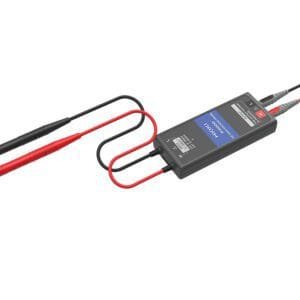

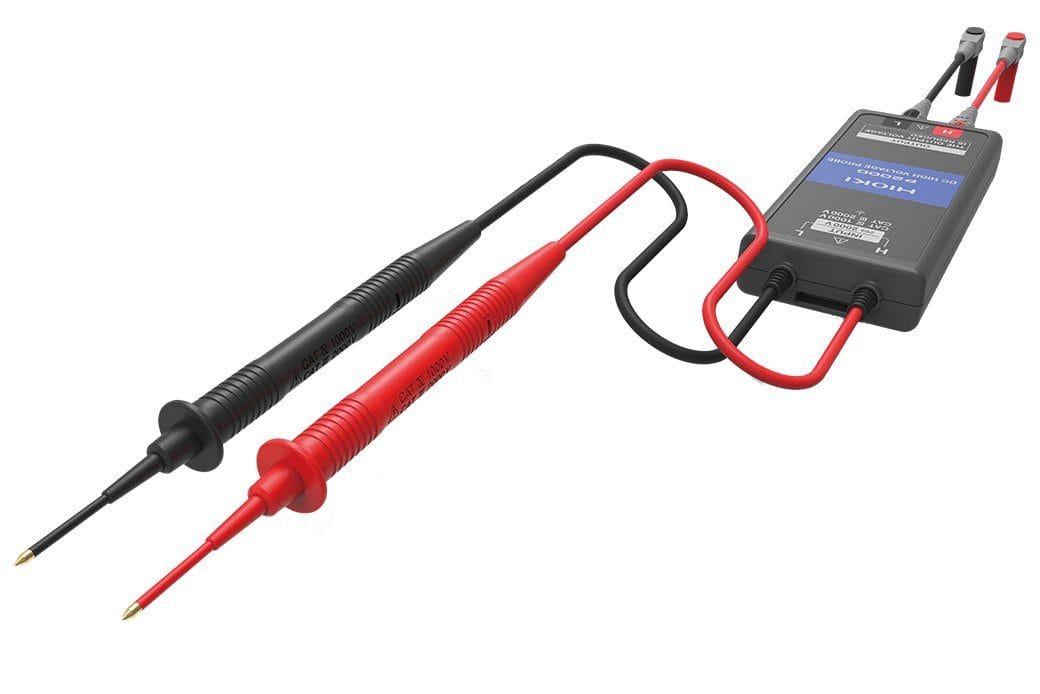

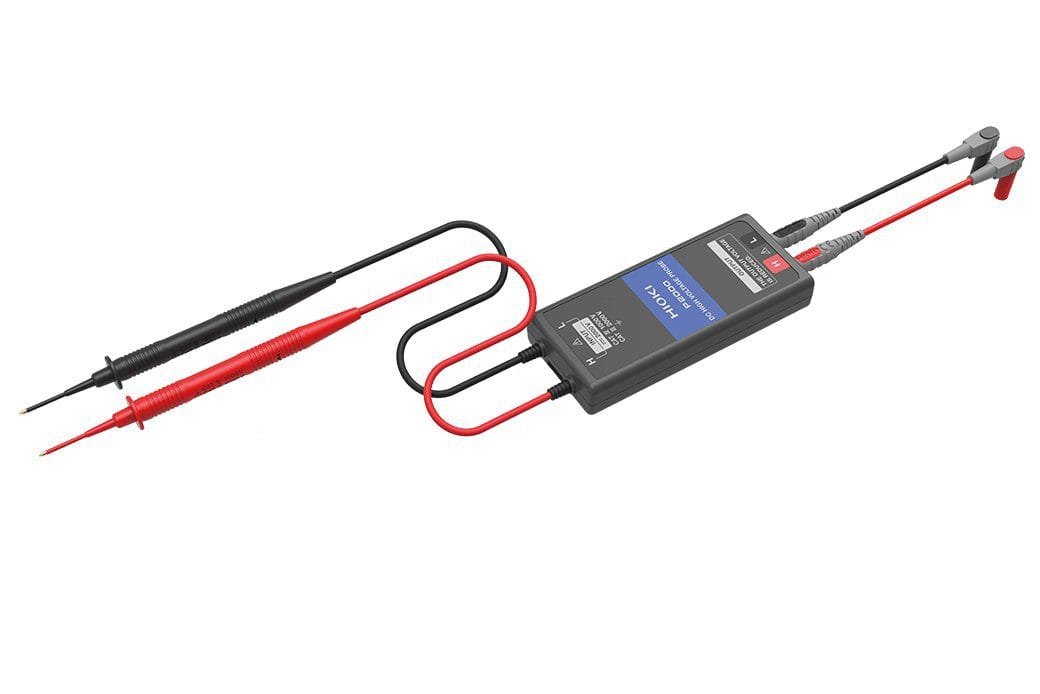

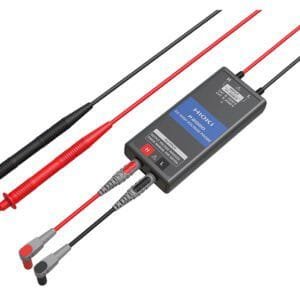

• The package includes a clamp meter, wireless adapter, and DC high voltage probe
• Safety: CAT IV 600 V, CAT III 1000 V (When using P2000: CAT III 2000 V, CAT IV 1000 V)
• AC / DC current range: 600 A/2000 A
• AC / DC voltage range: 6 V – 1000V
• Resistance range: 600 ohms – 6 mega-ohms

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The CM4373 is a 2000A True RMS clamp meter that features stronger jaws, a broader -25°C to 65°C operating temperature range, and an IP54 dustproof and waterproof enclosure to enable professionals to work quickly in tough situations, including the development, repair, and maintenance of equipment and devices such as electric vehicles. Additionally, the high-voltage DC measurement capability up to 1700 V) is ideal for the clamp maintenance inspections of electrical and solar power equipment.

Other functions include:

DC power, Continuity check, Diode check, Automatic AC/DC detection, Pass/fail judgment function of DC A and DC V, Max/Min/Average/PEAK MAX/ PEAK MIN value display, Low-pass filter function, Display value hold, Auto hold, Backlight, Auto-power save, Buzzer sounds, Zero-adjustment, etc.

The Auto Hold feature is perfect in situations where the display is hard to read because the clamped wires are in hard-to-reach locations. With Auto Hold, measured results automatically freeze on the display until the next measurement starts, making testing and record-taking a snap.

Capture the maximum, minimum, average, and peak values of a current signal available when the AUTO AC/DC mode is not in use

The CM4370 Series can measure both DC current and DC voltage with a single device at the same time, making it ideal for automotive battery testing and inspection and maintenance of solar panels.

Accurately measure the startup or inrush current of motors and equipment. The CM4370 series is engineered to detect the full startup current period and then identify the RMS waveform as well as the highest waveform peak.

The DMM function of the AC/DC clamp meter is advanced enough to measure up to 1700V AC/DC. Watch this video to learn more.

The DMM function of the AC/DC clamp meter also provides a continuity check function. Easily detect short circuits with the clear buzzer and red LED.

The tip of the current sensor of the CM4370 Series can also detect live voltages, eliminating the need for you to use a separate voltage detector. Energized lines are identified with a loud buzzer and red LED on the clamp meter.
