Hioki MR8741 16-Channel Rackmount Recorder Memory HiCorder
29 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:3 days
Multi Channel Memory Hi Corder (16 Analog Ch) – Instrument only
- Input cards not included. Must order at least one for a functional system. See accessories/brochure for details.
- Accommodates up to 8 measurement units.
- Standard support for 16 logic channels

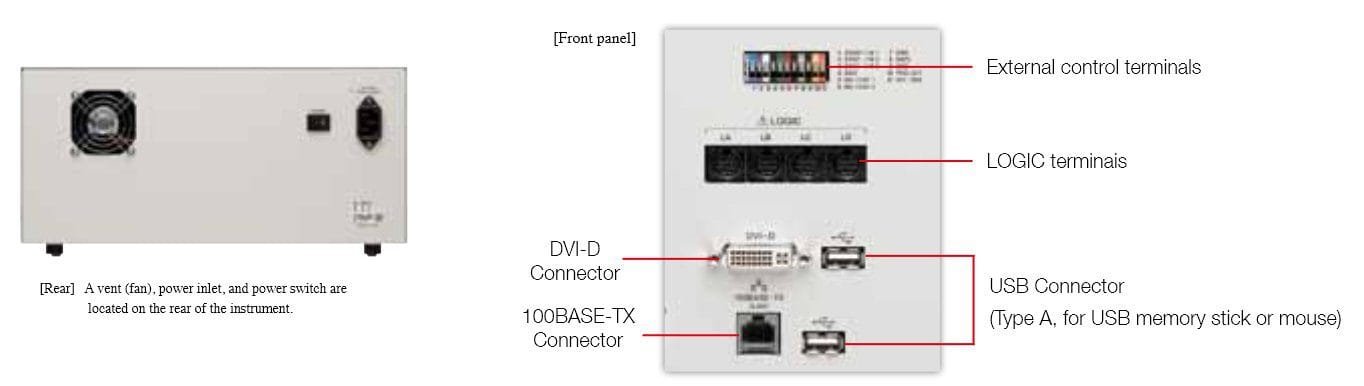

- Area judgment function and external control terminals
Guarantee Safe and Secure Payment Checkout
Description

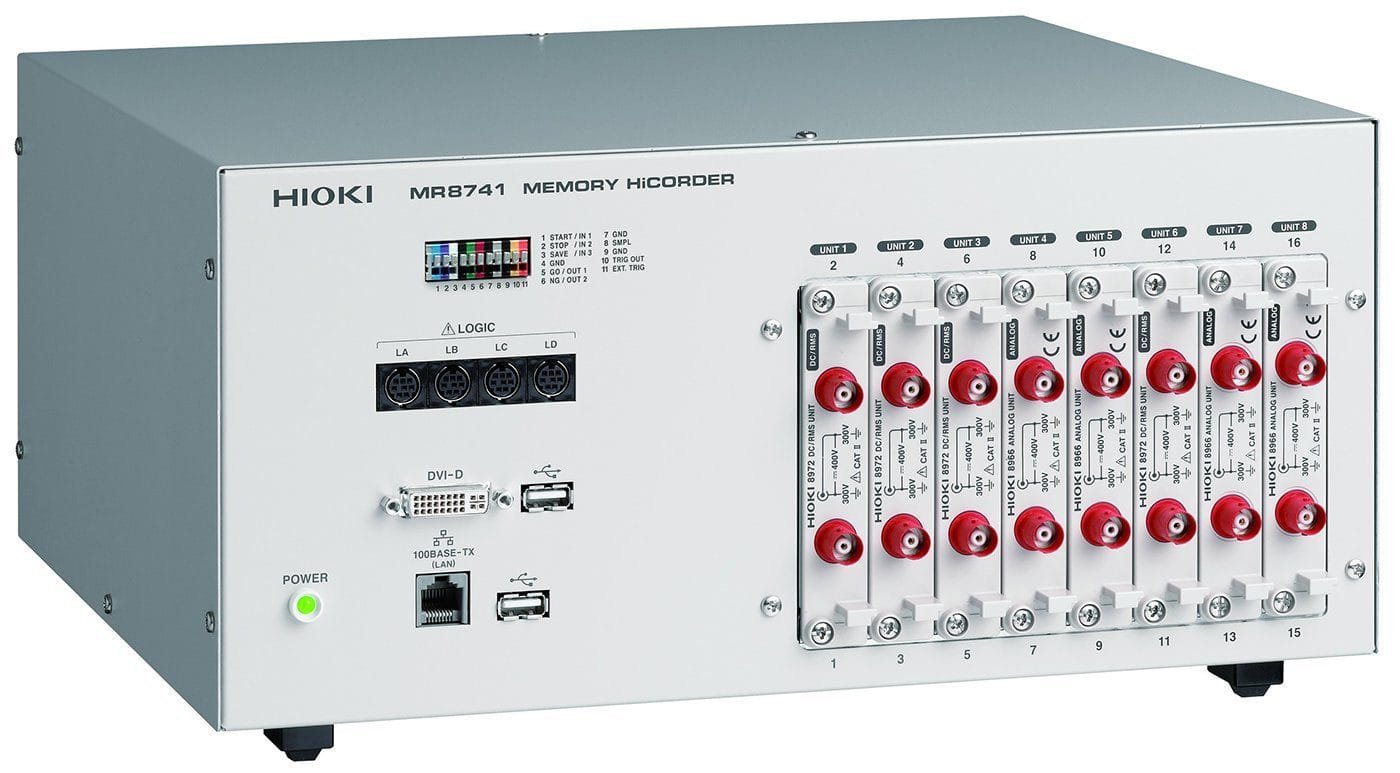

Hioki MR8741 16-Channel Rackmount Recorder Memory HiCorder
The MR8741 is a bench-top instrument that delivers affordable measurement performance. It features area judgment functionality and external control terminals.
Use as a multi-channel WAVE COMPARATOR.

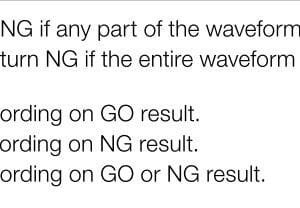

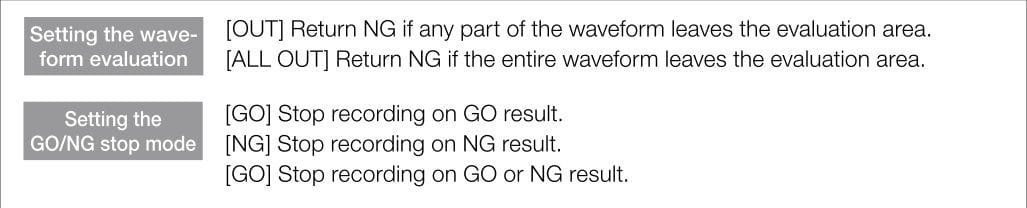

High-speed waveform judgment function

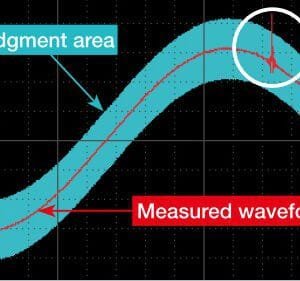

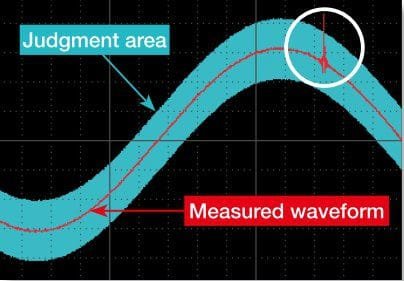

The MR8741’s waveform judgment function, which monitors whether a target waveform has diverged from an area with a safe margin, makes it easy to measure signal waveforms for which it can otherwise be difficult to make pass/fail judgments. The instrument can measure waveforms on multiple channels at the high speed of 20 MS/s, providing immediate pass/fail judgments in maintenance and production line applications.
When using a time-axis range slower than 100msec/div, measured waveforms can be compared in near real-time, enabling you to detect failures on the spot. Production can be halted in time to minimize resource waste.
Dataloggers / Data Acquisition/Data Recorders Template | |
|---|---|
| Type (Recorders) | Data Logger |
| Style (Recorders) | Bench / Portable Style (Recorders) Rack mounting hardware supplied |
| # Channels Expanded plus Logic (Recorders) | 32 EA # Channels Expanded plus Logic (Recorders) (16) DC Voltage and (16) Digital/Logic |
| # Channels Base Unit (Recorders) | 0 EA |
| # Logic / Digital Channels (Recorders) | 16 |
| Sampling Interval (Controllers/Recorders) | 50 ns (0.00005 ms) Sampling Interval (Controllers/Recorders) Varies depending on input module selected |
| Sampling Frequency (Recorders) | 20 MS/S Sampling Frequency (Recorders) Varies depending on input module selected |
| Input Types (Controllers/Recorders) | Current / 4-20 mA, Digital / Logic / On-Off, Frequency / Pulse, T/C – RTD, Voltage Input Types (Controllers/Recorders) Additional modules for strain, DC RMS Voltage, Current with optional clamp sensor, Logic with optional logic probe |
| Bits | 16 Bits 16 Bit and 12 Bit depending on input module |
| Power Source | AC Line |
| Data storage | Yes |
| Isolated Inputs (Recorders) | Yes |
Product General Attributes | |
| Unique Features | A single expandable instrument solution for measuring multiple signal types and channels featuring rack-style measurement units that can be selected freely according to the target application. Up to 32 voltage channels plus 16 logic channels. 20 Ms/s sampling frequency input module available |
| Warranty | 1 YEARS |
| Interfaces I/O | Analog Input , USB, VGA or SVGA Out |
| Storage | USB Flash Drive |
| Product Weight | 5.4 KILOS (11.90 LBS) |
| Product Height | 160 MM (6.30 IN) |
| Product Length | 320 MM (12.60 IN) |
| Product Width | 350 MM (13.78 IN) |
| Data Logging | Yes |
| Calibration Included | |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | Japan |
