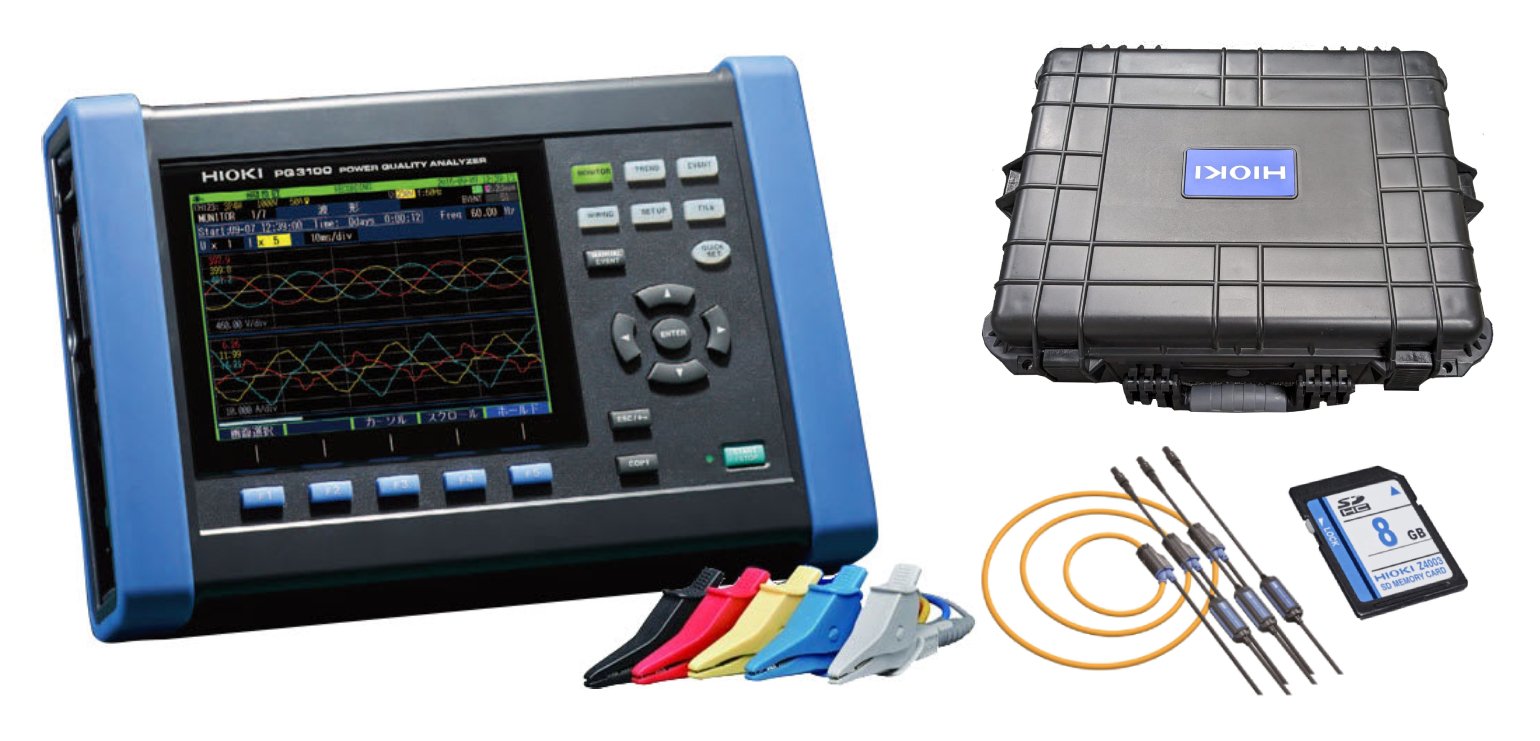

Hioki PQ3100-04/6000-4in KIT – Power Quality Analyzer Kit (4 x CT7044, Z4003, PQ3100/98 H-CASE)
28 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:5 days
4 X 6000A Clamo PQA Kit (PQ3100 w/ 4 X CT7044, Z4003, PQ3100/98 H-CASE) *Production delay is expected due to worldwide component shortages. Please contact to Hioko representative for details.
- Kit includes power quality analyzer, four 6000 Amp AC clamp current sensors (CT7044), 8 GB SD card, and a hard carrying case
- Record data including voltage, current, power, harmonics, and flicker simultaneously along a single time axis
- Capture all power anomalies, including instantaneous outages, voltage drops, and frequency fluctuations, while simultaneously recording trend data
- Quick Set: Easy-to-understand on-screen guide for measurement procedures
- Bundled PQ ONE application software makes it easy to create reports
- Record waveforms for up to 1 second before and 10 seconds after an anomaly occurs
- Accurately measure DC currents over extended periods of time (with an AC/DC auto-zero current sensor)
- Directly supply power to connected current sensors
- Note: Analyzer specifications frequently exceed those of the sensors. Please select sensors that meet your requirements.
Guarantee Safe and Secure Payment Checkout
Description
Hioki PQ3100-04/6000-4in KIT
- Kit includes power quality analyzer, four 6000 Amp AC clamp current sensors (CT7044), 8 GB SD card, and a hard carrying case
- Record data including voltage, current, power, harmonics, and flicker simultaneously along a single time axis
- Capture all power anomalies, including instantaneous outages, voltage drops, and frequency fluctuations, while simultaneously recording trend data
- Quick Set: Easy-to-understand on-screen guide for measurement procedures
- Bundled PQ ONE application software makes it easy to create reports
Power Quality Analyzer Kit (4 x CT7044, Z4003, PQ3100/98 H-CASE)
This is a kit based around a 3-Phase 4-Wire power quality analyzer compliant to IEC61000-4-30 class S standards. This kit adds four 6000 Amp AC clamp current sensors (CT7044), an 8 GB SD card, and a hard carrying case to the PQ3100 power quality analyzer and its standard accessories.
*Note: Certain product specifications indicate the maximum capabilities of the analyzer. The capabilities of the analyzer unit may exceed the those of certain clamps or sensors, including those packaged with kits such as this one. You must select a sensor that meets your requirements.
Analyze Equipment Power Problems
Capture the full range of power supply anomalies, including momentary interruptions, voltage drops, and frequency fluctuations while recording trends to help investigate the causes of unexpected equipment malfunctions and sudden stoppages.
Record Quality Data for Power Systems
Record fluctuations in voltage, current, power, harmonics, and flicker when connecting a highly variable system such as a renewable energy source or EV charging station to the grid. Easily analyze the data with the included PQ ONE software.
Easy-to-Understand Display of Parameters
Since you can switch the display to show all measurement parameters while measurement is underway, it’s easy to check conditions.
Interfaces
The PQ3100 has inputs for both voltage and current sensors.
Flexible AC Current Sensor CT7044
- This kit includes four CT7044 sensors
- 6000 Amp AC maximum
- 100 mm (3.94 in) conductor diameter size
- Cable length between flexible loop and battery box: 2.3 m (7.55 ft)
Power Measurement/Power Quality Analyzer Template | |
|---|---|
| Type (Power Quality) | 3 Phase, Single Phase |
| Apparent Power (VA) | Yes |
| Reactive Power (VAR) | Yes |
| Current Input Channels | 4 |
| Voltage Input Channels | 4 |
| Measurement Frequency (Power Quality) | 60 Hz |
| Display (Power Quality) | Digital, Graphical |
| Graphical Display Type | TFT LCD |
| Alarms | Yes |
| Transient Capture | Yes |
| Minimum Transient Duration | milli-seconds |
| Displays Waveform | Yes |
| Energy | Yes |
| Power Factor (Power Quality) | Yes |
| Harmonics | Yes |
| Current Clamps Included | Yes |
| Class A Compliant | No |
| Crest Factor | Yes |
| CAT Rating | III |
| CAT Voltage Rating (V) | 600V |
Product General Attributes | |
| Warranty | 3 YEARS |
| Warranty Details | Accuracy guaranteed: 1 year |
| Interfaces I/O | LAN / Ethernet, RS-232, USB |
| Storage | SD Card |
| IP Rating | IP30 |
| Power Supply Voltage | 120V 50/60 Hz |
