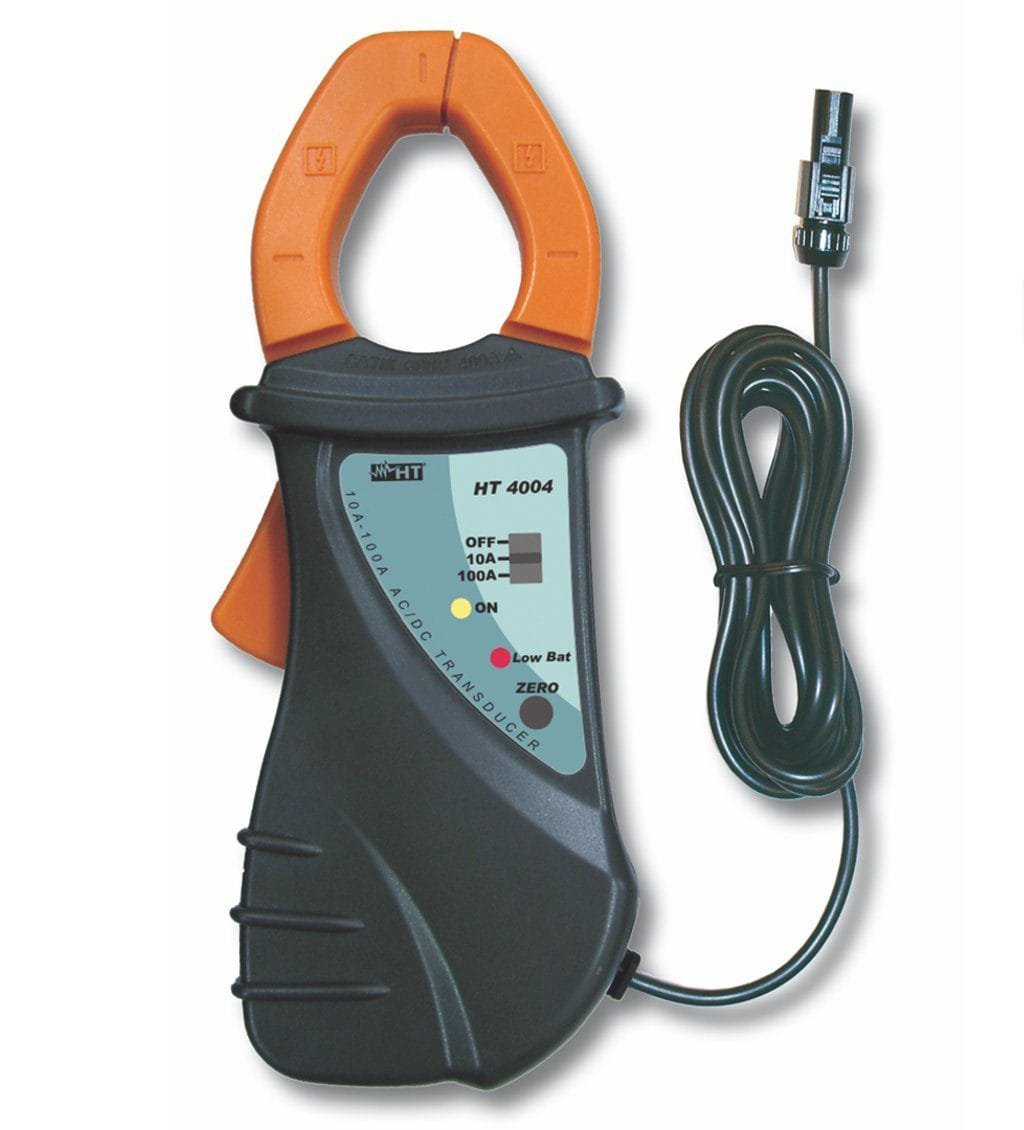

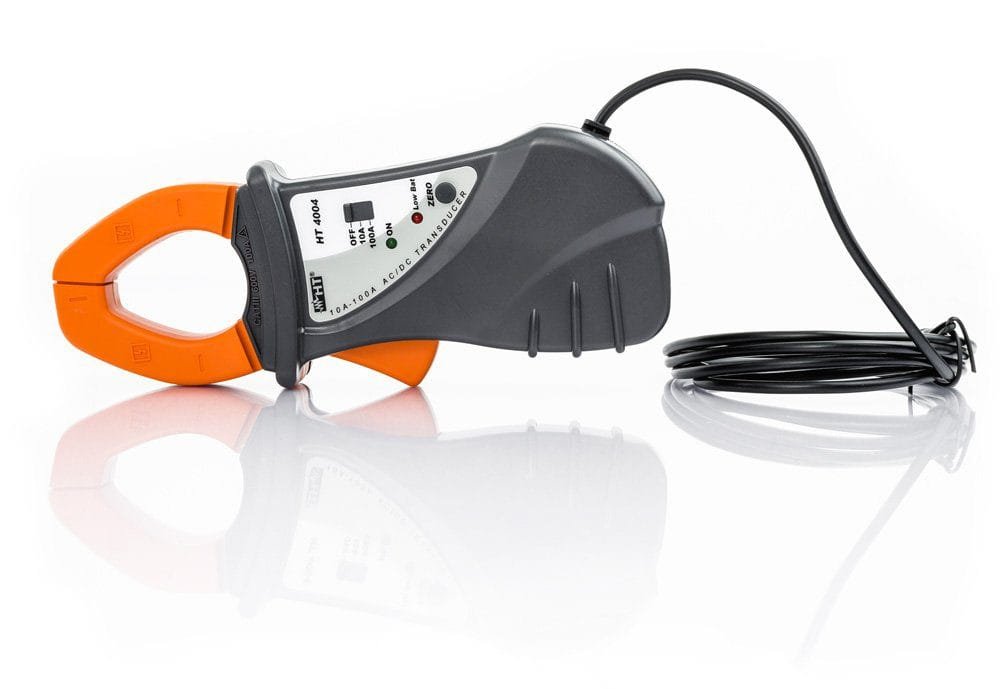

HT Instruments HT4004 AC/DC Transducer Rigid Clamp Meter up to 100A
24 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:4 days
Transducer for AC/DC currents 0 10 – 0 100 A AC/DC
- Measuring range: 0.1 ÷ 100 A
- DC Precision: ± 1.5% of reading + 0.01A
- AC Precision: ± 2.0% of reading + 0.5 A
- Output Signal: 1 V AC / DC
- Overvoltage Category: CAT III 600V
- Max. Cable Diameter: 30 mm
- Output Connection: Plug Hypertac
- Range selector included
- Manual zeroing of clamp
- External power supply and low battery indicator
Guarantee Safe and Secure Payment Checkout
Description
HT Instruments HT4004 AC/DC Transducer Rigid Clamp Meter up to 100A
;) | The flexible and non-flexible clamps for the current measurement up to 3000A AC and the probes for the brightness, temperature and humidity measurement. All have a voltage output with a maximum of 1V AC. These adapters can be used with any properly designed equipment type, precision multimeter, recorder and data logger. Transducer clamp for AC currents 0.1A ÷ 100A AC/DC, Cable 2m – with Hypertac connectors. Measuring range: 0.1A ÷ 100A AC/DC, Output: 1V AC/DC, Over voltage category CAT III 600V, Max Cable Diameter: 30mm. (Clamp not suitable for power measurement). <– Take care about Conventional Power Direction (see picture on side) |
Clamp Meters/Current Clamp Adaptors / Current Clamps Template | |
|---|---|
| Type (Current Clamp Adaptors | CT |
| Maximum Current AC | 100 A |
| Maximum Current DC | 100 A |
| Maximum Conductor Size | 1.18 IN |
Product General Attributes | |
| Safety Approval | CE |
| Product Weight | 200 GRAMS (0.441 LBS) |
| Product Height | 35 MM (1.38 IN) |
| Product Length | 175 MM (6.89 IN) |
| Product Width | 70 MM (2.76 IN) |
| HTS/Schedule B Number | 90303330 |
| ECCN Number | 8.0331E+12 |
| Country of Origin | Taiwan |
You must be logged in to post a review.
Manuals/Guides
| Dimensions | 175 × 70 × 35 in |
|---|
