HT Instruments M75 Multifunction Safety Tester, TRMS DMM and LAN Wire Mapper
18 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:3 days
Multifunction safety tester, TRMS DMM and LAN wire mapper
- DC Voltage
- AC TRMS Voltage
- AC TRMS Current with External Clamp
- AC TRMS Leakage current with external clamp (optional)
- Resistance
- Continuity test with buzzer
- Frequency with test leads
- Frequency with external clamp
- MIN/MAX/AVG functions
- PEAK function with response time 1ms
- HOLD function
- Continuity test of protective conductors with 200mA
- Insulation Resistance measurement with 500VDC
- Trip-out time of RCDs type AC Standard
- Global Earth Resistance without RCD tripping
- Global Earth Resistance with 0.1Ohm resolution
- Phase sequence indication at 1 or 2 wires
- Phase coincidence indication at 1 or 2 wire
- Automatic test of global earth resistance + RDC test + Insulation test
- Wire mapping test on LAN cables with RJ45 connector
- Auto Power OFF
Guarantee Safe and Secure Payment Checkout
Description

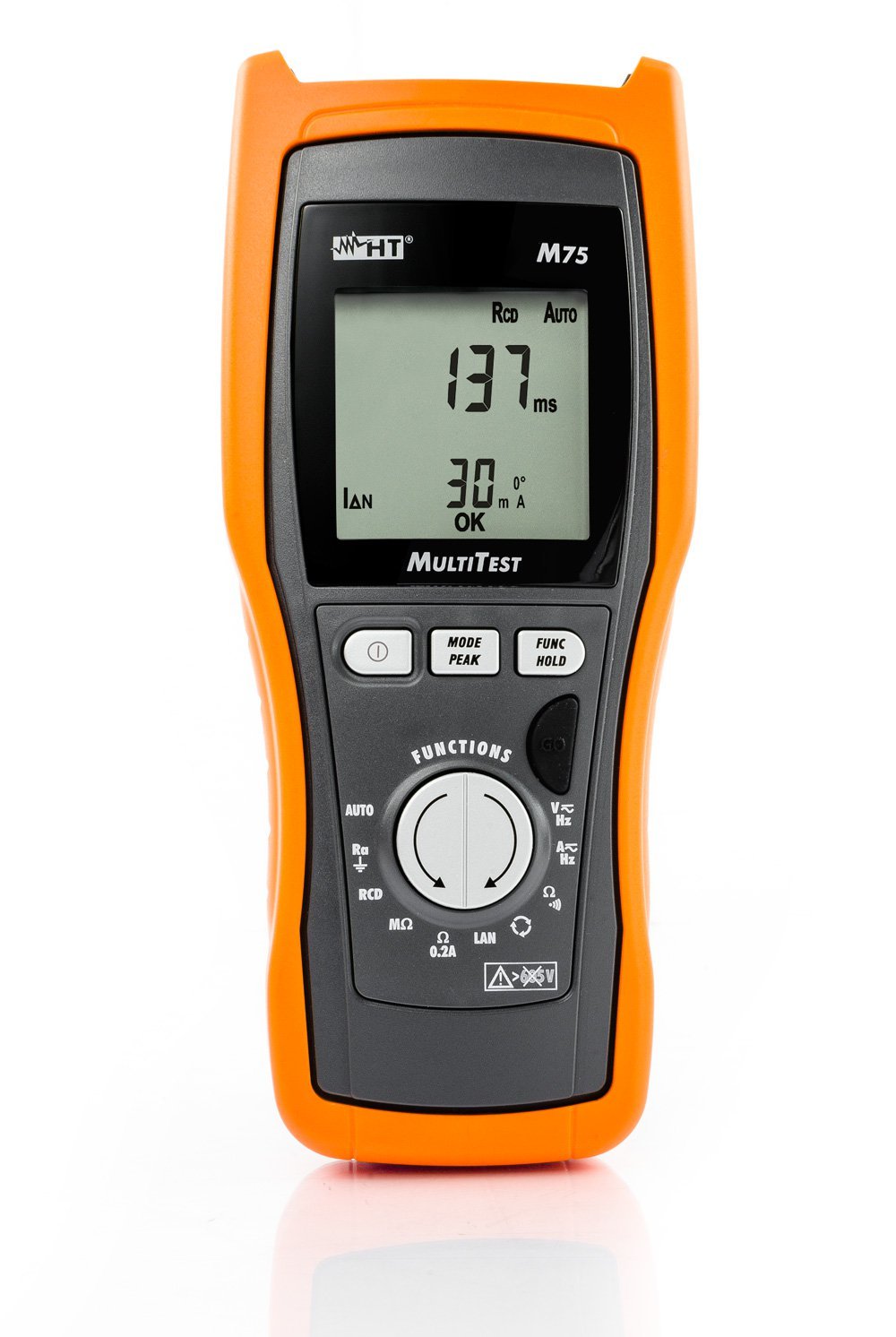

HT Instruments M75 Multifunction Safety Tester, TRMS DMM and LAN Wire Mapper
M75 is an innovative instrument which joins together DMM, Safety Tester and LAN checker features inside a compact and ergonomic user-friendly structure and with a extremely reduced weight (800g only!). The DMM is a professional instrument with TRMS measurement of AC/DC voltage, AC Current (through external clamp), Resistance and Frequency. Additional features are MAX/MIN/AVG function, HOLD function and PEAK detection with Response Time of 1ms, useful for surge currents detection.
The Safety Tester features allow to perform test on electrical plants according to VDE0413. Measures of Continuity, Insulation, Global Earth value (also with 0.1 resolution), RCDs test, phase sequence indication and phase coincidence (using only one Test Lead even just touching even insulated cables or two Test Leads) will be easily performed thanks to this new extremely compact instrument. An innovative function (AUTOTEST) automatically performs main safety checks in the plant (Earth Resistance measurement, RCD Test, Insulation Test) just connecting the instrument to a socket and pressing the GO button. The instrument will give you a final response (OK or NOT OK) about the safety of the plant under test.
Finally the LAN checker function allows you to check if the wire mapping in a LAN cable is correct or not with easy indications about the found errors, which will guide you though the troubleshooting. M75 is completed by a modern selector function knob, a large numeric display for easy readings of measurements and a protection rubber holder to prevent accidental damaged.
Product General Attributes | |
|---|---|
| Unique Features | Auto Power OFF DC Voltage AC TRMS Voltage |
| Safety Approval | CE |
| Product Weight | 630 GRAMS (1.39 LBS) |
| Product Length | 100 MM (3.94 IN) |
| Product Width | 240 MM (9.45 IN) |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Italy |
You must be logged in to post a review.
Manuals/Guides
| Weight | 630 lbs |
|---|---|
| Dimensions | 100 × 240 in |
