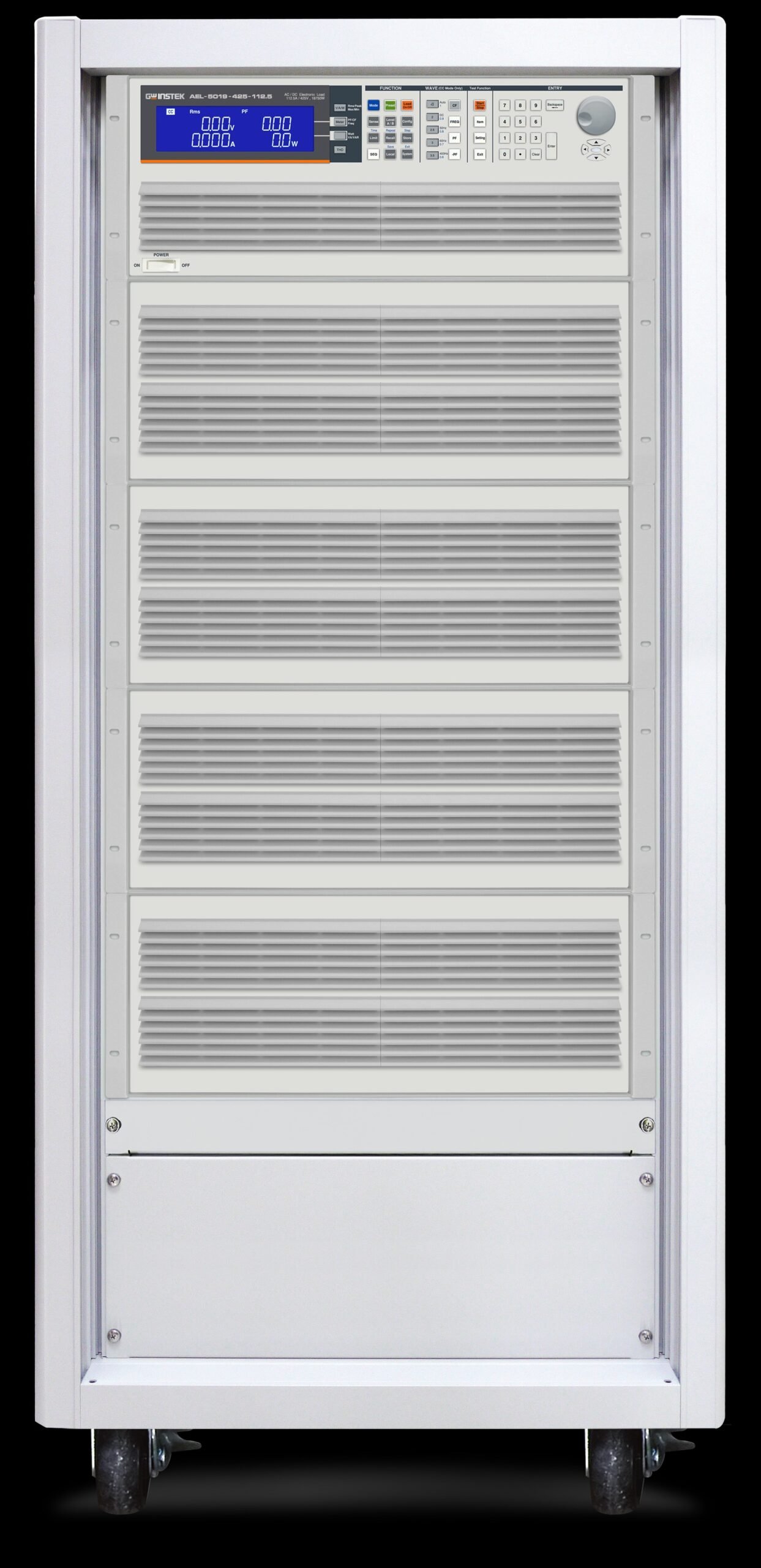

Instek AEL-5019-425-112.5 – AC/DC High Power Electronic Load (18750/37500W; 50~425Vrms/600Vdc)

Name: Instek AEL-5019-425-112.5 - AC/DC High Power Electronic Load (18750/37500W; 50~425Vrms/600Vdc) - NESTES Instruments
SKU: Instek AEL-5019-425-112.5

Brand:

Instek

Please, activate Wishlist option to use this widget.

Please, activate Compare option to use this widget.

19 people are viewing this product right now

Shipping calculated at checkout.

Add to quote

Estimated delivery:3 days

AC/DC High Power Electronic Load (18750/37500W; 50~425Vrms/600Vdc)

Turbo off: 18750W; 112.5Arms / 337.5Apeak; 50~425Vrms / 600Vdc
Turbo On: 37500W; 225Arms / 337.5Apeak; 50~425Vrms / 600Vdc
Turbo Mode for 2 Times the Current and Power of Electronic Load within 1 Second
CC, Linear CC, CR, CV, CP, and AC Rectifier Load Mode
Frequency Range: DC, 40~440Hz
Eight Units Connected in Parallel for Single-phase and Three-phase
Three-phase Delta or Wye Load Connection Can be Synchronized; Control by One Master Unit
Loading and Unloading Angle Control; 0~359 Degree is Settable
Positive Half-cycle or Negative Half-cycle Loading
Supports SCR/TRIAC Current Phase Modulation Waveforms, 90 Degree Trailing Edge, and Leading Edge

SKU: Instek AEL-5019-425-112.5 Tags: Electronic Loads, Power Supplies Categories: Electronic Loads

Have any Questions?

Feel free to Get in touch

Guarantee Safe and Secure Payment Checkout

Description

Reviews (0)

Manuals/Guides

Description

Power Supplies/Electronic Loads Template
Watts	18.75 kW (18750 Watts)
Max Current	112.5 A
Max Voltage	425 V
Min Current	0 A
Min Voltage	50 V
Programable	Yes
Triggering	No
Battery Test	Yes
Remote Sensing	Yes
Product General Attributes
Shipping Weight	660 LBS
