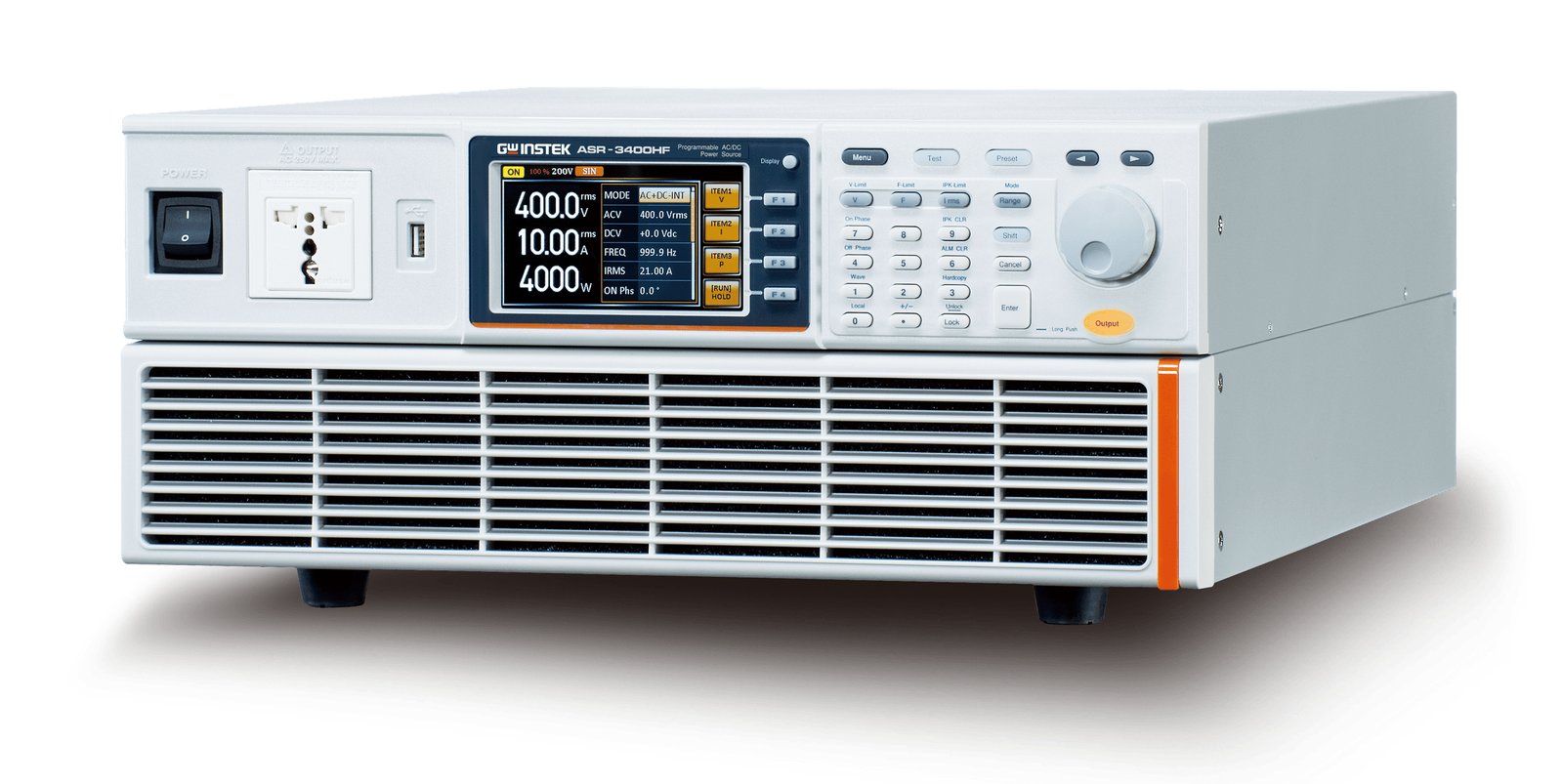

Instek ASR-3400HF – 4KVA Programmable AC/DC Source with 5000Hz output frequency (40A / 20A)

• Output frequency can reach 5 kHz (Crest factor = 4)
• Output Rating: AC 0 – 400 Vrms, DC 0 – ± 570 V
• Max output current: 40A / 20A
• Power rating: 4kVa
• DC Output (100% of Rated Power)

ASR-3000 is ideal for the development of On-board Chargers, Server Powers, LED modules, AC Motors, AC Fans, UPS, and various electronic components, as well as for testing applications of automotive electrical equipment and home appliances.

When the ASR3000 Series power source outputs, it can also measure Vrms, Vavg, Vpeak, Irms, Iavg, Ipeak, IpkH, P, S, Q, PF, CF, 40th-order Voltage Harmonic, and Current Harmonic. In addition, the remote sensing function ensures accurate voltage output, and the Customized Phase Angle for Output On/Off function can set the start and end angles of the voltage output according to the test requirements. The protection limits of V-Limit, Ipeak-Limit, and F-Limit can be set according to user requirements. Overvoltage limit, OCP, and OPP will protect the DUT during the output process. The Fan Fail Alarm function and the AC fail alarm function are also designed in the ASR3000 Series.

The front panel of the ASR-3000 Series provides a universal socket or a European socket, which allows users to plug and use so as to save wiring time. Since the power socket specification has a maximum current of 15A, the rear panel of the ASR-3000 Series is designed with a current circuit breaker. When the socket current is greater than 15A, it will automatically open the circuit to protect users. The ASR-3000 Series supports the I/O interface and is standardly equipped with USB, LAN, External I/O, RS-232C, and GPIB.

The ASR-3000 can provide rated power during both AC and DC output. The series offers nine output modes including:

• AC power output mode (AC-INT Mode)
• DC power output mode (DC-INT Mode)
• AC/DC power output mode (AC+DC-INT Mode)
• External AC signal source mode (AC-EXT Mode)
• External AC/DC signal source mode (AC+DC-EXT Mode)
• External AC signal superimposition mode (AC-ADD Mode)
• External AC/DC signal superimposition mode (AC+DC-ADD Mode)
• External AC signal synchronization mode (AC-SYNC Mode)
• External AC/DC signal synchronization mode (AC+DC-SYNC Mode)

The ASR-3000 provides users with several waveform output capabilities, including:

• Sequence mode – generates waveform fallings, surges, sags, changes, and other abnormal power line conditions
• Arbitrary waveform function – allows users to store/upload user-defined waveforms
• Simulate mode – simulates power outage, voltage rise, voltage fall, and frequency variation

The ASR-3000 series is an AC + DC power source that provides not only rated power output for AC output, but also rated power output for DC output.

The ASR-3000 Series provides users with measurement capabilities including Vrms, Vavg, Vpeak, Irms, Iavg, Ipeak, IpkH, P, S, Q, PF, CF, 40th-order Voltage Harmonic, and Current Harmonic. During the power output, the measurement parameters including Vrms/Irms, Vavg/Iavg, and Vmax/Vmin/ Imax/ Imin can be switched by users at any time to display the instantaneous calculation reading.

The sequence mode provides 10 editable sets of SEQ0~SEQ9, each set has 0~999 steps, each step time setting range is 0.0001~999.9999 seconds. Users can combine multiple sets of steps to generate the required waveforms, including waveform falling, surges, sags, and other abnormal power line conditions to meet the needs of the test applications.

In addition, ASR-3000 Series also built in common ISO-16750-2 test waveforms in the Sequence Mode preset waveforms, including Momentary Drop in Supply Voltage built in at SEQ6, Reset Behavior at Voltage Drop with 12V system built in at SEQ7, Starting Profile Waveform built in at SEQ8 and Load Dump with Tr_10ms, and Td_40ms built in at SEQ9.

Simulate Mode can quickly simulate different transient waveforms, such as power outage, voltage rise, and voltage fall. This enables engineers to evaluate the impact of transient phenomena on the DUT. Ex: Capacitance durability test.

The ASR-3000 provides more than 20,000 waveform combinations in seven categories, allowing users to quickly simulate different AC voltage waveforms. Adjust the desired waveform type directly through the panel (displayed synchronously on the screen), then the waveform is loaded into the ARB 1~16 waveform register through the access procedures. Return to the main menu output mode to perform ARB Waveform output.

The ASR-3000 can set the Slew Rate Mode to determine the rise time of the voltage according to the test requirements of the DUT. Slew Rate Mode provides “Time” and “Slope” modes. When setting “Time” mode, the ASR-3000 can increase output to 10~90% of the set voltage within 100µs; and when selecting “Slope” mode, the ASR-3000 increases output voltage by a fixed rising slope of 1.5V/µs until reaching μ the set voltage value.

In addition, if users decide to self-define the rise time of the output voltage, users can flexibly set the rise time of the voltage by editing the Sequence mode.

1. Air Inlet

2. LCD Screen

3. Display Mode Select key

4. Function Keys

5. Scroll Wheel

6. Output Key

7. Hardcopy Key

8. Lock/Unlock Button

9. USB Interface Connector(A Type)

10. Power Switch Button

11. Output Socket

12. External I/O Connector

13. GPIB Connector

14. Remote Sensing Input Terminal

15. Output Terminal

16. Line Input

17. External Signal Input/External Synchronized Signal Input

18. RS-232C Connector

19. LAN Connector

20. USB Interface Connector(B Type)

21. Circuit Breaker
