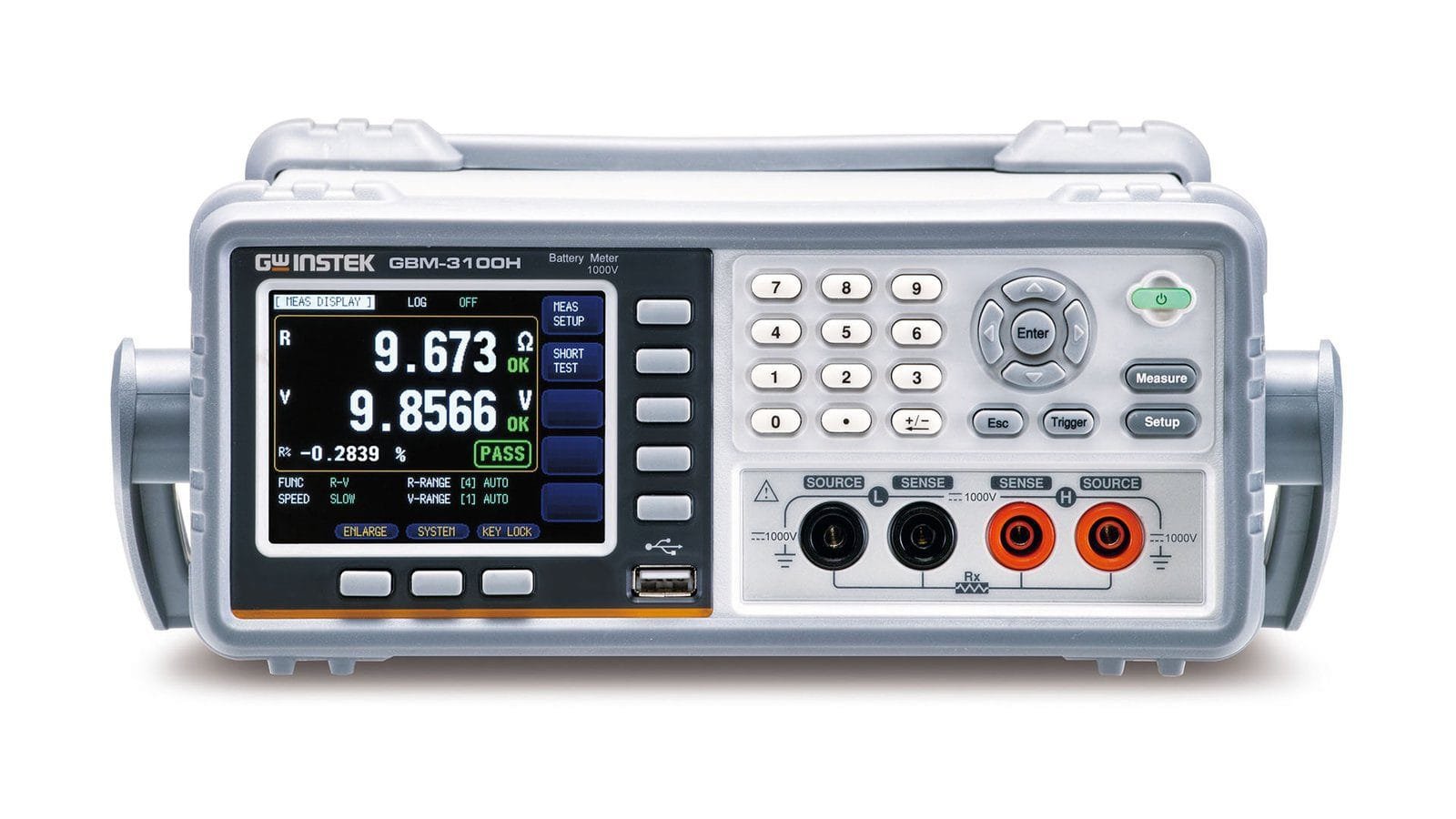

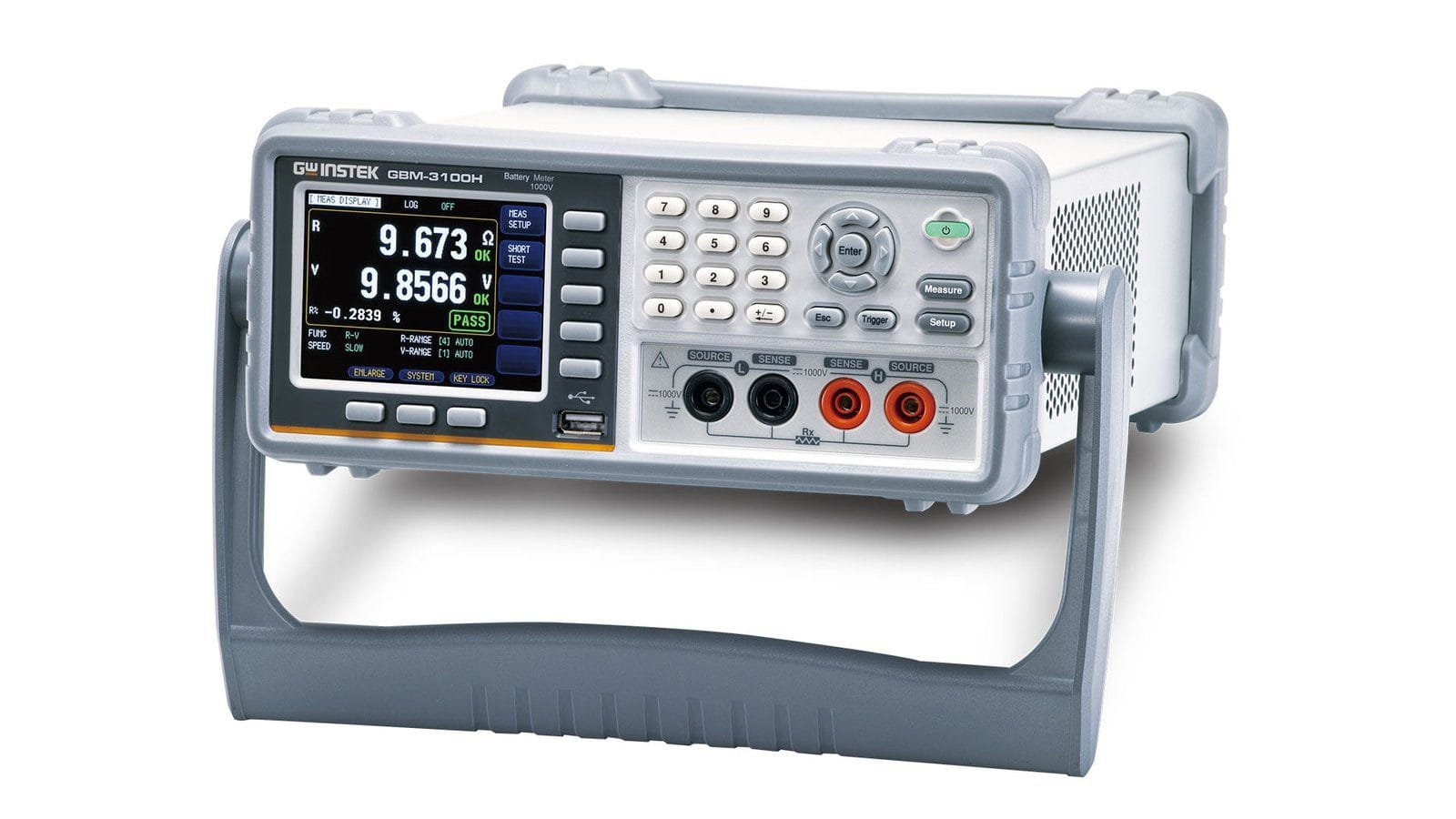

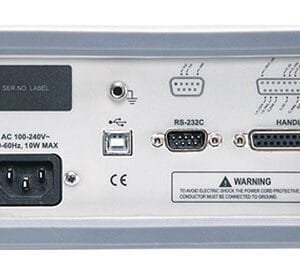

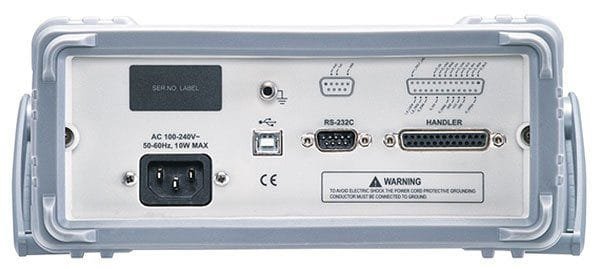

Instek GBM-3100H – 1000V Battery Meter with RS-232C/USB and Handler Interface

• 3.5’ TFT LCD (320×240)
• Measurement items: DC voltage and AC resistance
• Voltage measurement: 1000V
• Resistance measurement: 0mΩ ~ 3.2kΩ(max.)
• Basic accuracy for voltage measurement: 0.01%

The GBM-3100H desktop battery tester uses an AC 1kHz test signal and measures the battery’s voltage and internal resistance to 1000V. The meter features a 3.5” TFT LCD, 4-wire measurement method, high-resolution (6-digit voltage, 5-digit resistance) measurement display capability, independent GO/NOGO determination of voltage and resistance, and communication interfaces to meet various types of battery measurements, ranging from single cell, battery cell, and end product (battery). It is an ideal tool for accurate measurements at all stages of production.

• Three combinations of main measurement parameters: R+V/R/V
• Simultaneous display of parameter settings for related measurements
• Applications include design, engineering, and production
• Six-digit voltage and five-digit resistance accuracy

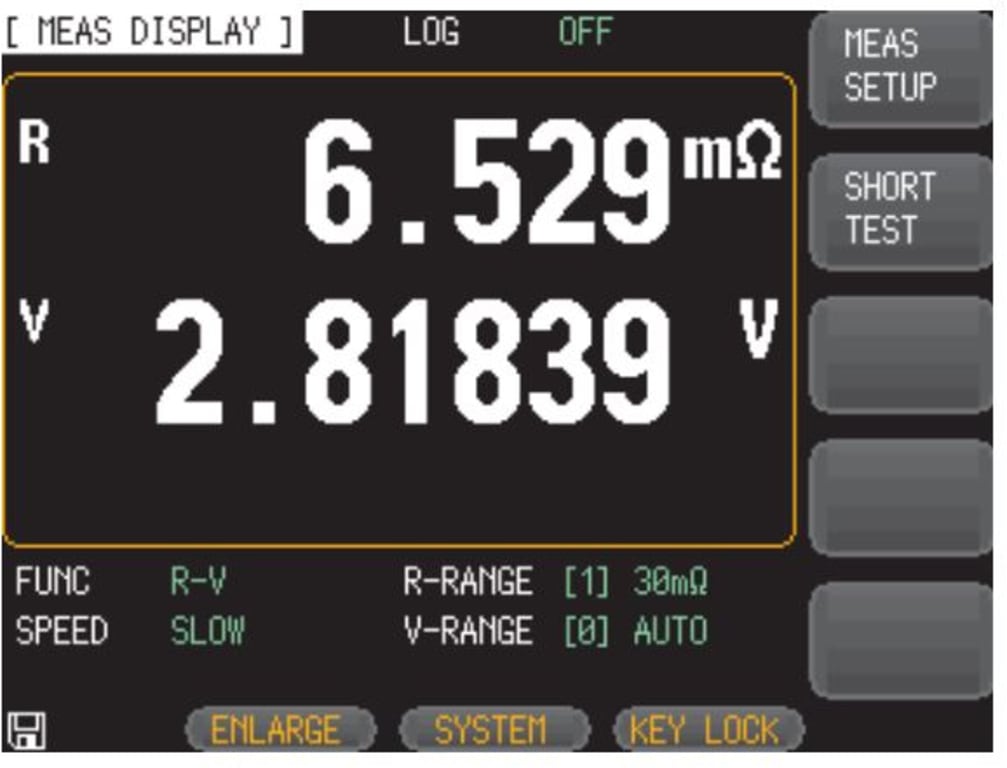

• Standard mode (shown at left) provides more detail
• Simple mode (not pictured) provides larger display of primary parameters

• Supplement the measurement of production lines

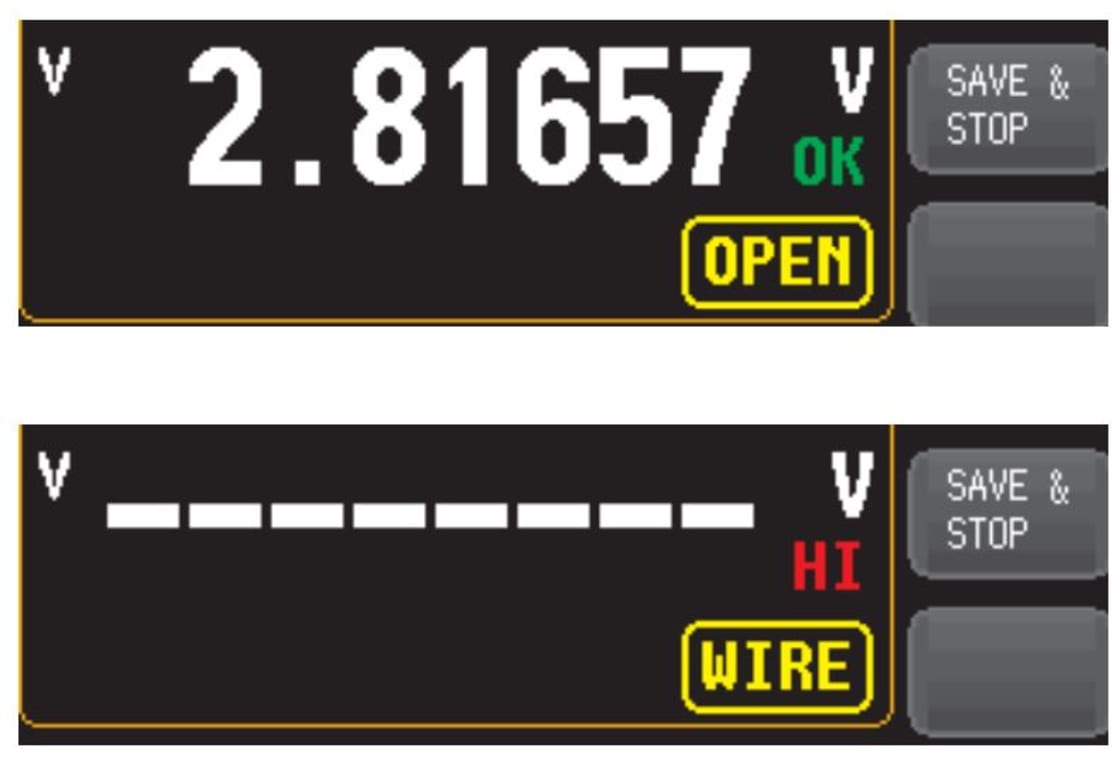

• Display screen will clearly indicate a poorly contacted test lead

• Store up to 10,000 lots of measurement data

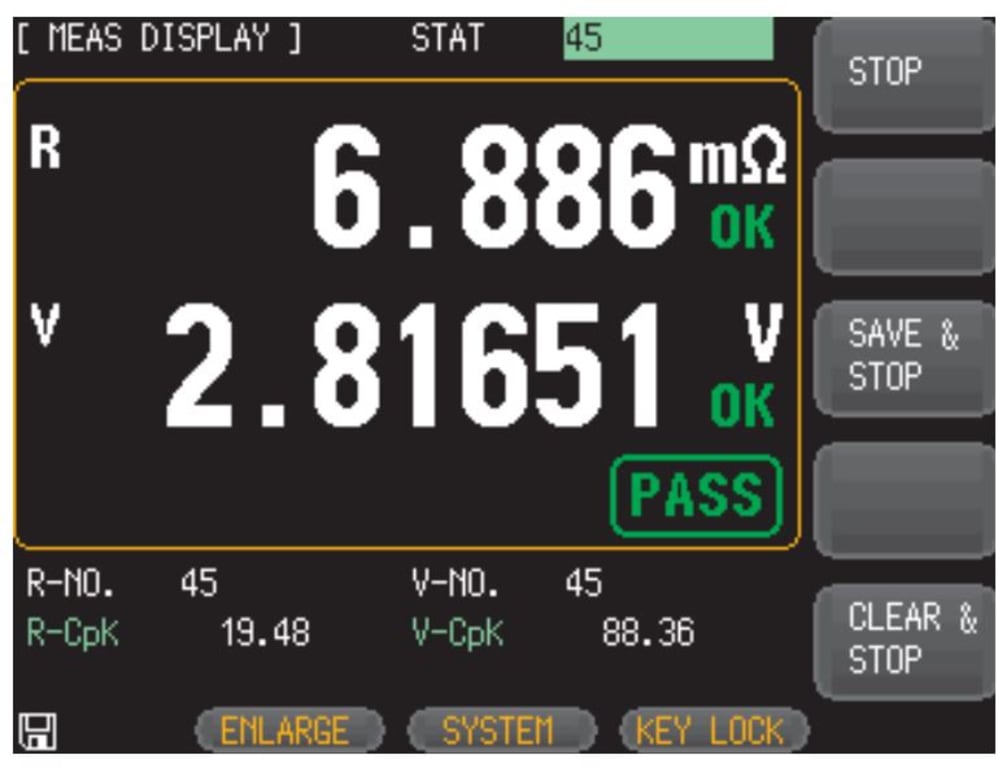

• Statistical calculation functions allow observation of production status
• Can perform statistical observations without connecting to a computer
• Results can also be transferred to a computer via flash drive for long-term storage and analysis
