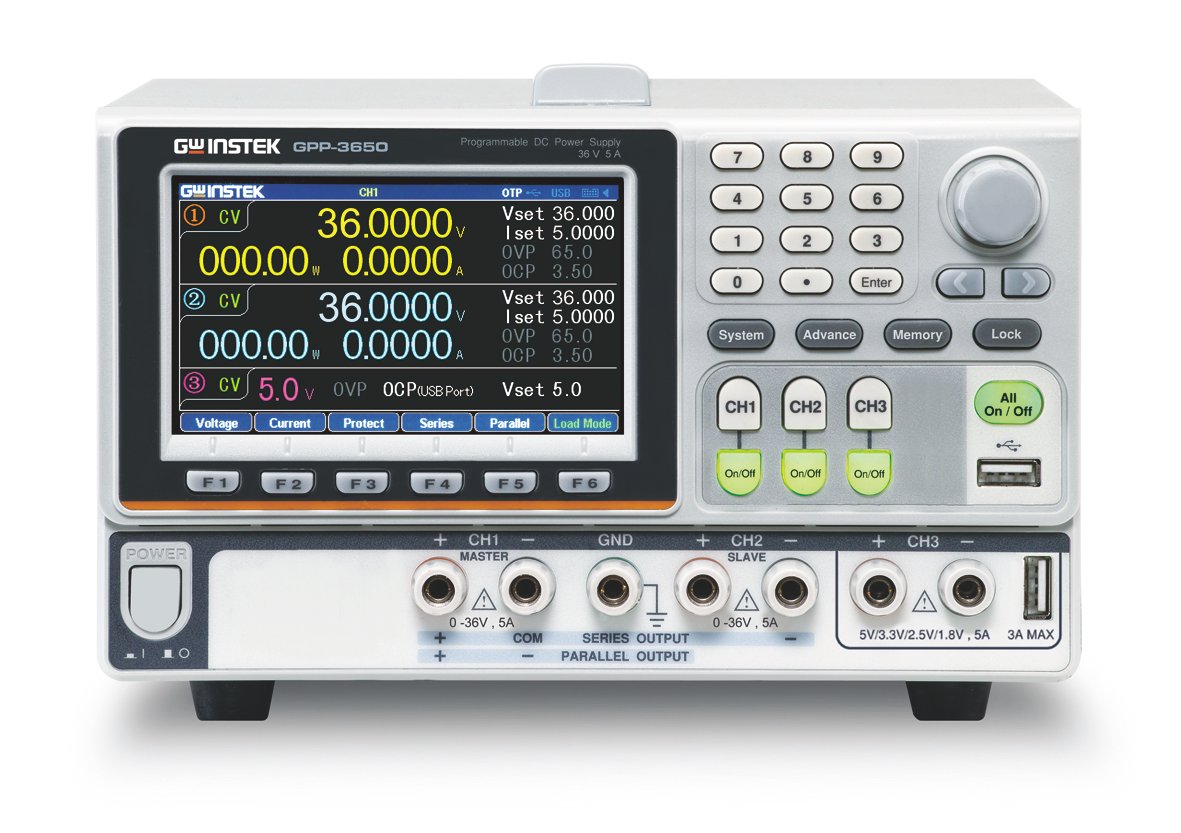

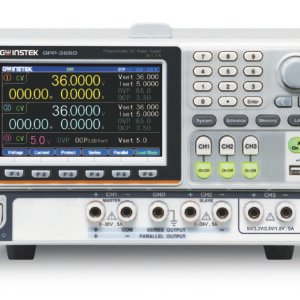

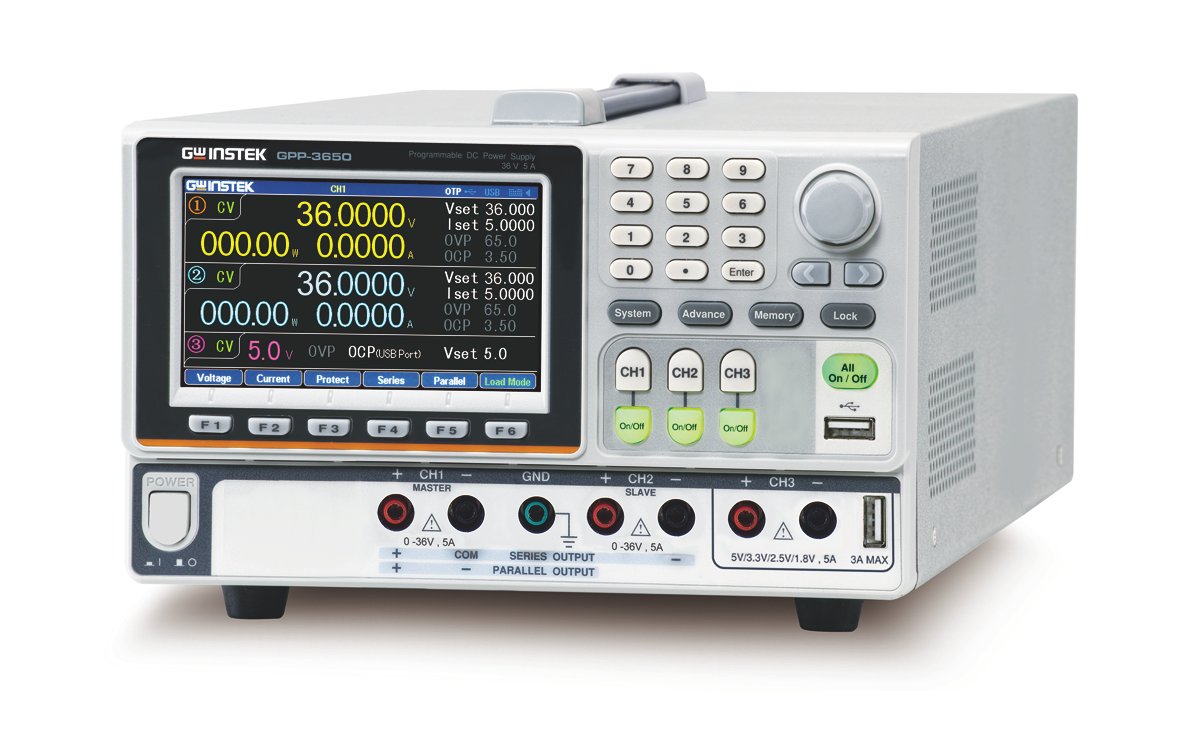

Instek GPP-3650 – 3CH DC Power Supply (CH1 and CH2: 0-36V/0-5A, CH3: 1.8V, 2.5V, 3.3V, 5V/ 5A)

• Does not have GPIB interface
• Max. Power: 385W
• CH1, CH2: 0-36V/0-5A
• CH3: 1.8V/2.5V/3.3V/5V; 5A
• 4.3” TFT LCD Display

The GPP-3650 is a triple-channel programmable DC power supply. GPP-3650 supports CH1/CH2: 0 ~ 36V / 0 ~5A output; CH3 supports 1.8V, 2.5V, 3.3V, 5.0V /5A.

GPP-3650 inherits the high program resolution (1mV/0.1mA) and read back resolution (0.1mV/0.1mA) of the GPP series with low-ripple noise characteristics ≦1mVrms/≦2mArms and ≦100μs output transient recovery ability. An independent output on-off switch is provided for each channel.

In addition, GPP-3650 incorporates terminal output on the rear panel and includes a voltage remote sensing terminal. Users can choose front panel or rear panel terminal output, which is convenient for stand-alone or rack operation. Output value setting and Sequence/ The Delay/Recorder functions provide 10 sets of internal memory, which can be uploaded/stored by a USB flash drive.

For series and parallel applications of CH1 and CH2, the tracking function of the GPP Series utilizes the internal circuit to automatically switch the output to serial or parallel output without additional external wiring, providing users with convenience not only in operating procedures but also a more stable output.

The tracking function design of other brands requires additional external wiring connections for the output in series or parallel. However, excessively long, thin, or inconsistent external wiring may cause inaccurate voltage or current output.

The output monitoring function allows users to set the monitoring conditions according to the requirements, including the voltage, current, and power greater than or less than the setting and the logical relationship of AND, OR. It also allows users to sound alarms or stop the output during the measurement process, stop the measurement, and protect the customer’s DUT. Both Channel could be monitored simultaneously as well. *Channel 3 does not support the output monitoring function.

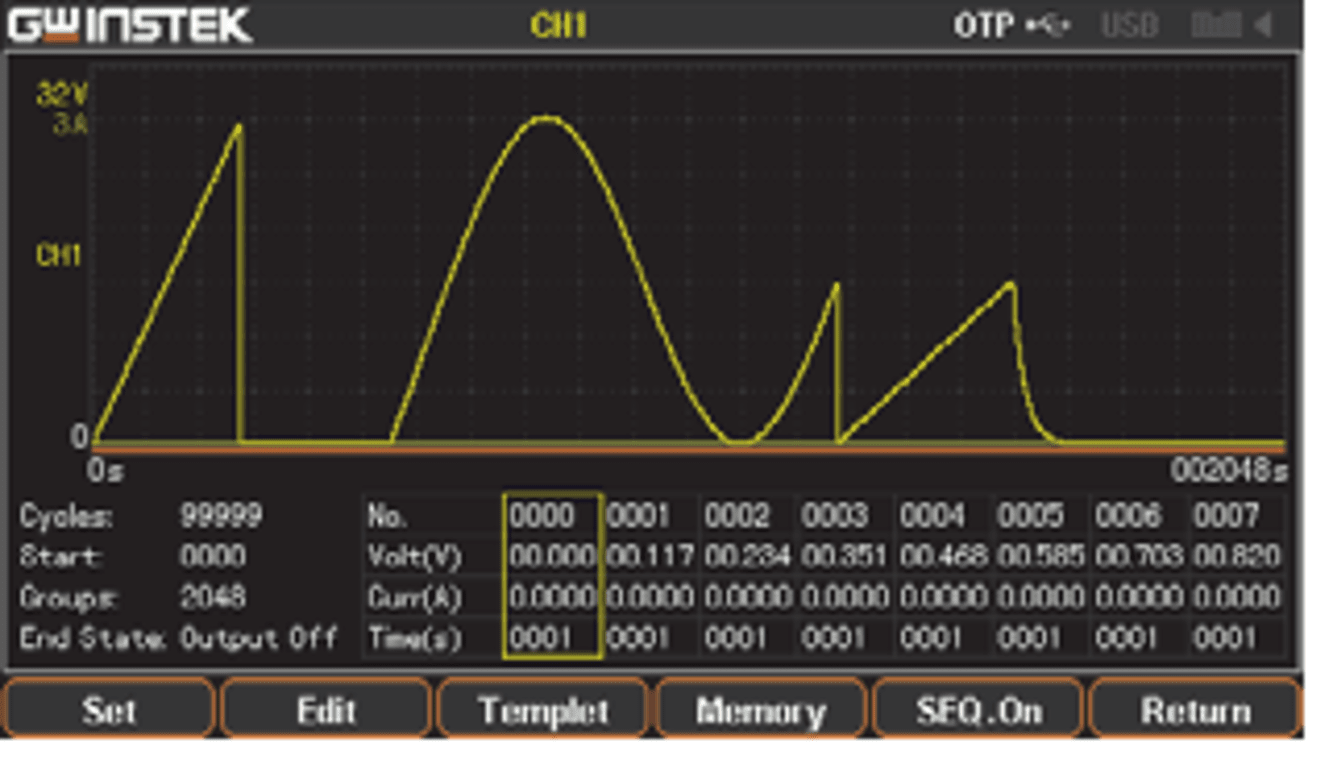

The GPP-Series provides a sequential output function on Channel 1 and Channel 2. This function not only allows users to edit the power output waveform but also allows users to set the sequential constant voltage (CV) or constant current (CC) load waveform, i.e., a serial power output or a simulation test of a dynamic load. The maximum settable points for the sequence function are 2048, and the interval range of each point can be set from 1 to 300 seconds. To simplify the setting of waveform editing, the GPP-Series has 8 built-in Templet waveforms in sequence output function for users to directly apply for output, including Sine, Pulse, Ramp, Stair Up, Stair Dn, Stair UpDn, Exp Rise, and Exp Fall waveforms.

The CH1/CH2 of the GPP series is designed with the load function. A single power supply can meet the basic battery charging and discharging test requirements. It can provide power output in channel 1 and channel 2. The rated constant voltage load (CV) rated constant current load (CC) and maximum 1k constant resistance load (CR) function is built-in to allow users to conduct the discharging tests without using an electronic load. In the application, users can also set either that one channel of the single GPP series as the power output, one channel as the load function to consume the power of the DUT, or that both channels as load functions to consume the power of different loads simultaneously.

Output delay function allows users to edit the timing waveform of the power output on/off when the front panel voltage and current settings are unchanged. In order to simplify the setting of waveform editing, the GPP-Series has three built-in timing modes in the delay output function, including Fixtime, Increase, Decline for users to apply directly. The editing data of the output delay can be stored in the internal 10 sets of memory, or to be saved by USB flash drive (Save/Recall) and saved as *.DLY or *.CSV file. The stored *.CSV can be exported into Excel for editing and analysis. The final edited file can be exported to (Save/Recall) of the power supply using a USB flash drive.
