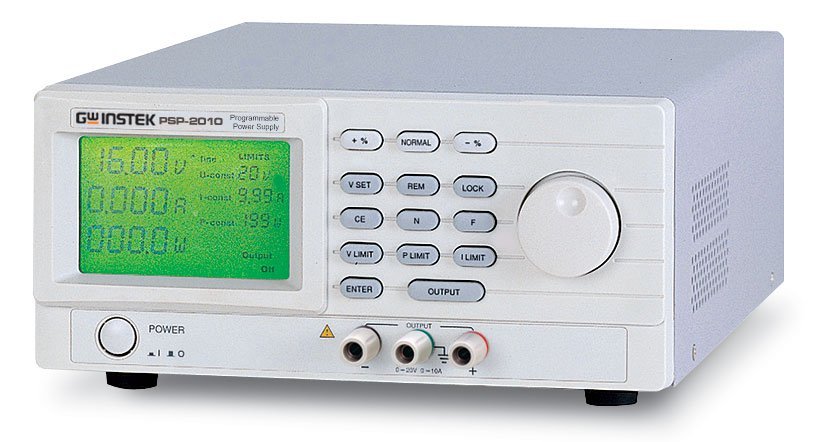

Instek PSP-2010 0-20V, 0-10A DC Power Supply
41 people are viewing this product right now
Original price was: $390.50.$370.97Current price is: $370.97.
Shipping calculated at checkout.
Estimated delivery:5 days
Power Supply, Programmable Switching, 0-20VDC, 0-10A, 200W
- 0-20V, 0-10A
- LCD display
- Output on/off control
- 3-step fan speed control
- Voltage/current/power settings
- Key lock to avoid operation error
- OVP, OCP & OPP protection
- Normal, +% & -% output operation key
- High efficiency and high power density
- Standard interface:RS-232C
- Optional European type jack terminal
Guarantee Safe and Secure Payment Checkout
Description
Instek PSP-2010 – 0-20V, 0-10A DC Power Supply
- Programmable switching power supply
- Backlit liquid crystal display
- EMV-tested and fulfills the requirements of the applicable European and national directive
The PSP-Series are single output, 200W, programmable switching DC power supplies. OVL, OCL, OTP, and OPL protect the PSP-Series and its loads from unexpected conditions. The PSP-Series have large LCD panel do display output and parameter simultaneously and a key lock feature to prevent changing the settings. The PSP-Series is suitable for generic bench-top applications in laboratories and educational institutions.
Power Supplies/DC Power Supplies Template | |
|---|---|
| Outputs | Single |
| Voltage Output 1 | Variable |
| Max Voltage Output 1 | 20 V |
| Programmable | Yes |
| Current Output 1 | Variable |
| Max Current Output 1 | 10 A |
| Meter Type | Digital |
| Switching | Yes |
| Linear/Switching | Switching |
| Constant current/voltage | No |
Product General Attributes | |
| Unique Features | Output ON/OFF Control 3 Step Fan Speed Control OVP, OCP & OPP Protection Key Lock to Avoid Error Operation Normal, +% & -% Output Operation Key High Efficinecy and High Power Density |
| Interfaces I/O | RS-232 Interfaces I/O Option: Jack Type Terminal for Europe |
| Product Weight | 4 KILOS (8.82 LBS) |
| Product Height | 305 MM (12.01 IN) |
| Product Length | 225 MM (8.86 IN) |
| Product Width | 100 MM (3.94 IN) |
| Data Logging | No |
| HTS/Schedule B Number | 8504409510 |
| ECCN Number | 3A992.a |
| Calibration Included | Factory Calibration |
| Country of Origin | Taiwan |
| Shipping Height | 7.00 IN |
| Shipping Length | 15.50 IN |
| Shipping Width | 12.50 IN |
