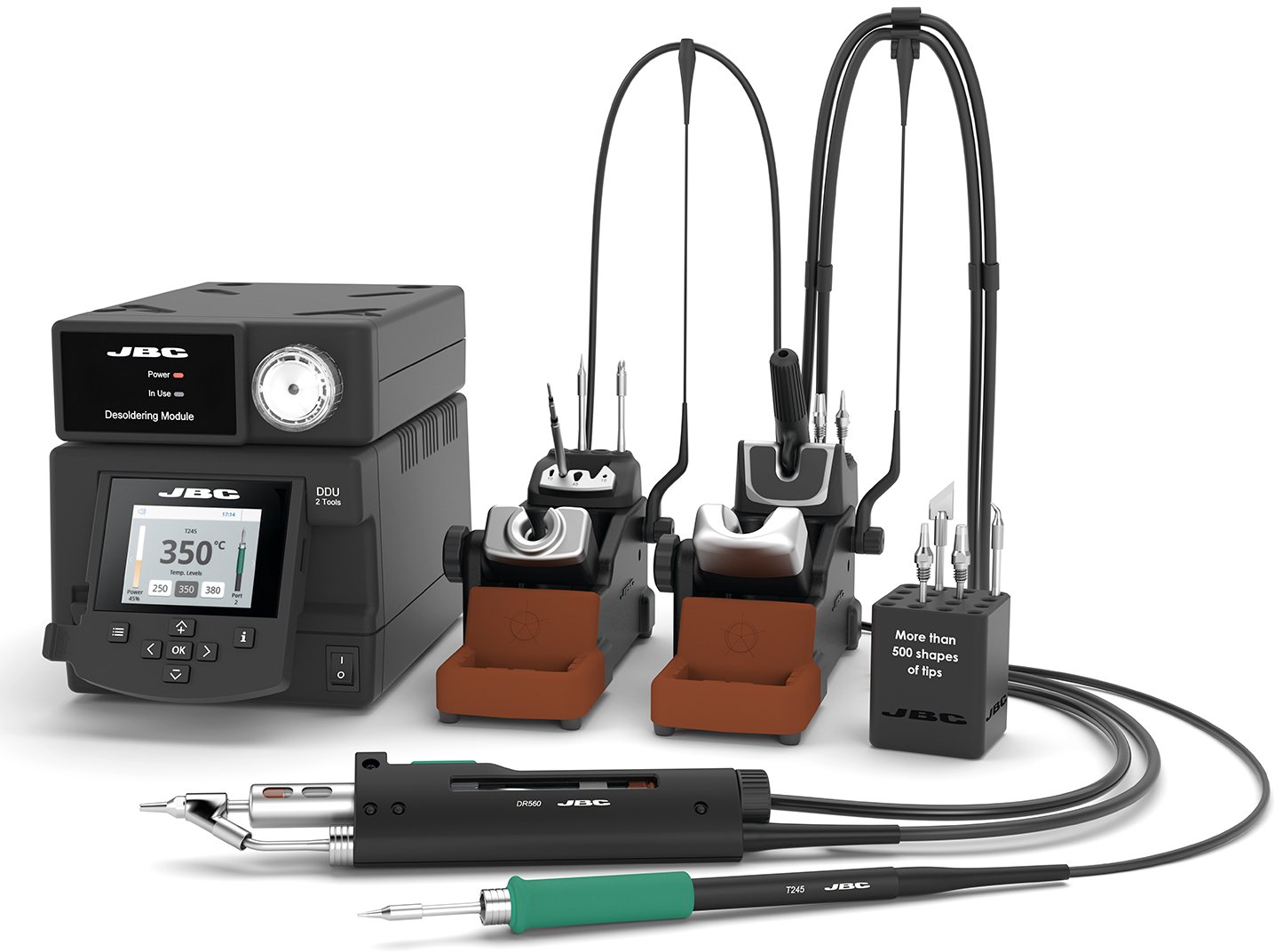

JBC DDSE-1QD – Two Channel Rework System with T245 and DR560 (Shop Air NOT Required)

• Two channel rework system

• Soldering and vacuum functionality
• Includes DDU two channel control unit
• Includes T245 iron and DR560 desoldering iron
• ***Unit has electric pump – does NOT require external source of compressed air***

The JBC DDSE-1QD is a two-channel rework system. The DDSE-1QD includes the T245-A general purpose iron (tips sold separately), DR560-A desoldering iron (with C560003 nozzle), as well as the MSE-A electric desoldering module. Since this system has an electric pump, the DDSE-1QC does NOT require an external source of compressed air.

To view compatible tips and nozzles, please see the links below:

• T245-A iron uses C245 tips – click here
• DR560-A uses C560 nozzles – click here

Note regarding C245 tips – the accessories section of this page contains only the most common C245 tips, as there is a very large number of shapes and sizes available. NESTES Instruments does carry the full C245 series – please refer to the document linked above which lists all available models and search via the search bar at the top of this page for additional items.

The DDU Control Unit manages up to 2 tools simultaneously and is fully compatible with 10 different JBC tools. It works with JBC Exclusive Heating System and the intelligent Sleep and Hibernation Modes.

The station features all the Excellence Range benefits such as station customization, full control of soldering processes and remote work management.

This station includes two stands with a complete cleaning system – a Tip Cleaner with brass wool, as well as, splashguard and anti-splash membrane to keep the work area clean and free of solder particles. Quick Cartridge Changer enables a safe, easy and quick cartridge exchange which, combined with Cartridge Holder, allows you to store up to four cartridges. Also, the station includes a SCH Cartridge Holder to store up to 16 cartridges and tips nearby.

• Stand automatic detection makes the tools entering in Sleep & Hibernation mode when not being used.
• Sleep lowers tip temperature below solder melting point, preventing tips iron dissolution into solder.
• Hibernation cuts off power supply making the tip to reach room temperature thus preventing oxidation and saving energy.

• Extend tip life lowering the temperature while the tool is not being used.

• JBC tips last 5 times longer than other brands thanks to the Exclusive Heating System and Sleep & Hibernation mode.

The DDU offers an intuitive user interface which provides quick access to station parameters.
