JBC DMSE-1QB – 4 Channel Soldering Station with T245 and DR560 (Shop Air Not Required)

• Four channel soldering station
• Soldering and vacuum functionality
• Shop air NOT required to operate
• Includes DR560 desoldering iron (with 1 nozzle)
• Includes T245 handle (tips sold separately)

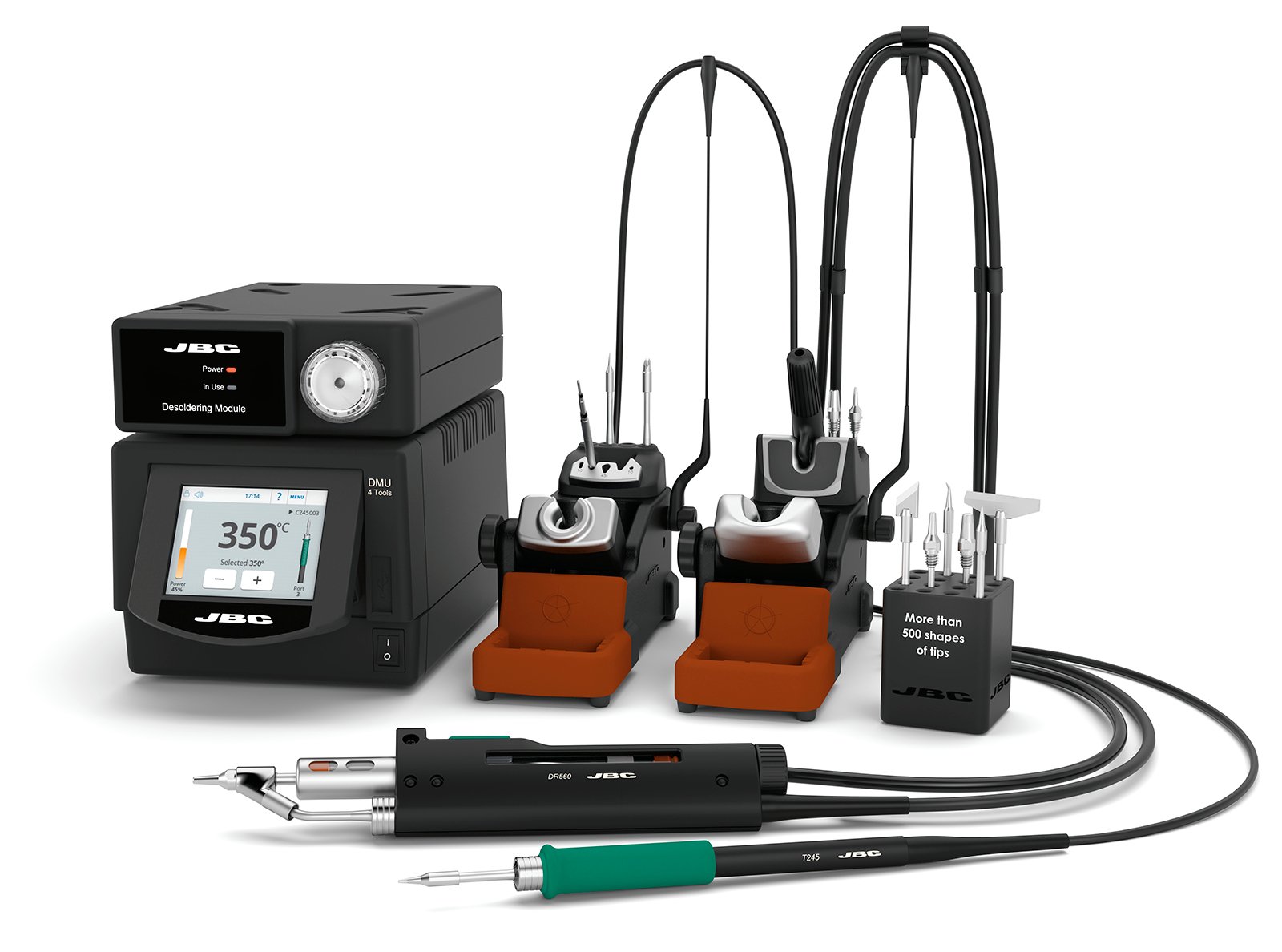

The JBC DMSE-1QB is a four channel system with soldering and vacuum functionality. The DMSE-1QB includes a DMU four channel control station, T245 handle and DR560 desoldering iron. It also includes an MSE electric desoldering module, therefore shop air is NOT required for operation.

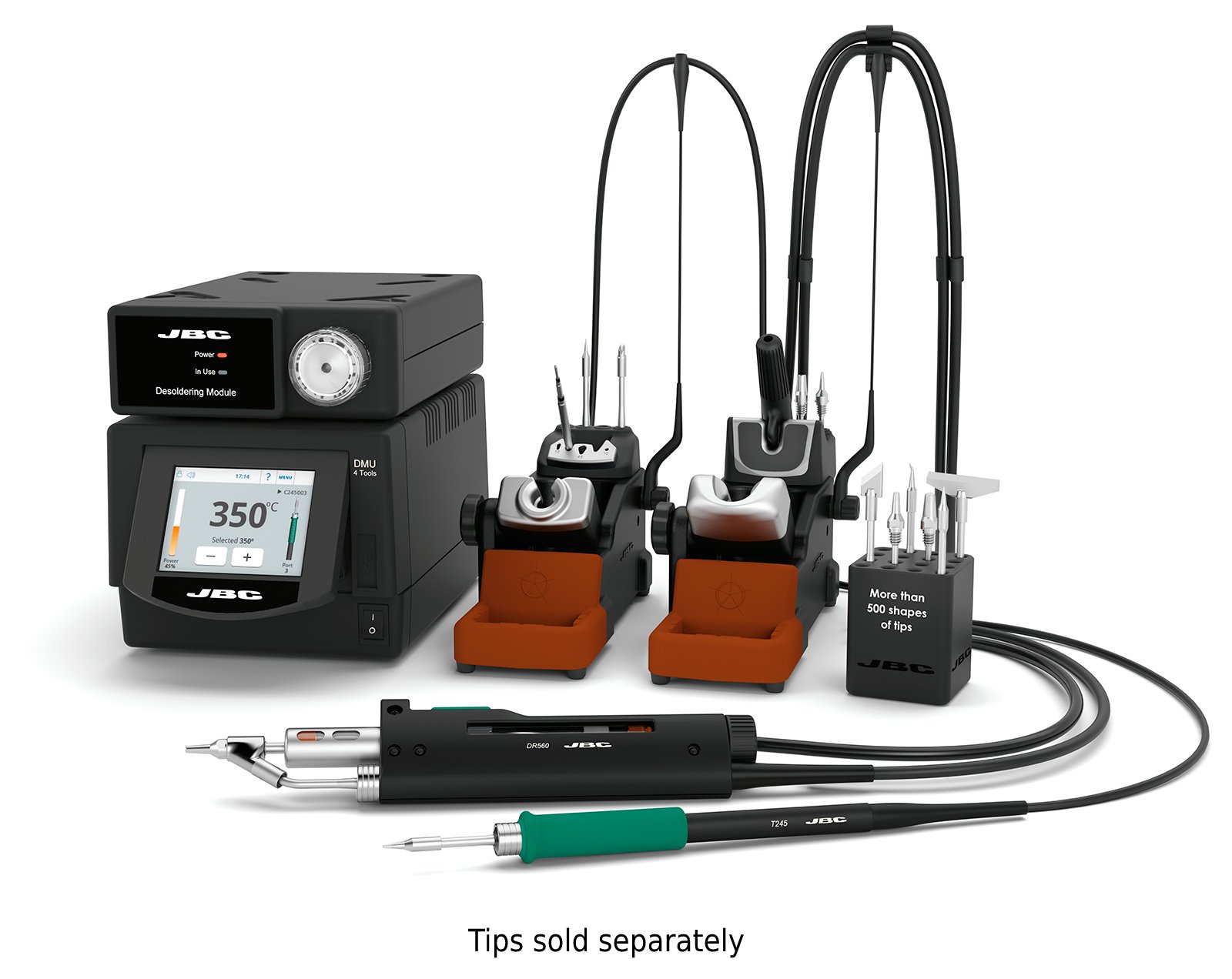

Please note, tips are sold separately for the T245-A handle. The DR560-A desoldering iron includes a C560003 already installed.

To view compatible tips and nozzles, please see the links below:

• T245-A iron uses C245 tips – click here
• DR560-A uses C560 nozzles – click here

Note regarding C245 tips – the accessories section of this page contains only the most common C245 tips, as there is a very large number of shapes and sizes available. NESTES Instruments does carry the full C245 series – please refer to the document linked above which lists all available models and search via the search bar at the top of this page for additional items.

• Stand automatic detection makes the tools entering in Sleep & Hibernation mode when not being used.
• Sleep lowers tip temperature below solder melting point, preventing tips iron dissolution into solder.
• Hibernation cuts off power supply making the tip to reach room temperature thus preventing oxidation and saving energy.

• Extend tip life lowering the temperature while the tool is not being used.
• JBC tips last 5 times longer than other brands thanks to the Exclusive Heating System and Sleep & Hibernation mode.

The DME-A offers an intuitive user interface which provides quick access to the station parameters.

Press the station information button (?) to get information of the different features being displayed.
