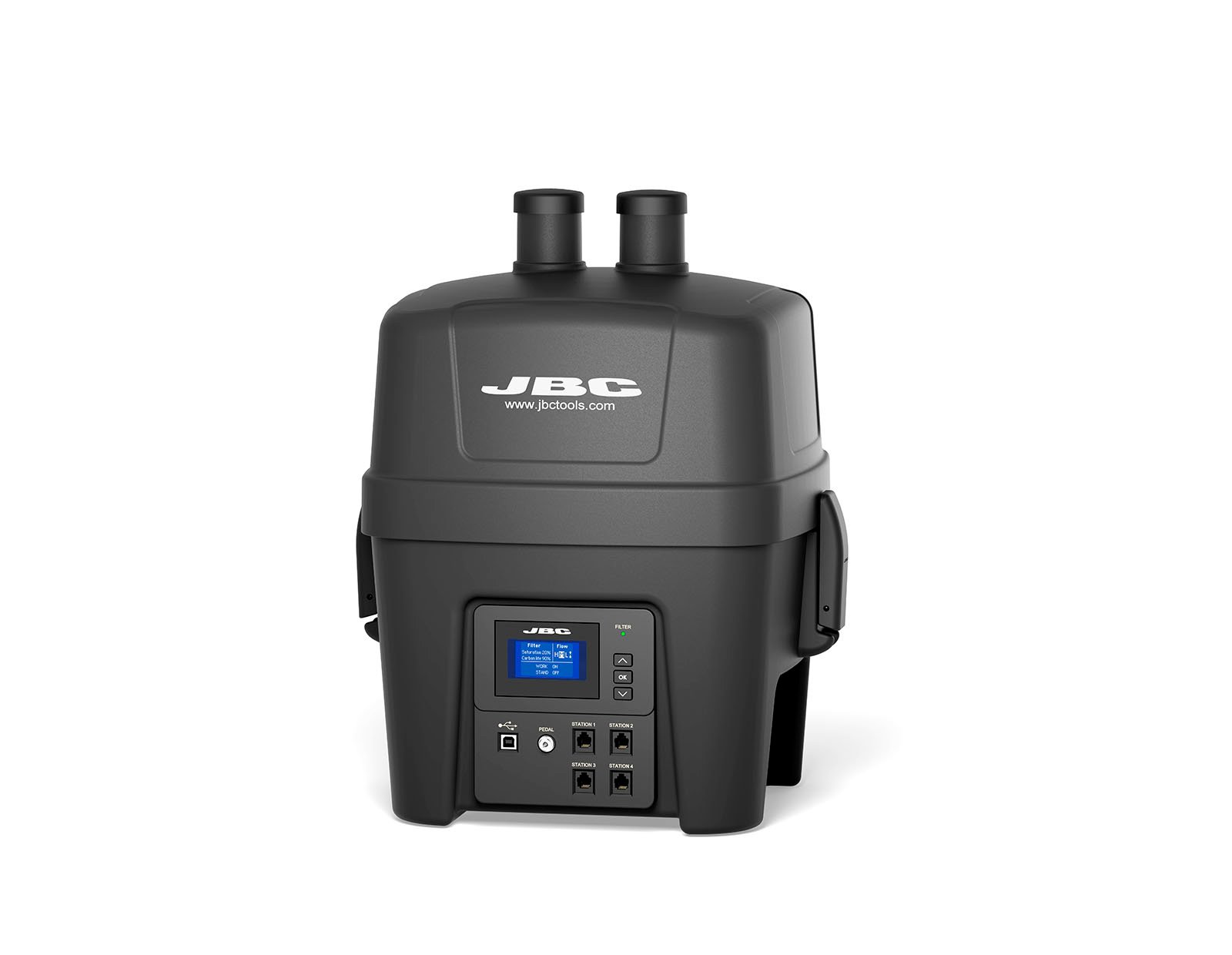

JBC FAE1-1B – Fume Extractor (Hoses / Nozzles Sold Separately)
36 people are viewing this product right now
Original price was: $2,035.00.$1,831.50Current price is: $1,831.50.
Shipping calculated at checkout.
Estimated delivery:4 days
Fume Extractor -1 wbench- 120V
- Fume extraction system
- Nozzles / hoses sold separately
- Four flow rates – low, medium, high, custom
- Four operation modes – automatic, continuous, pedal, RS-232 control
- 106 CFM flow rate
- 0.46 PSI maximum vacuum
- 55db sound level
Guarantee Safe and Secure Payment Checkout
Description
JBC FAE1-1B – Fume Extractor (Hoses / Nozzles Sold Separately)
The JBC FAE1-1B is versatile fume extraction system, offering users a high level of control and functionality. The FAE1-1B can be set up in several different configurations with multiple compatible hose and nozzles styles. Please note, hoses and nozzles are sold separately.
High level of control
The FAE1-1B enables users to customize the machine to their specific application. It is capable of four different flow rates – low, medium, high and custom.
It also offers four operation modes:
- Automatic – the FAE1-1B will turn on and off automatically as soldering starts and stops. Certain stations will also require the QSC-A
- Continuous – the machine is turned on and operates until it is turned off
- Pedal – users can control the machine with a P-005 foot pedal
- RS-232 remote control
Can be used in many configurations
The JBC FAE1-1B can be set up in a variety of different manners and is compatible with several different styles of fume extraction hoses. Please note, hoses and nozzles are sold separately.
The image below shows the different ways it is possible to configure the FAE1-1B. You can click on each part number for more information about that specific item.
| Ø 50 mm Flexible Arm (Ref. FAE020 or FAE070) Ref. FAE020 Ref. FAE070 Ø 50 mm Flexible Hose Ref. FAE010 Fume Extractor 100 V / 120 V – Ref. FAE1-1A *Stations with only a USB-B communication port require a QSC controller in order to be connected to FAE fume extractors. See more detailed information in the next link: QSC-A |  | Accessory for Stand Aspiration (Ref. FAE030 or FAE040) Ref. FAE030 Ref. FAE040 Stand Aspiration Ducts (Ref. FAE050 or FAE060) Ref. FAE050 |
Soldering Equipment/Fume Extraction Template | |
|---|---|
| Type (Fume Extraction) | Bench-Top, Floor Unit |
| Number of Ports | 2 |
| Max Number of Users | 2 |
| Filter Selection | Carbon Filter, HEPA, Multi-Stage, Pre-Filter |
| Variable Speed Control | Yes |
| Maximum Vacuum /Suction | 106 |
| Noise Level | 55 dB |
Product General Attributes | |
| Warranty | 2 YEARS |
| Safety Approval | CE |
| HTS/Schedule B Number | 85086000 |
| Power Supply Voltage | 120V 50/60 Hz |
| Country of Origin | Spain |
