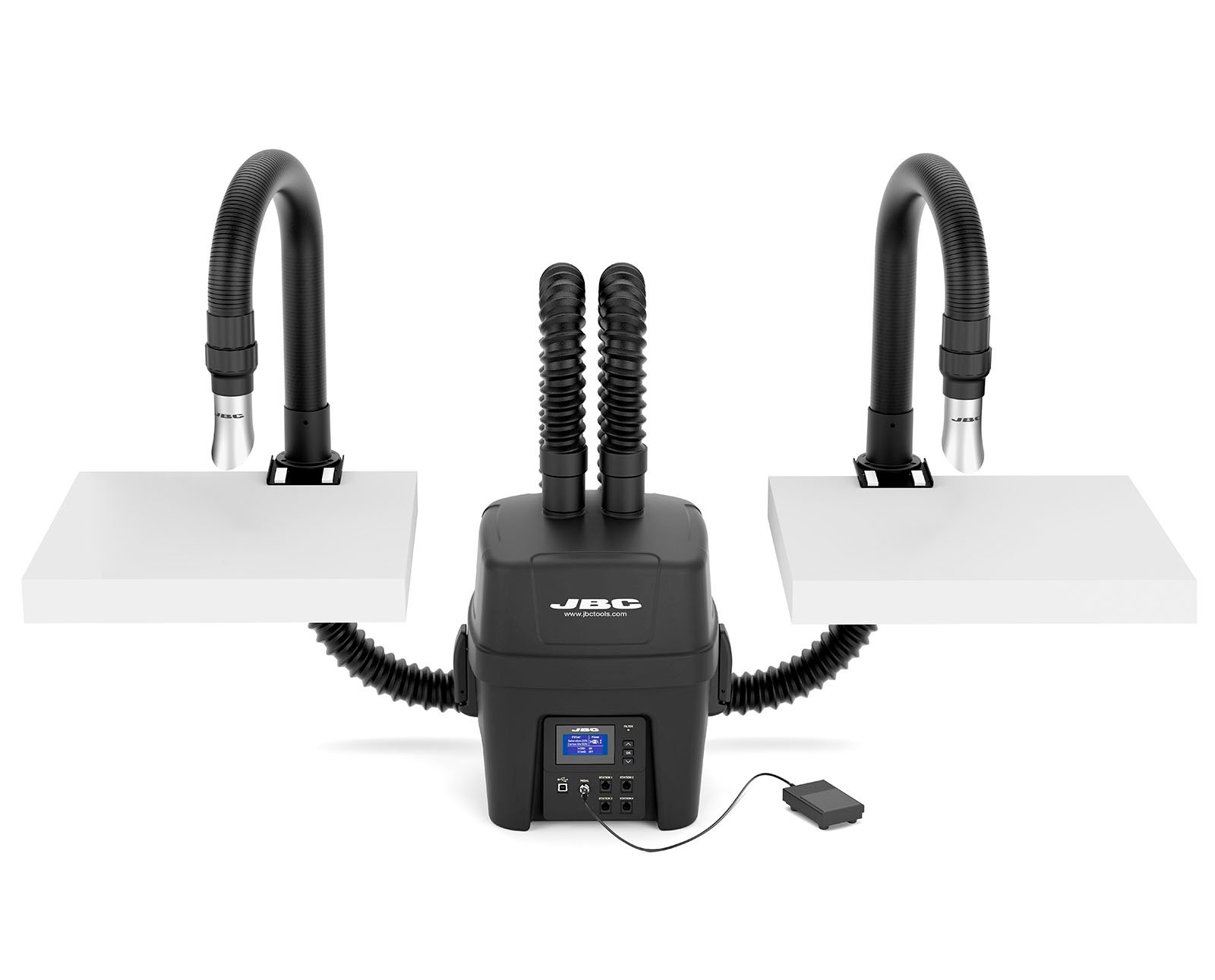

JBC FAE1 KIT2 – Fume Extractor Kit for 2 Workbenches (Part # FAE1-1K2B)

• Fume extractor kit for two workbenches
• Includes fume extractor, filters, arms, foot pedal and more
• Can be connected to a compatible JBC soldering station to turn on/off as tools are used
• Includes P405 foot pedal for activation without connection to a JBC station
• Three layered filtering system for certified efficiency of 99.95% in filtering soldering fumes

The JBC FAE1 KIT2 is a fume extractor kit for two workbenches. The FAE1 KIT2 comes with everything you need to get started, including:

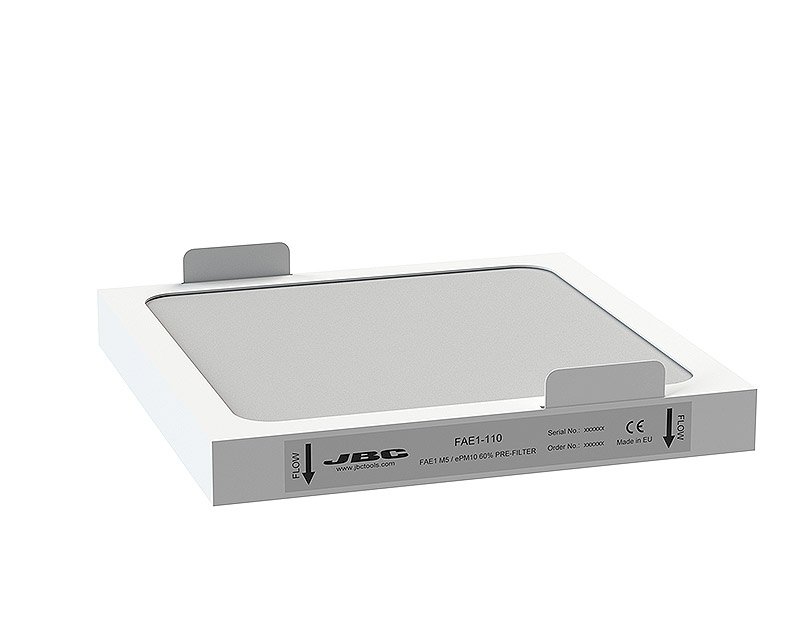

• FAE1110 pre-filter

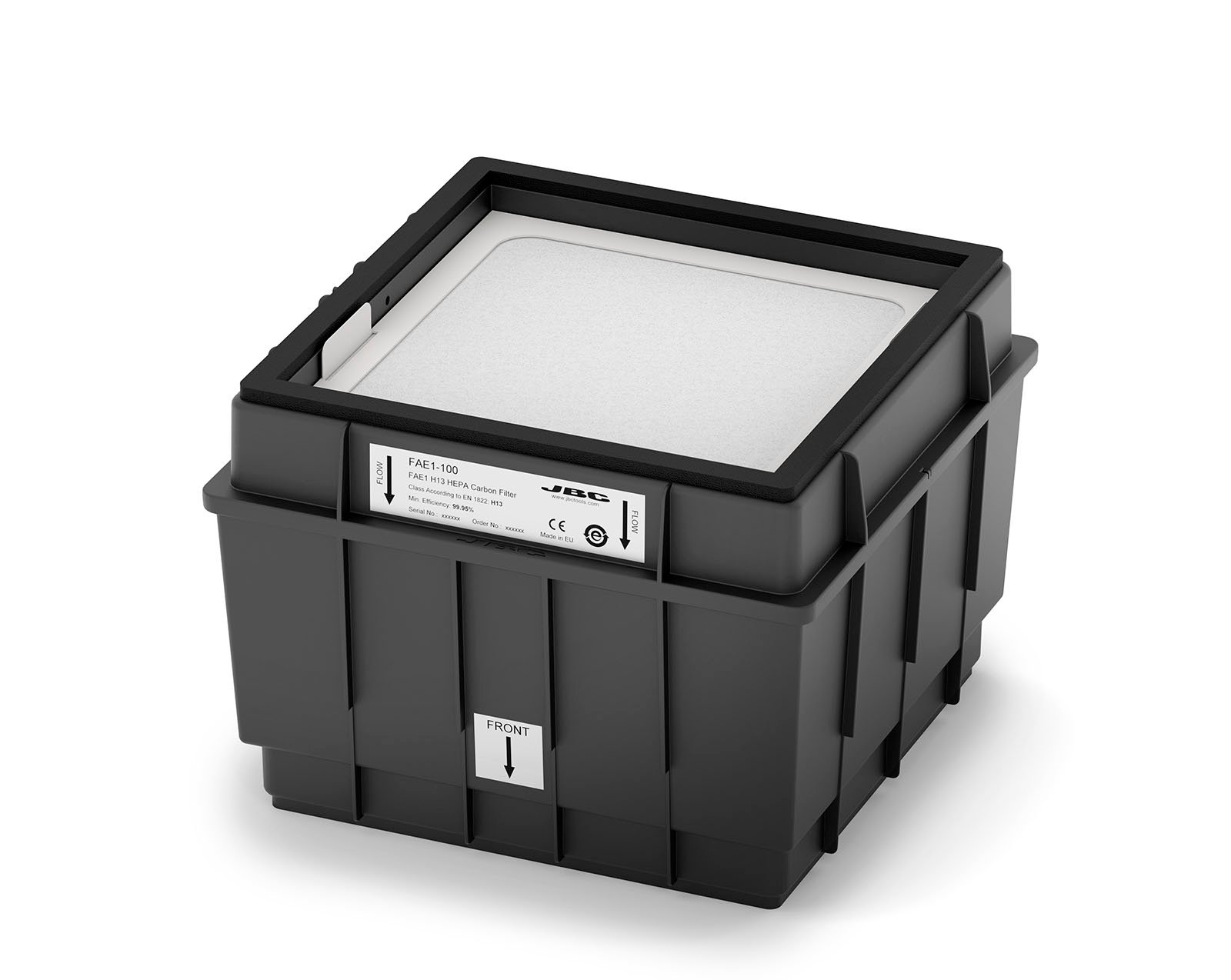

• FAE1100 filter (HEPA H13 + Carbon)
• Two FAE010 flexible extraction hoses

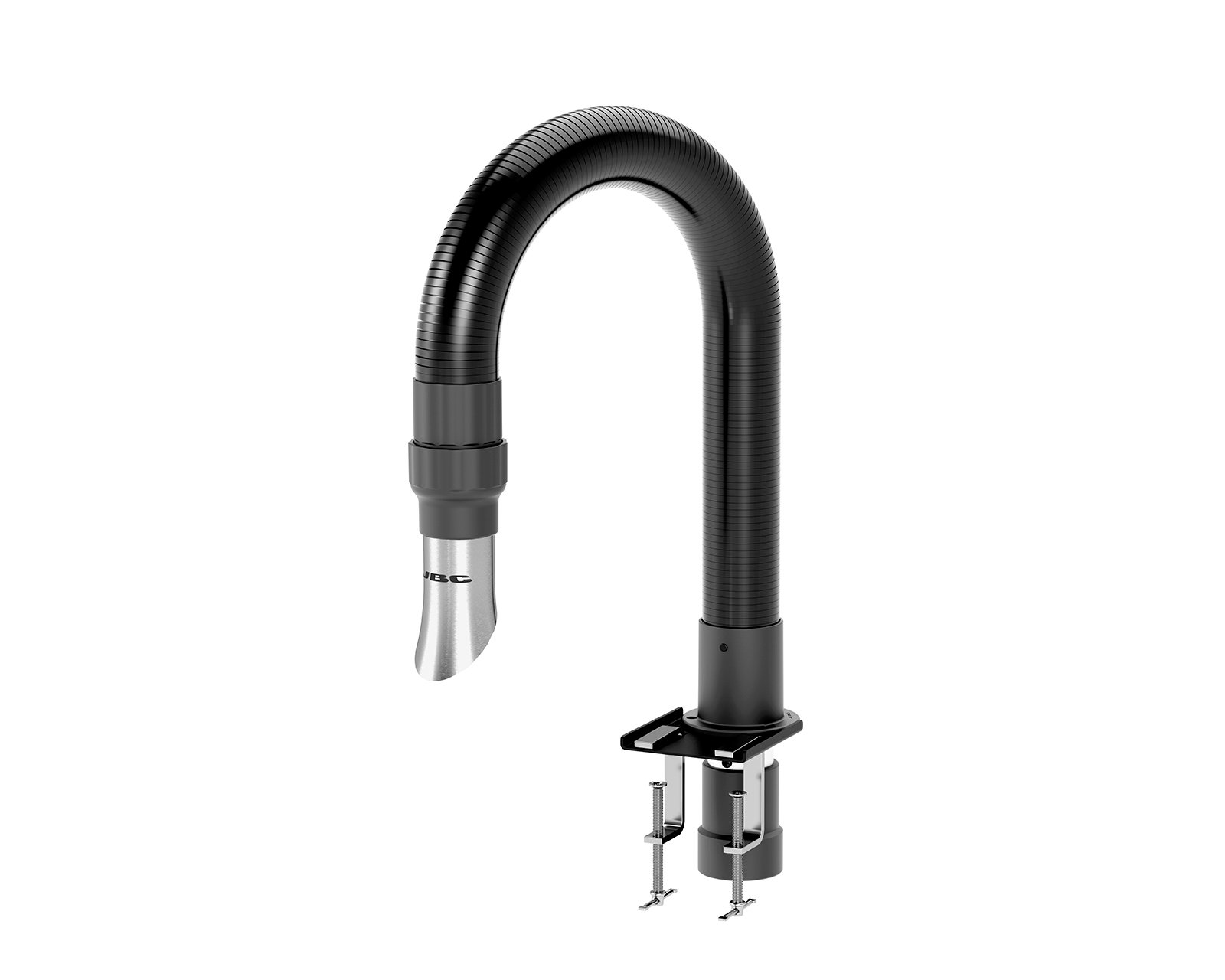

• Two FAE070 flexible arms (connects to bench with supplied clamp)
• P405 foot pedal (activates system when not connected to a JBC station)

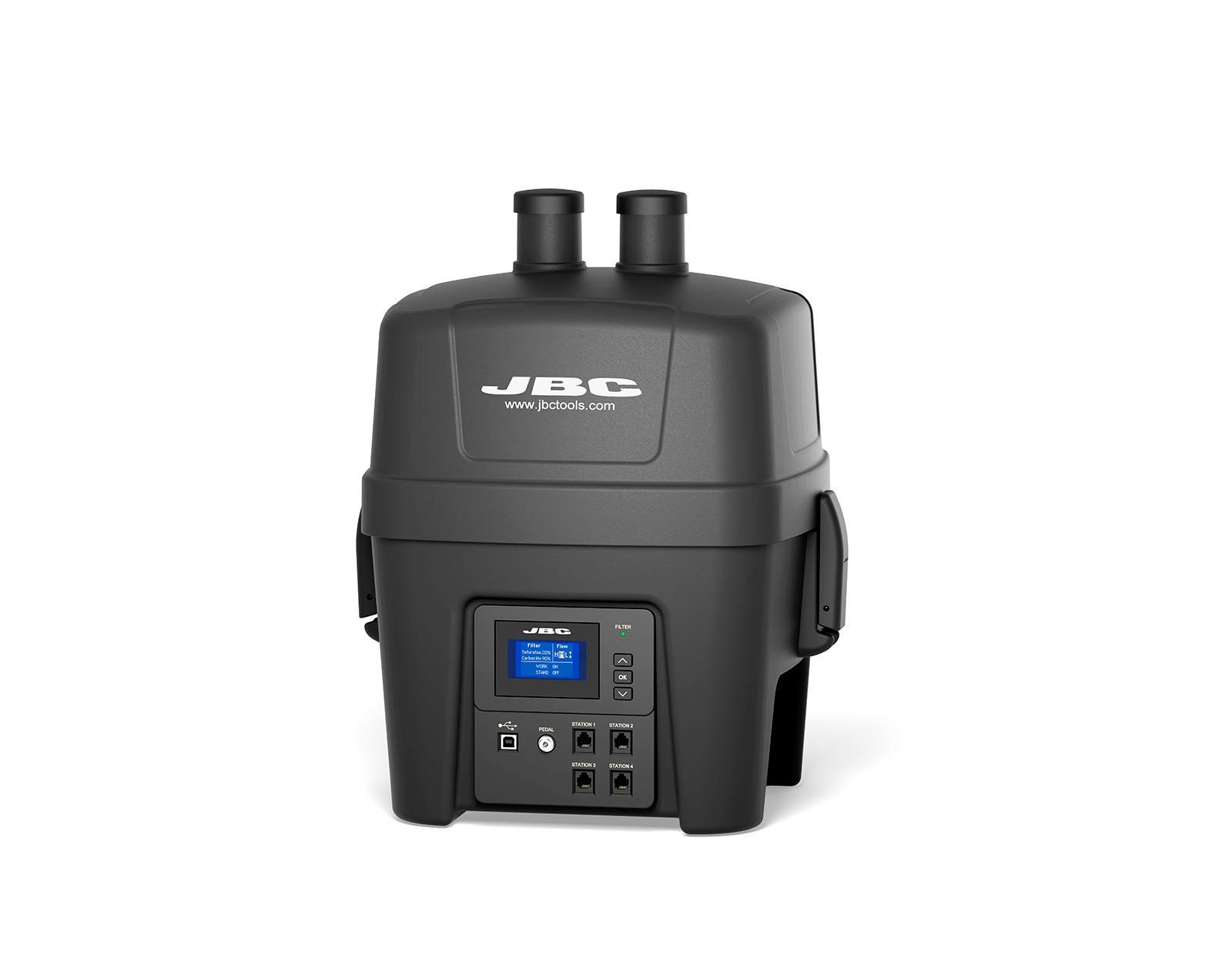

The FAE is the most effective solution to avoid exposure to solder fumes. When connected with a compatible JBC soldering station, fume extraction starts when the tool is lifted from the stand, operating only when soldering. This function saves power and extends filter life. The extractor can also be operated with a foot pedal, as well as placed in a continuous mode.

1. Process screen

2. Filter saturation indicator (green: OK; yellow: ≤ 20% carbon lifetime or about to saturate; red: end of carbon lifetime or filter saturated)

3. RJ12 Premium station connections

4. Pedal connection

5. USB-B Compact station connection
