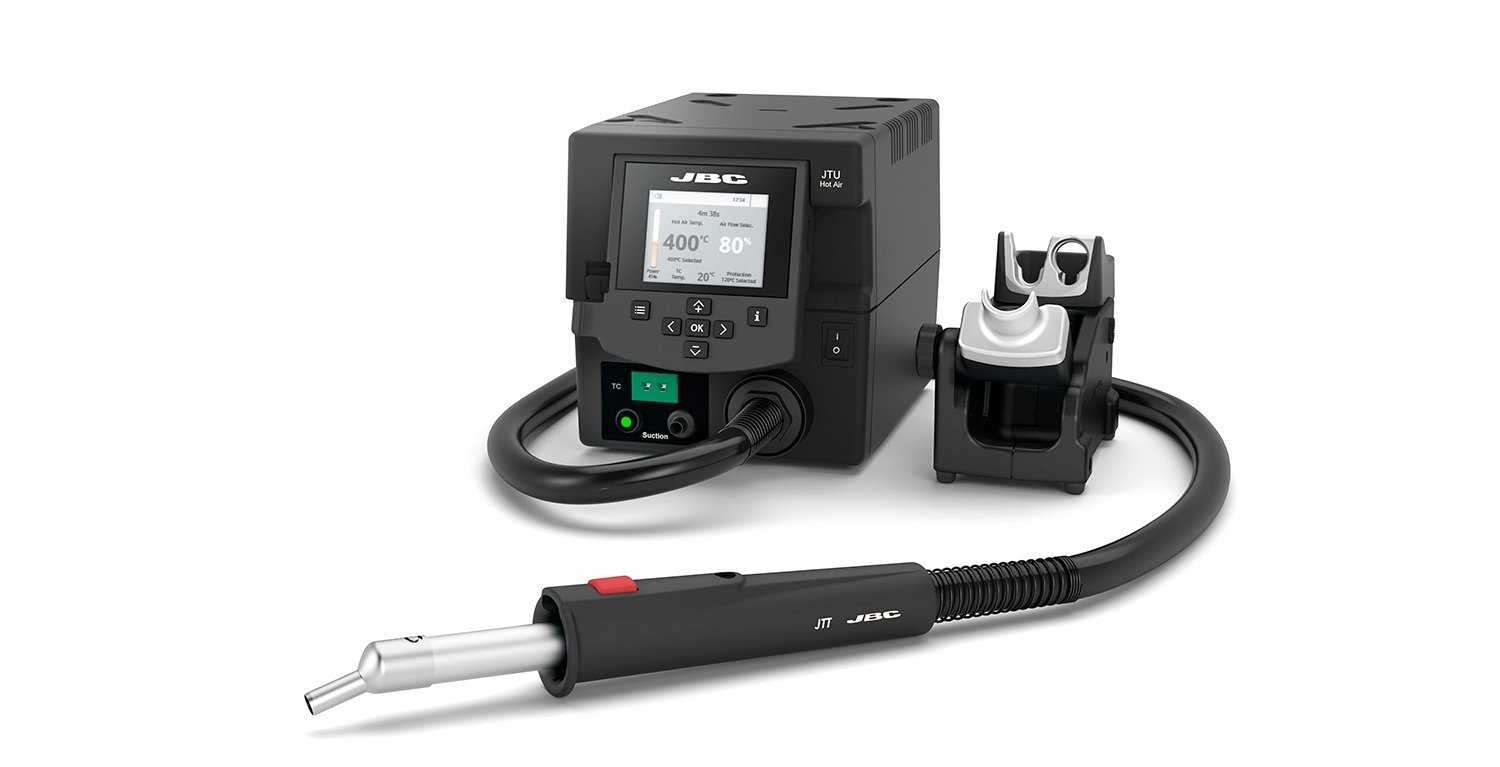

JBC JTSE-1QB – Hot Air Station without Extractor Desk

• Hot air station
• This model does not include the extractor desk
• Designed for work with all sizes of surface mount components, including QFPs and PLCCs
• Memory for up to 25 temperature profiles
• Automatically turns off when tool is placed in a stand

The JBC JTSE-1QB is a hot air station for repairing all types of SMDs quickly and safely, including the biggest QFPs and PLCCs. Please note, that this model does not include the extractor desk.

For compatible nozzles, click here

For protectors, click here

For extractors, click here

Profiles Mode

There are two work modes to choose from – manual and profile. In manual mode, the operator can set temperature values and airflow rate depending on the task. In the profile model, the operator can set up and edit as many as 25 profiles for temperature and airflow.

Control Thermocouple

Users can read the temperature at a specific point on the PCB with the control thermocouple. This helps protect components or a specific area on the PCB, and provides greater precision when regulating the temperature.

There are two work modes available for use with the control thermocouple:

Auto-Stop Function

The auto-stop function is a safety measure that guarantees the heat is automatically cut off when the tool is in the stand. This also means you save power and extend the life of the tip. There is also an auto-start feature. When selected, the tool automatically heats up when lifted from the stand.
