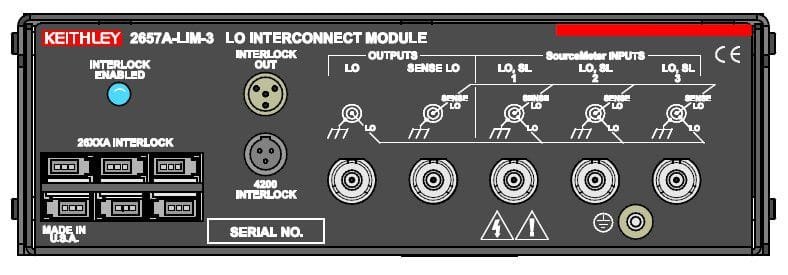

Keithley 2657A-LIM-3 – Low Interconnect Module

• DC current carrying capability: 1.5 A maximum
• Pulse current carrying capability: 10 A at 1% duty cycle
• Maximum voltage between LO and chassis ground*: 3000 V

The Keithley 2657A-LIM-3 LO Interconnect Module establishes measurement commons (LO and sense LO) for a test system using multiple source-measure units (SMUs) that include at least one Model 2657A High Power System SourceMeter Instrument.
