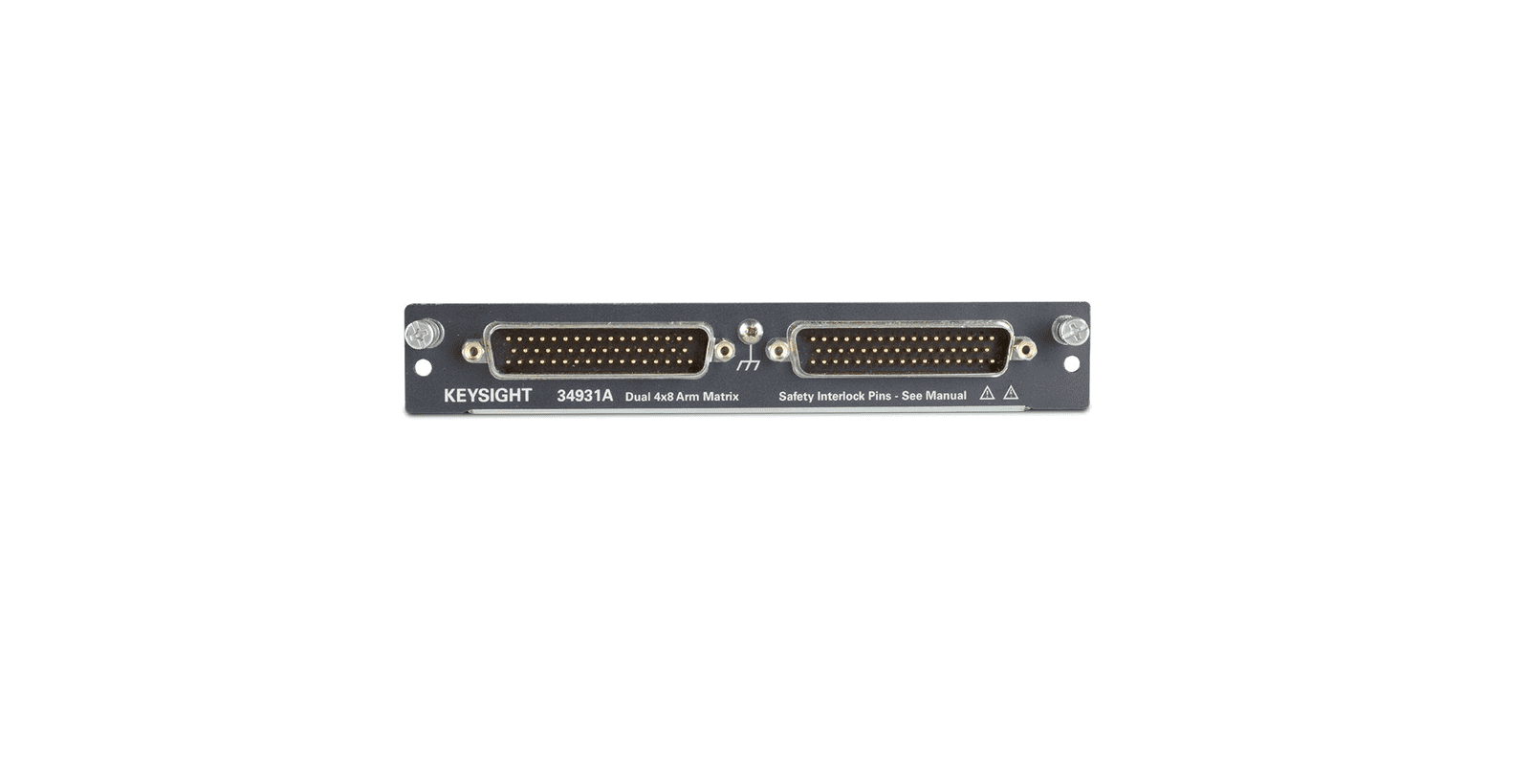

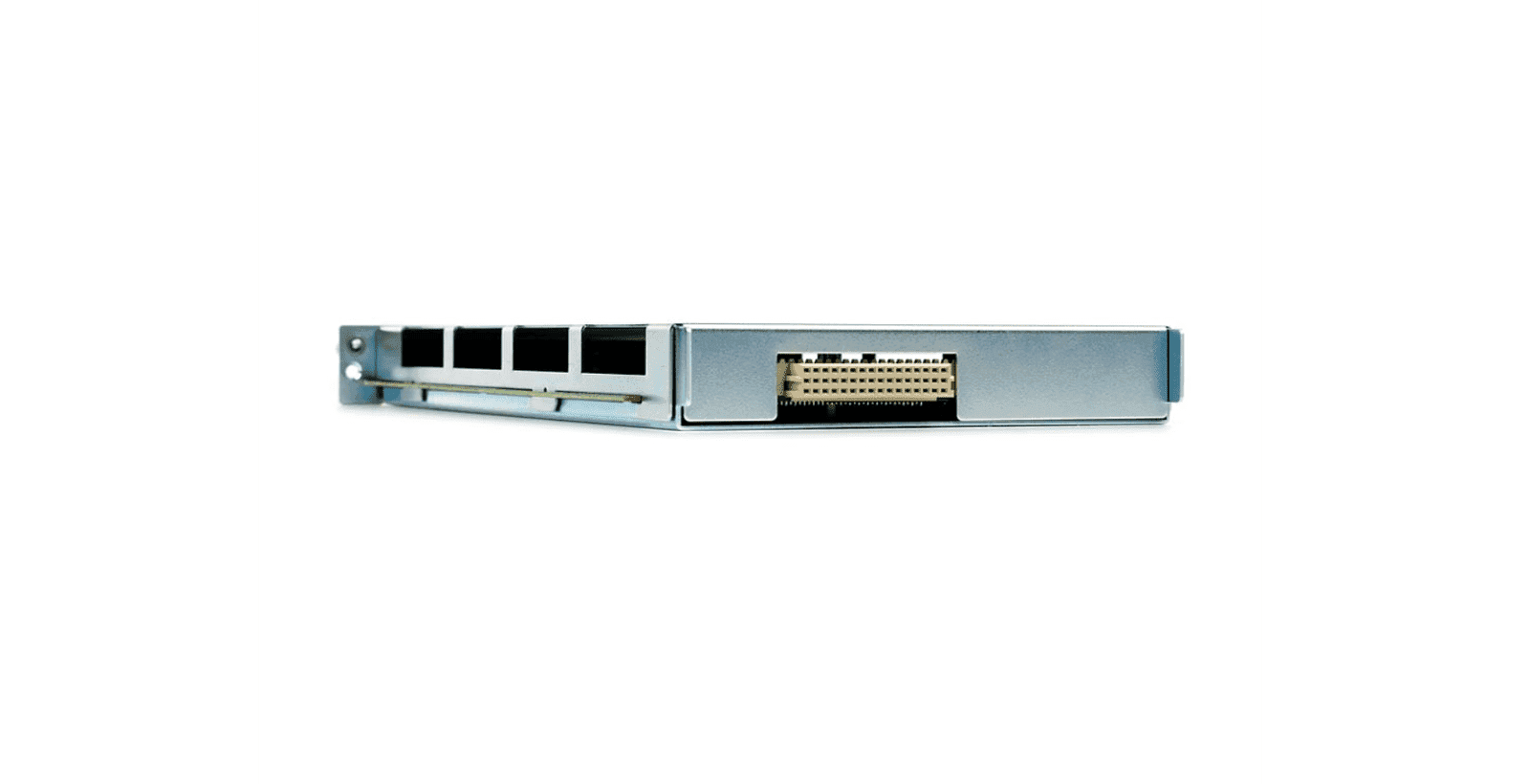

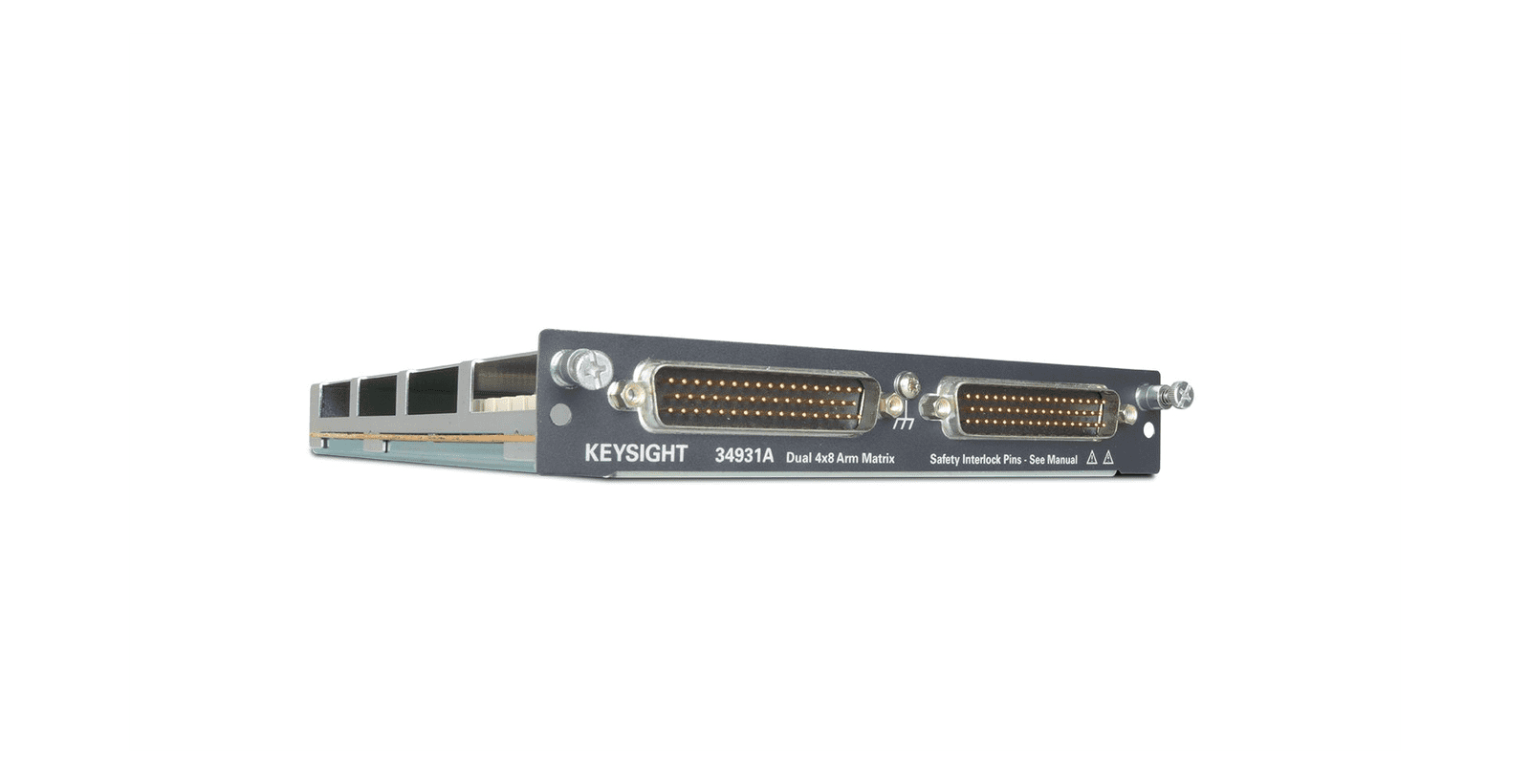

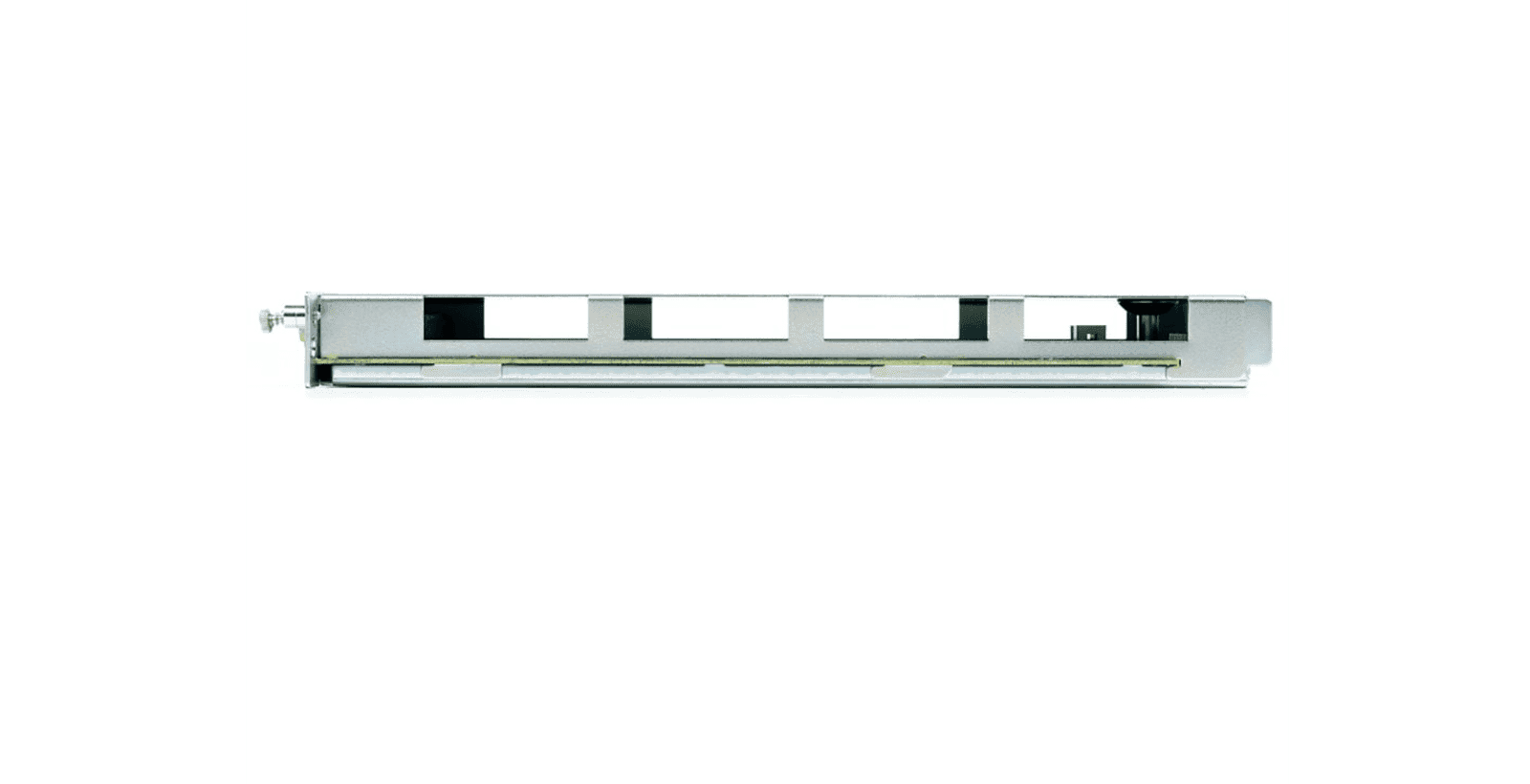

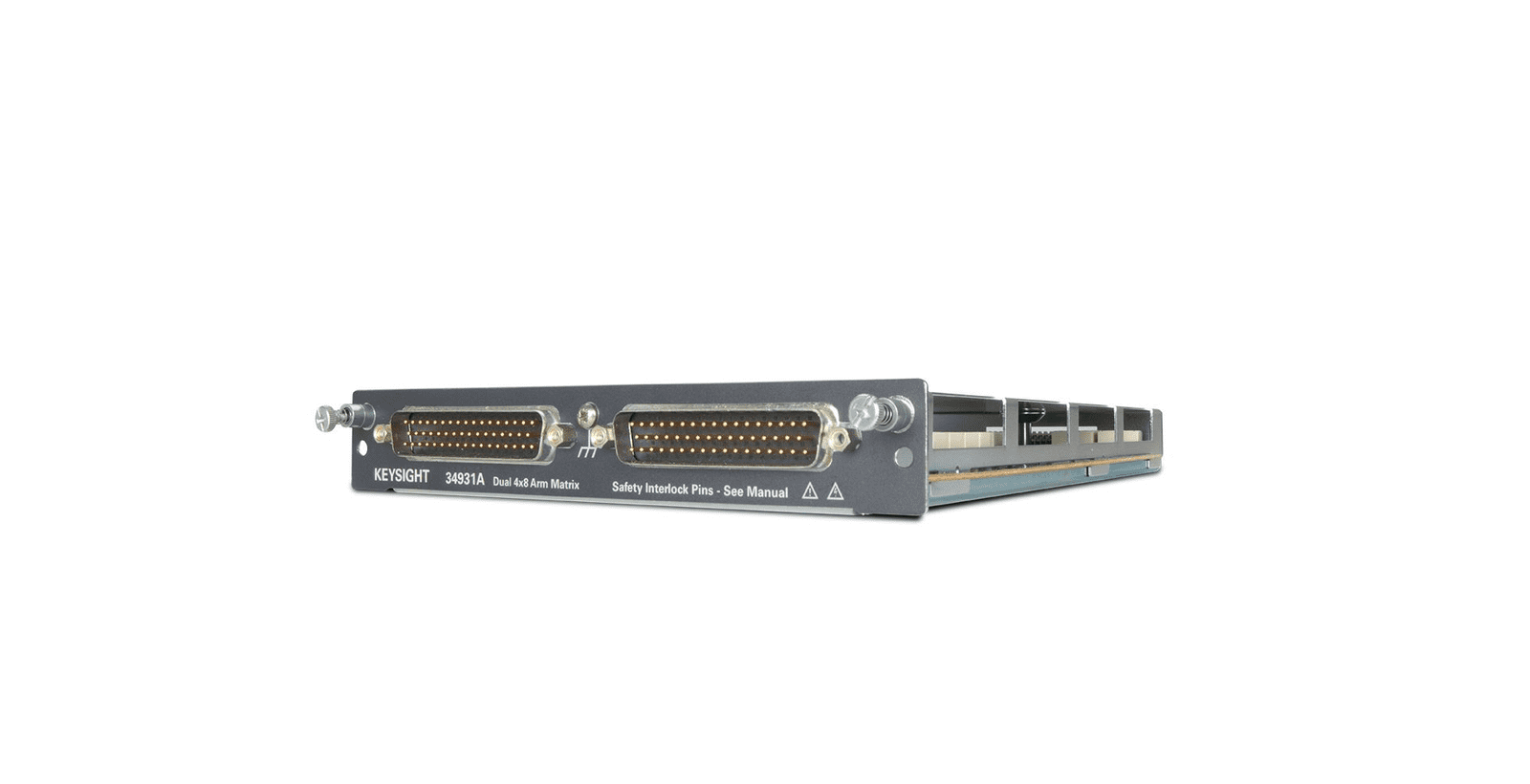

Keysight 34931A – Dual 4×8 Armature Matrix for 34980A

The 34931A dual 4×8 armature matrix contains two matrices, each with 32 2-wire crosspoint latching armature relays organized in a 4-row by 8-column configuration. Every row and column are made up of two wires each, a high (H) and a low (L). Each crosspoint relay has a unique channel number representing the row and column that intersects to create the crosspoint. For example, channel 304 represent the crosspoint connection between row 3 and column 4 (all columns consisting of two digits; in this case the digits are 04).

You can connect any combination of inputs and outputs at the same time. However, only Matrix 2 in this module connects to the Analog Buses. By closing channels 921 and 922 you can connect rows 5 and 6 respectively to the internal DMM of the 34980A mainframe for voltage and resistance measurements. You can connect multiple matrix modules externally and/or through the Analog Buses for applications that require large matrices.

When the power is off, matrix relays maintain state, and Analog Bus relays open.

For additional information on the 34931A, please see the document linked here beginning on page 27.

The chart below provides an overview of matrix modules for the 34980A.
