Keysight 34938A – 20-Channel 5A Form A Switch for 34980A
46 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:4 days
Twenty Channel 5 Amp Form A Switch Module for 34980A
- Module for 34980A (sold separately)
- 20 Form A channels up to 5 A, 150 W
- Armature latching relays, with relay counter
- Temperature sensor for overheating conditions
- Simultaneous channel switching
Guarantee Safe and Secure Payment Checkout
Description

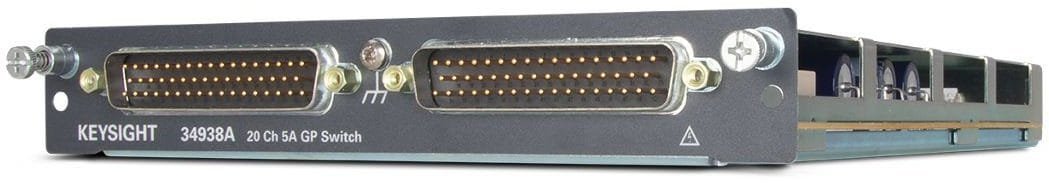

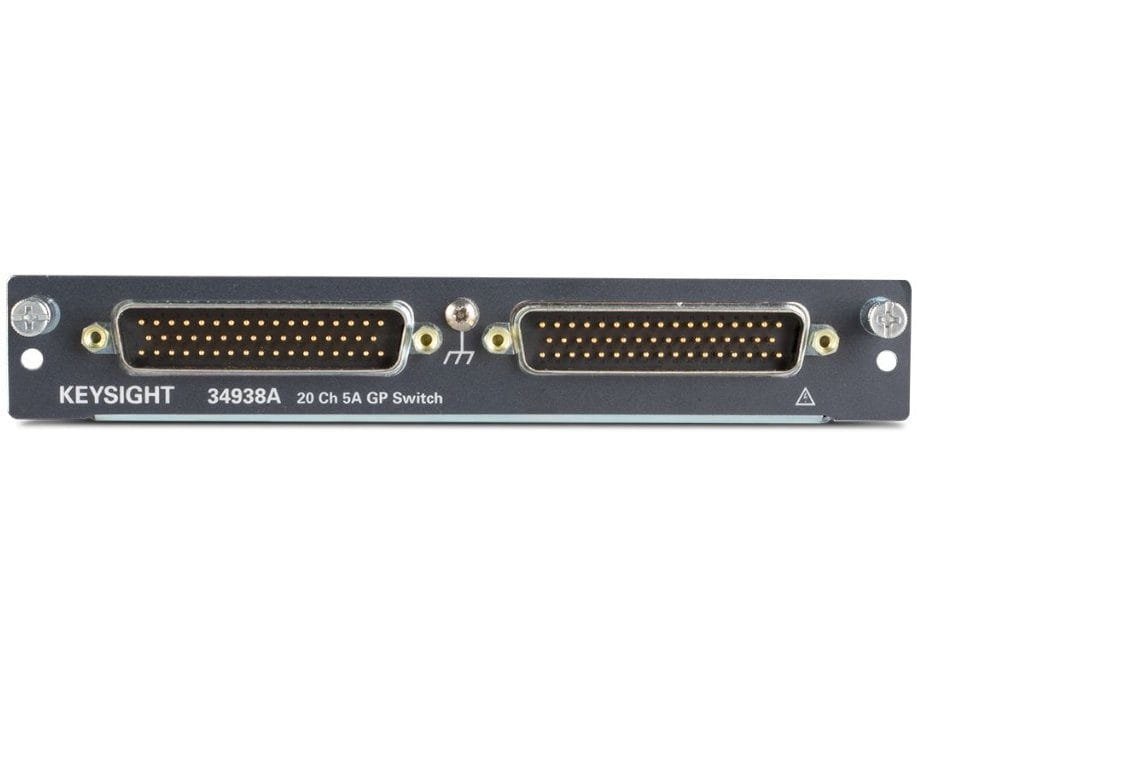

Keysight 34938A – 20-Channel 5A Form A Switch for 34980A
The Keysight 34938A is a high power general-purpose switch module for the 34980A Multifunction Switch/Measure Unit.
It has 20 independent single-pole, single-throw (SPST) 5A relays. This module is used to cycle power to products under test, control indicator and status lights, and to actuate external power relays and solenoids. Its 30 VDC/250 VAC, 5A contacts can handle up to 150W on a single channel, enough for many power line switching applications.
Standard 50-pin Dsub connectors allow for use with standard cables, terminal blocks, or mass interconnect solutions.
34980A general purpose / actuator switch modules
The chart below outlines main features of general purpose / actuator switch modules for the 34980A.
| Model | Description | Max voltage | Switch/carry | Scan ch/sec |
| 34937A | 28-channel Form C and 4-channel Form A | ±300V/±250VAC | 1A/2A/5A | N/A |
| 34938A | 20-channel 5-amp Form A | ±250VAC | 5A/8A | N/A |
| 34939A | 64-channels Form A | ±100VAC | 1A/2A | N/A |
