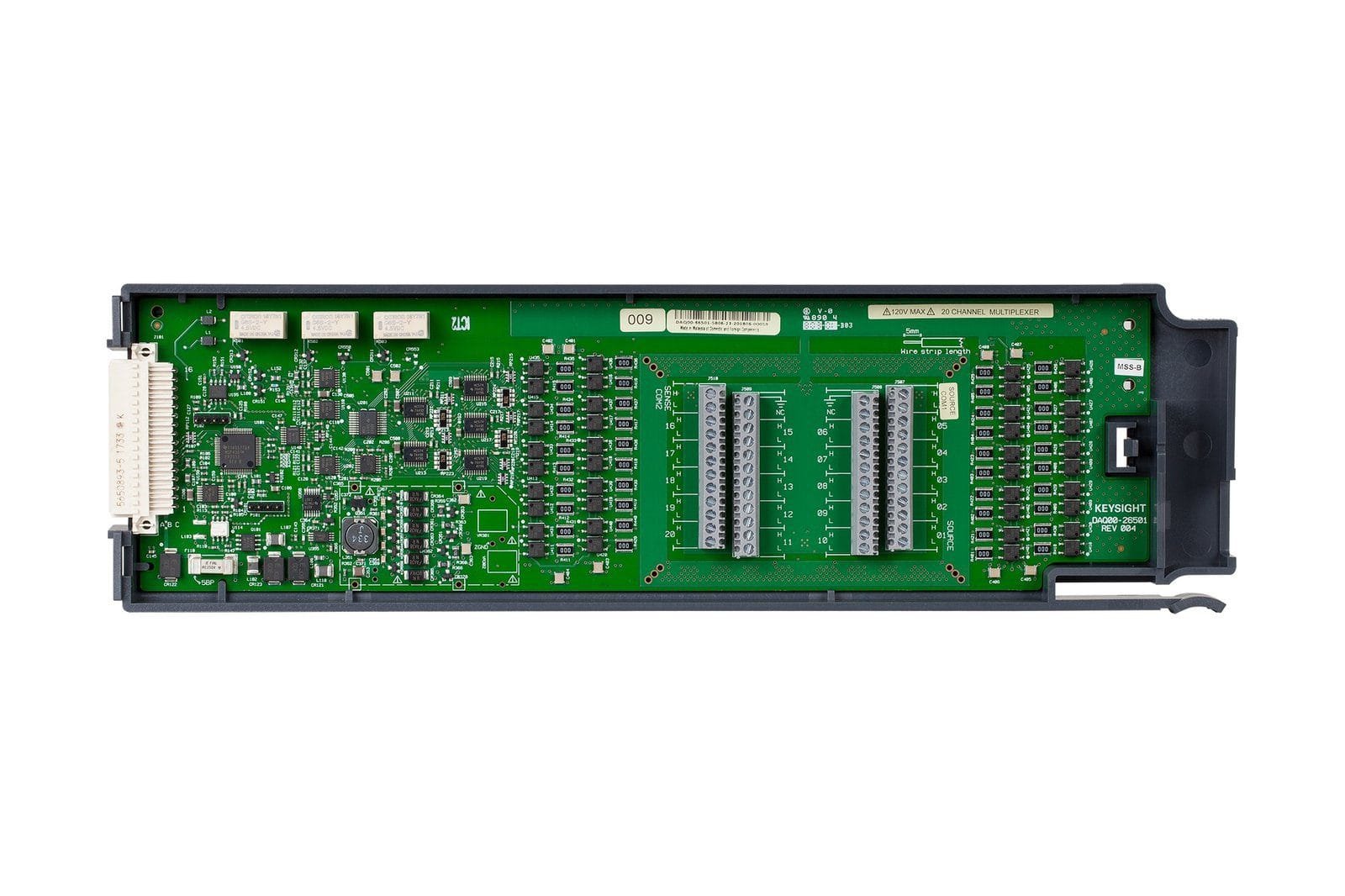

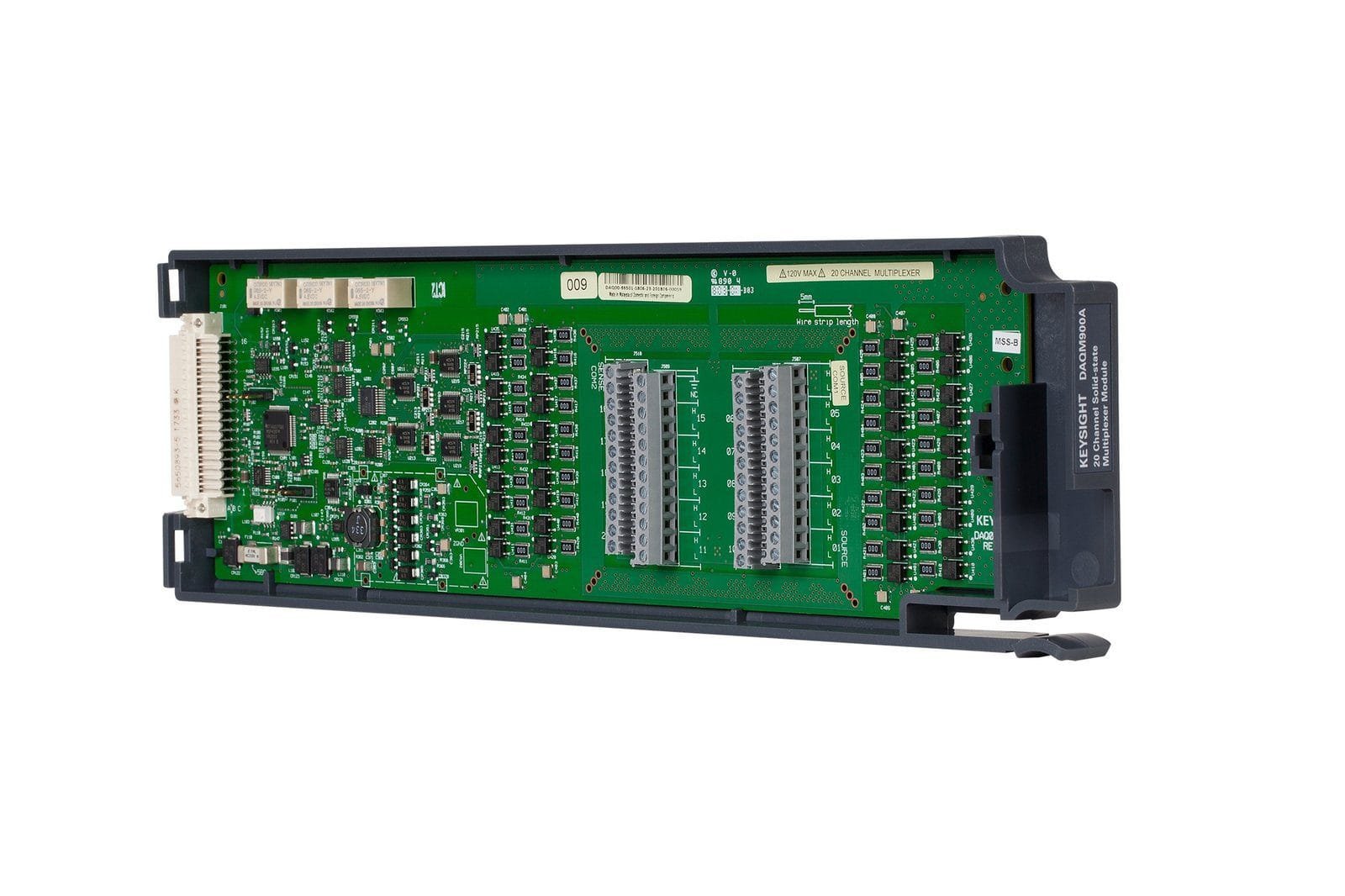

Keysight DAQM900A – 20 Channel Solid-State Multiplexer Module for DAQ970A and DAQ973A

The DAQM900A module is divided into two banks of 10 two-wire channels each. All 20 channels switch both HI and LO inputs, thus providing fully isolated inputs to the internal DMM or an external instrument.

During 4-wire resistance measurements, channels from Bank A are automatically paired with channels from Bank B to provide the source and sense connections. The module has a built-in thermocouple reference junction to minimize errors due to thermal gradients when measuring thermocouples.

Note: This product is only a module. DAQ970A and DAQ973A mainframes are sold separately.

Several modules available

Keysight offers a variety of modules for use with the DAQ970A and DAQ973A. The list below contains both part numbers and a brief description of each.

• DAQM900A – 20-channel solid-state multiplexer
• DAQM901A – 20-channel armature multiplexer; + 2 current channels
• DAQM902A – 16-channel reed multiplexer
• DAQM903A – 20-channel actuator/GP switch
• DAQM904A – 4 x 8 matrix
• DAQM905A – Dual 4-channel 50 Ω RF mux
• DAQM907A – Multifunction module
• DAQM908A – 40-channel armature multiplexer
• DAQM909A – 4-channel 24-bit simultaneous sampling digitizer
