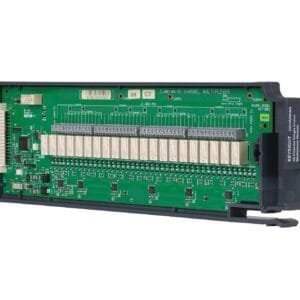

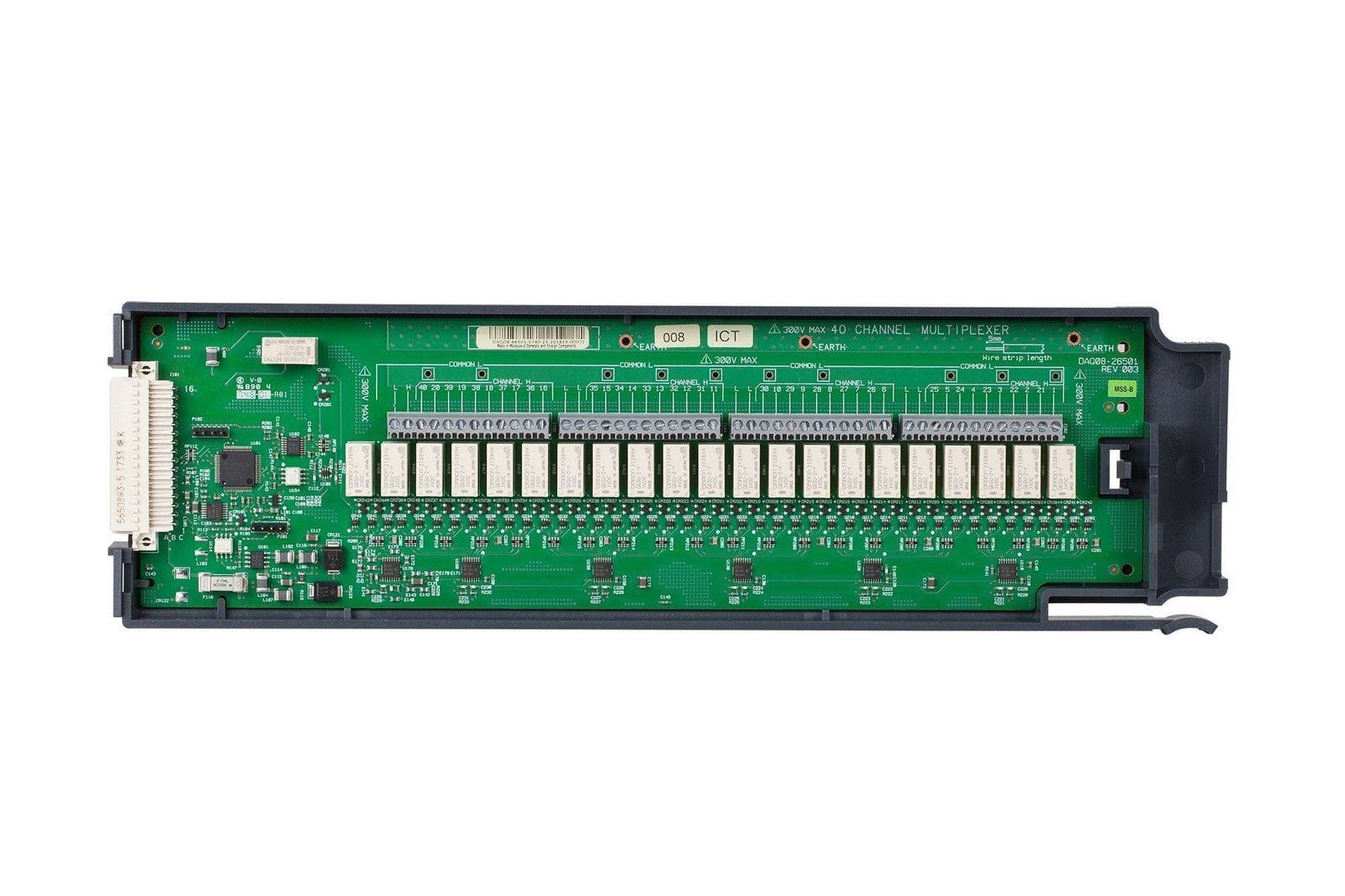

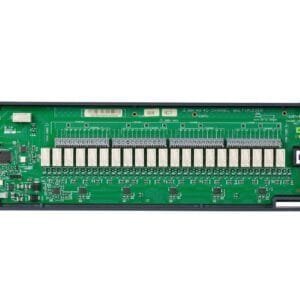

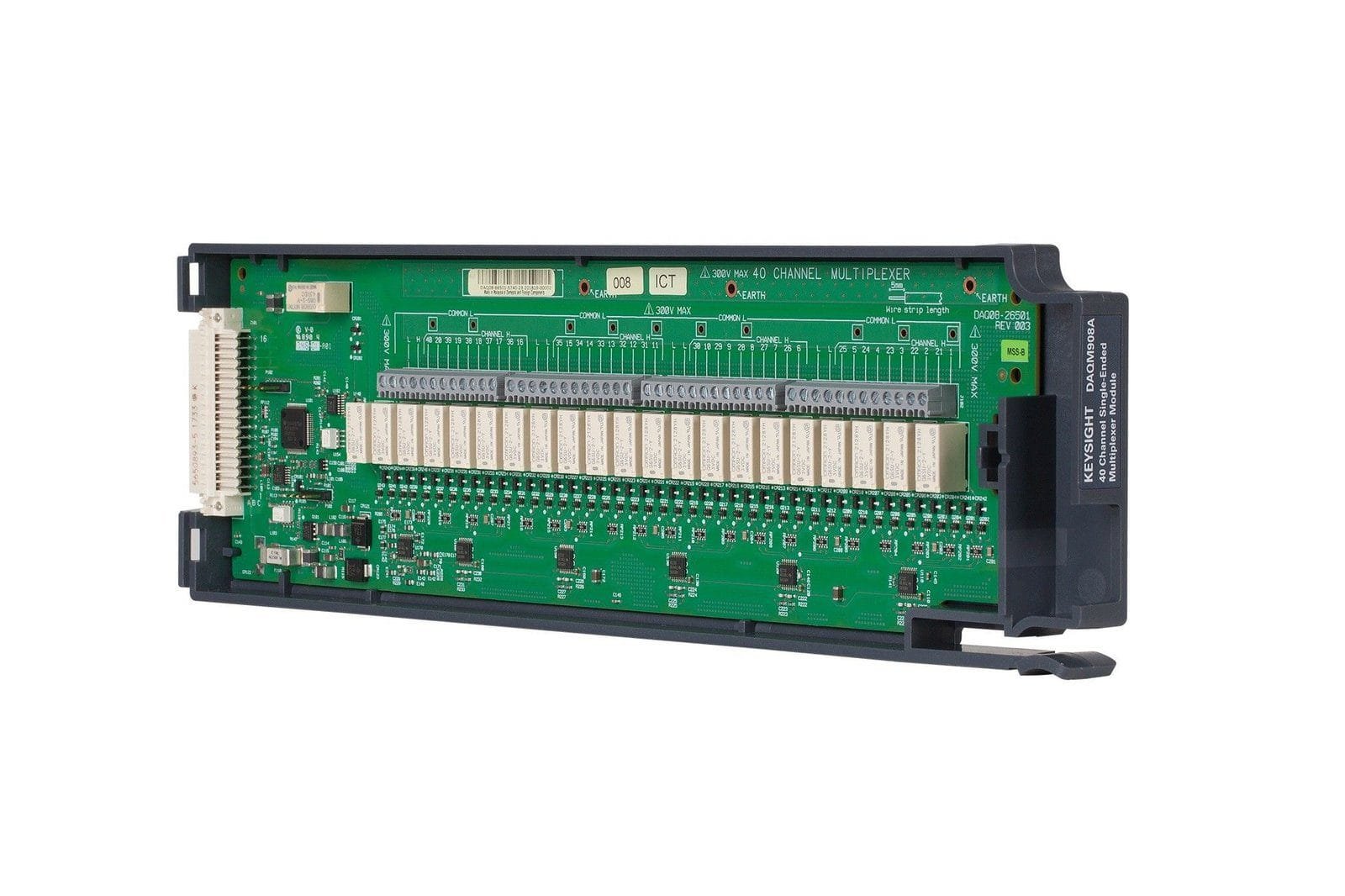

Keysight DAQM908A – 40 Channel Single-Ended Multiplexer Module for DAQ970A and DAQ973A

Use the Keysight DAQM908A for the greatest density in common low applications, such as battery testing, component characterization, and benchtop testing. Each module switches 40 one-wire inputs. All two-wire internal measurements except current are supported. The module’s low connection is isolated from earth and can float up to 300 V.

Please note, this product is only a module. DAQ970A and DAQ973A mainframes are sold separately.

Keysight offers a variety of modules for use with the DAQ970A and DAQ973A. The list below contains part numbers and a brief description of each.

• DAQM900A – 20-channel solid-state multiplexer
• DAQM901A – 20-channel armature multiplexer; + 2 current channels
• DAQM902A – 16-channel reed multiplexer
• DAQM903A – 20-channel actuator/GP switch
• DAQM904A – 4 x 8 matrix
• DAQM905A – Dual 4-channel 50 Ω RF mux
• DAQM907A – Multifunction module
• DAQM908A – 40-channel armature multiplexer
• DAQM909A – 4-channel 24-bit simultaneous sampling digitizer
