Keysight E36104B – 35W DC Power Supply 35V/1A

• E36100 Series DC Power Supply 35V/1A, 35W
• DC output rating: 35V, 1A, 35W
• Output ripple and noise: 1.2 mVrms / 20 mVpp / 400 μArms
• Accuracy: 0.05% +12 mV
• Connectivity: LAN, USB

Keysight E36100 Series basic DC power supplies feature a compact size (2U, 1/4-rack), a high-contrast OLED display that is viewable from any angle, and modern USB and LAN (LXI Core) connectivity. The E36100 series features highly accurate low-current measure for demanding measurements. Protection provided for the DUT with built-in overvoltage and overcurrent protection, and count on the built-in overtemperature protection to keep your power supply safe. Get connected to the instrument quickly via the intuitive front-panel interface, a web interface running on a browser, a SCPI or IVI program, Keysight IO Libraries, or a BenchVue app running on your PC or mobile device.

• Low, normal mode noise specifications assure quality power for precision circuitry applications enabling the user to power design with confidence
• Accurate voltage/current programming and readback capability provide excellent control to precisely power the DUT
• Protection includes overvoltage, overcurrent, overtemperature

• USB, LAN connections to access instrument from PC browser
• Save space on bench 2U 1/4-rack
• BenchVue software support and web interface control

• Easy-to-use SCPI programming language
• Create fast, simple programs with transient response faster than 50 μs and fast command processing time less than 10 ms

• Use Keysight Libraries Suite to accelerate programming

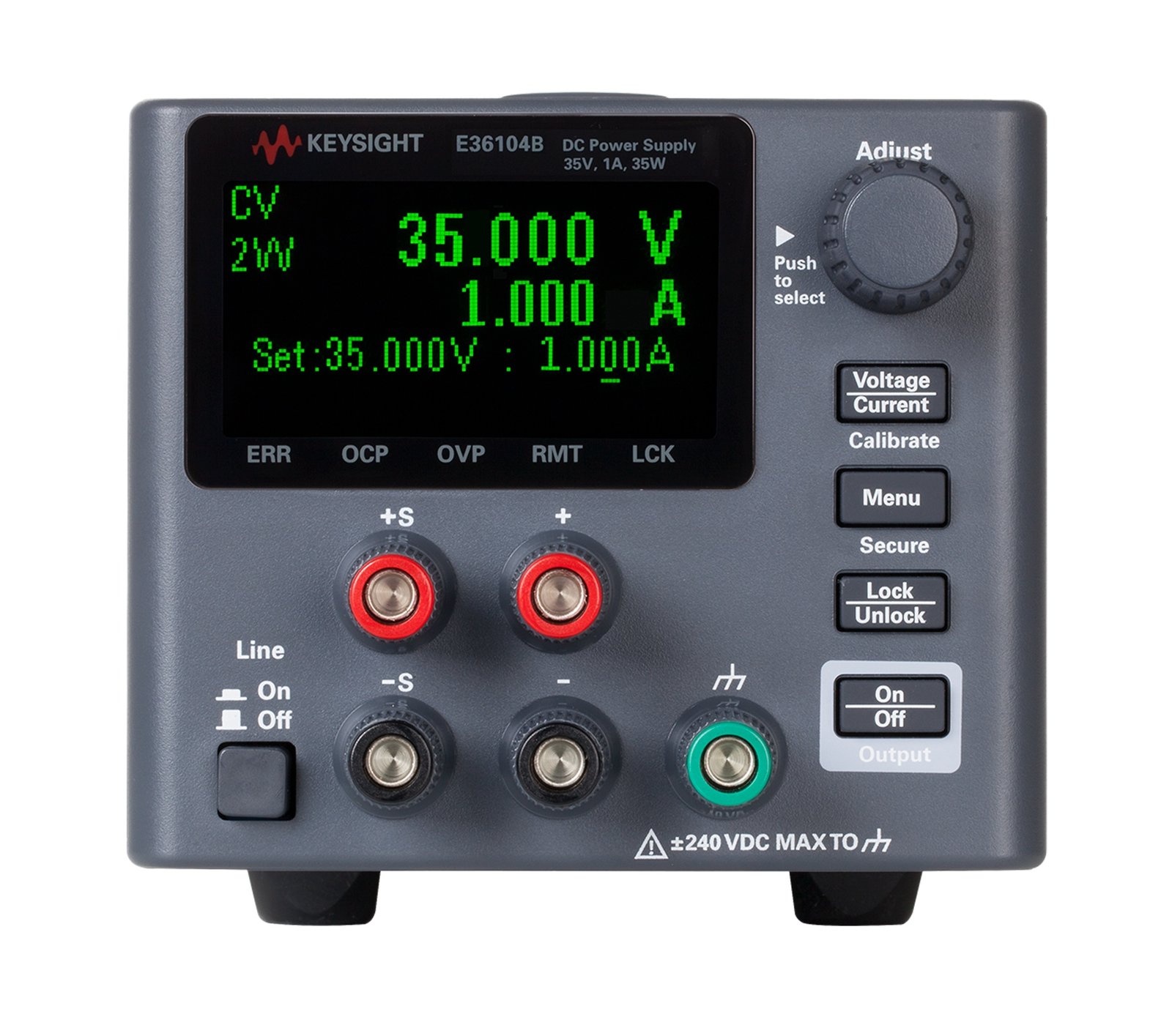

• Information-packed, high contrast OLED display; view from sharp angles
• Rotary knob for quick, easy configuration – sets output with digit-by-digit control
• Fast volt/current setting; front panel calibration
• Menu key opens intuitive user interface
• Front panel lockout prevent accidental changes during tests
• Output enable/disable switch to protect DUT

BenchVue software for the PC makes it simple to connect, control, and view Keysight power supplies simultaneously with other Keysight bench instruments without programming.

• Visualize the output of multiple power supplies simultaneously
• Log data, capture screen shots, and save a system state
• Recall a past state of your bench to replicate results
• Export measurement data in desired format fast
• Quickly access manuals, drivers, FAQs and videos
• Monitor and control your bench from mobile devices
