Keysight E36311A – 80W Triple Output Power Supply 6V/5A, +25V/1A, -25V/1A, USB

• E36300 Series Triple Output Power Supply 6V/5A, +25V/1A, -25V/1A, USB
• DC output rating – Output 1: 0 to 6 V, 0-5 A; Output 2: 0 to +25 V, 0-1 A; Output 3: 0 to -25 V, 0-1A
• Output ripple and noise: < 350 µVrms/2 mVpp
• Accuracy: 0.05% +20 mV
• Connectivity: USB

The Keysight E36300 Series triple output power supply is ready for your bench application. With low output ripple/noise and accurate voltage/current measurements, you can test with confidence. Power multiple voltage buses with clean, reliable power, view voltage and current on all outputs simultaneously. You have access to advanced features such as data logging, output sequencing, list mode, and output coupling on the models E36312A and E36313A.

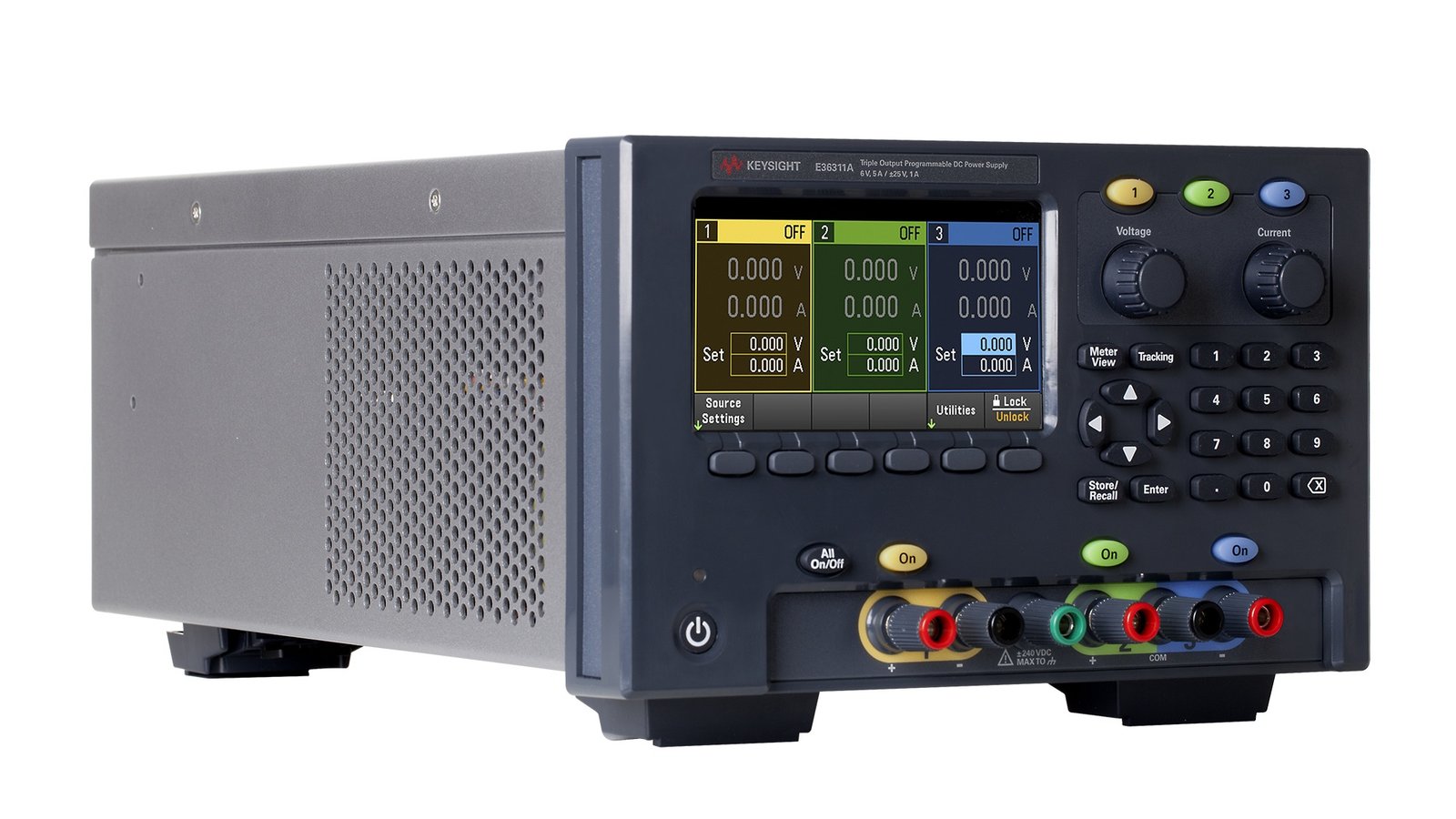

The Keysight E36300 features a large display that makes it easy to read voltages and currents simultaneously on all three outputs. When measuring the current usage of a low power device over time, the addition of a 20 mA range makes it possible to measure. For higher power applications, the E36313A triple output power supply gives you a high current up to 10 A.

Clean Reliable Power

Accurate voltage/current programming and readback capability provide excellent control of the power supply and power measurement. The low, normal mode noise specifications assure quality power for precision circuitry applications, enabling you to power your design with confidence. Besides the 0.01% load and line regulation, the E36300 Series can also maintain a steady output when power line and load changes occur, giving you more peace of mind. The built-in capability to measure low-range current(< 20 mA) reduces the need for an external multimeter and simplifies the setup.

Remote Sensing for Improved Accuracy

To further improve the voltage regulation and measurement accuracy of the DC outputs, the E36312/13A models offer 4-wire sensing capability, also called remote sensing, on each of the rear terminals. Remote sensing permits the output module to monitor and regulate its output voltage directly at the DUT input terminals instead of the power supply’s output terminals. Four-wire sensing is particularly useful for compensating for the voltage drops in the power leads when using the higher output currents generated by the E36313A. For convenience, an internal relay controls switching between 2-wire mode (local sensing) and 4-wire mode (remote sensing) thus eliminating the need for shorting bars or jumpers commonly found on other bench power sources. The E36300 Series includes Over Voltage Protection (OVP), Over Current Protection (OCP), and Over Temperature Protection (OTP) to prevent damage.

Convenient Benchtop Capabilities

All three outputs on the E36300 Series can be turned on and off independently, so you are essentially getting three power supplies in one instrument which saves cost on maintenance. It also saves space on the bench as you can power up multiple analog/digital circuitries or devices with a single instrument. For even more voltage or current, Channel 2 and Channel 3 of the E36312/13A set series or parallel mode on the front panel to double the output voltage (up to 50 V) or current (up to 4 A) respectively.

The E36300 Series is one of the quietest power supplies in its class. It automatically lowers the fan speed under the load/ no-load condition to eliminate annoying acoustic noise through a thermal control circuit. The 4.3-inch LCD color display shows the voltage and current of all three channels with different views. Color coding of the knobs, display and binding posts helps avoid setup and connection errors. Two individual knobs for voltage and current with rotary encoder control for precise setting and keypad allows quick adjustments and configurations in less time.

All models support operation via, SCPI (standard commands for programmable instruments) programming language, IVI (interchangeable virtual instruments) driver, Web Browser or BenchVue. The E36300A series is code compatible with the E3631A to assist in migration to a more modern power supply.

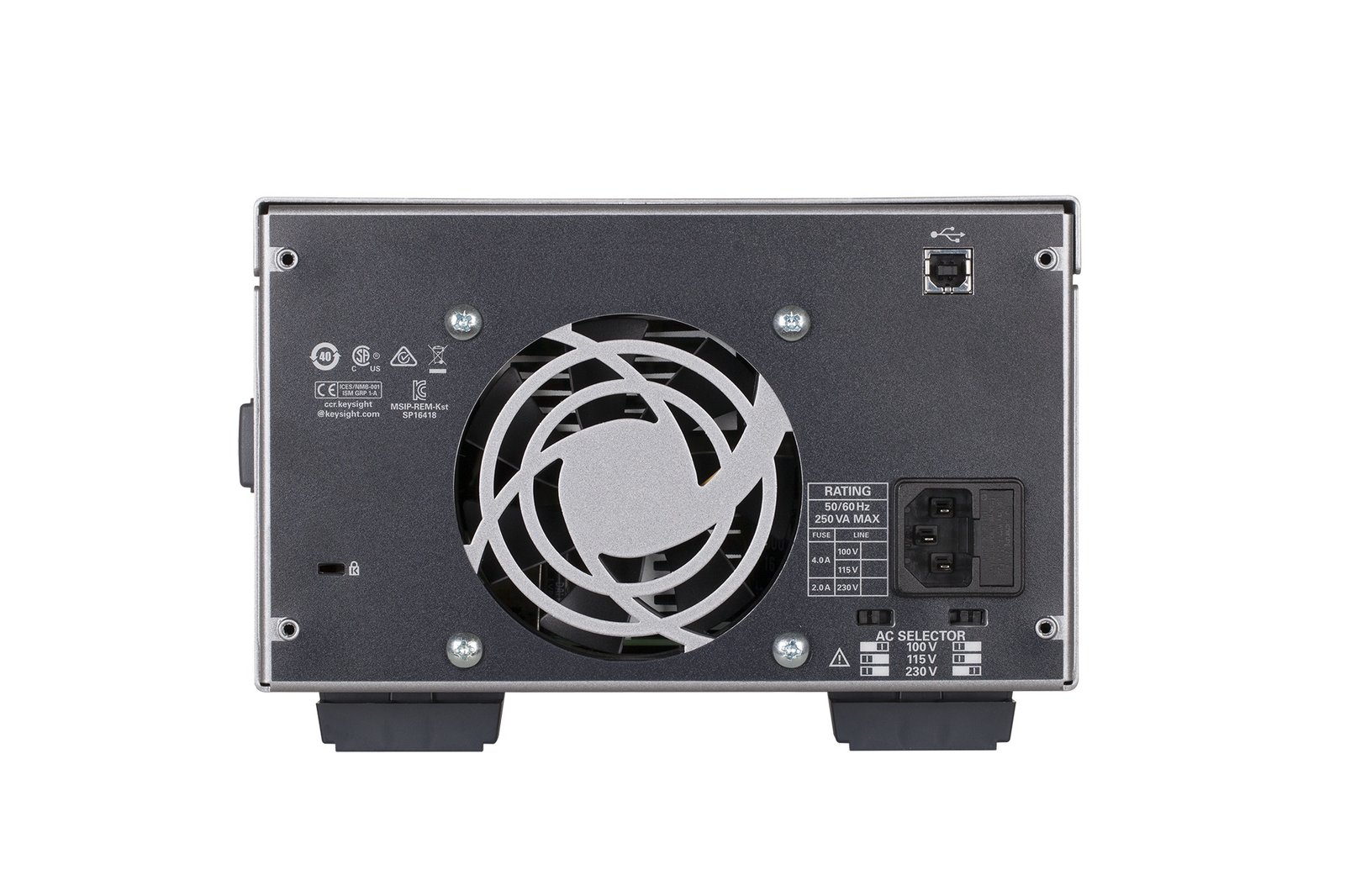

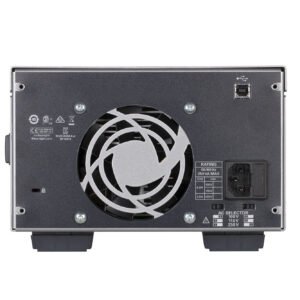

The E36311A ships standard with USB and the E36312/13A with both LAN and USB (GPIB optional).

Data logging, output sequencing (available on E36312/13A models only)

Emulating the normal behaviors of your power subsystems early in the design process, including controlling multiple power supply voltage sequences, measuring wide dynamic ranges of current, and varying the speed of the power supply voltage to reflect real circuit characteristics is critical to your design’s success. The E36312/13A offers additional capabilities for emulating and analyzing power behaviors.

Logging data is key to reviewing test setups and repeating test conditions. The E36312/13A simultaneously logs data on all three DC outputs, both voltage and current measurements, spaced by a programmable sample period, to the large color display and a file. Export the data logger display in PNG, BMP file formats or export the time-stamped data as a CSV file for reports and documentation. The built-in battery backup real-time clock allows for proper timestamping of logged data.

Simulate power problems or normal operation with either sequencing or list mode. Sequence each channel on the E36312/13A models individually to turn on or turn off with a delay. Generate complex sequences of output changes with rapid, precise timing synchronized with internal or external signals by using LIST mode.

BenchVue software for the PC makes it simple to connect, control, and view Keysight power supplies simultaneously with other Keysight bench instruments without programming.

• Visualize the output of multiple power supplies simultaneously
• Log data, capture screenshots and save a system state
• Recall a past state of your bench to replicate results
• Export measurement data in desired format fast
• Quickly access manuals, drivers, FAQs and videos
• Monitor and control your bench from mobile devices
