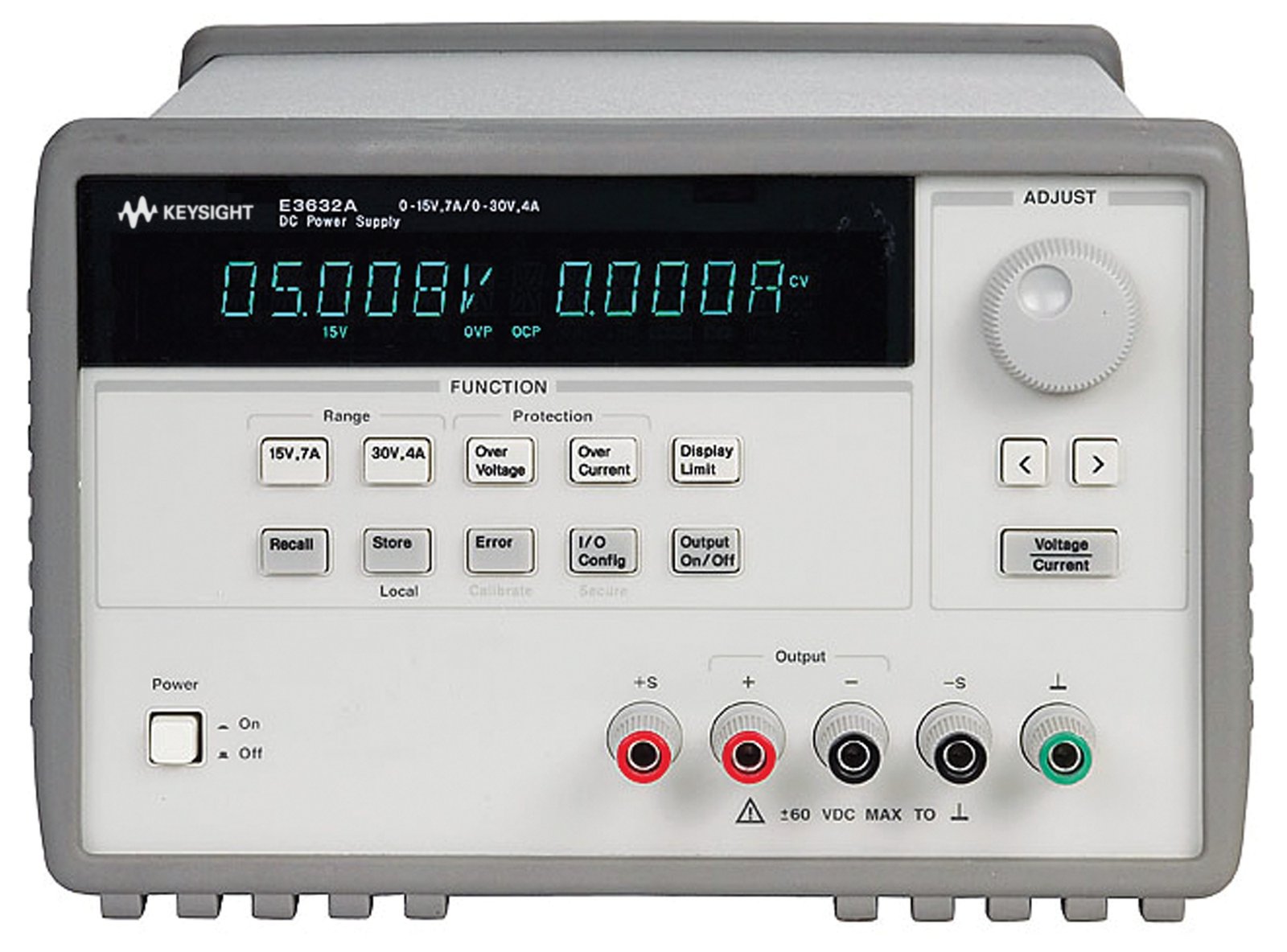

Keysight E3632A – 120W Single Output, Dual Range Power Supply 15V/7A or 30V/4A, 105/120W, GPIB

• E3630 Series Programmable Power Supply 15V/7A or 30V/4A, GPIB
• DC output rating – 0-15V/7A or 0-30V/4A
• Output ripple and noise: < 350 µVrms/2 mVpp
• Accuracy: 0.05% +10 mV
• Connectivity: GPIB, RS232

The Keysight Technologies, Inc. E363xA Series of programmable DC power supplies gives you the performance of the system power supplies at a decent price. All models provide clean power, excellent regulation and fast transient response with built-in GPIB and RS-232 interfaces. The E363xA Series is designed to meet the requirements of the most demanding applications in R&D design verifications, production testing, and QA verifications with traditional quality and reliability which you can count on.

With the 0.01% load and line regulation, the E363xA Series can maintain a steady output when power line and load changes occur. The power supplies specify both normal mode voltage/current noise and common mode current noise. The low normal mode noise specification assures clean power for precision circuitry applications, and the low common mode current provides isolation from power line current injection.

Remote Interface

If you have an IEEE-488 card or RS-232 in a PC, these power supplies will work for you. Every model comes equipped with both GPIB and RS-232 as standard. All programming is done in easy-to-use SCPI (Standard Commands for Programmable Instruments). The user’s guide describes the process for first-time programmers.

Front Panel Operation

A knob and self-guiding keypads allow you to set the output at your desired resolution quickly and easily. You can store and recall for up to three complete setups using the internal non-volatile memory. The output on/off button sets the output to zero.

E3632A/33A/34A Single-Output Dual Range Power Supplies

These single-output power supplies give you the flexibility to select from a dual output range. The output load is protected against overvoltage and overcurrent, which are easily monitored and adjusted from the front panel and remote interface. Remote sensing is available to eliminate the errors caused by voltage drops on the load leads. The E3633A/34A offers front and rear output terminals for easy wiring.

E363xA Series Features:

• Single output/Dual Range
• 120W to 200W output power
• Low noise and excellent regulation
• Remote sensing
• Front and rear output terminals (E3633A/34A only)
• GPIB, RE232 standard
• Save and recall functions
• Overvoltage, overcurrent protection

BenchVue software for the PC makes it simple to provide easy control of your power supplies to set parameters and visualize I/V data on a trend chart.

• Track and record your power supply output to understand the impact of power draw for specific events
• Connect and control your power supplies through the cloud
• Export data to popular tools, such as MATLAB, Excel, or Word for further analysis
• Create automated test sequences quickly with minimal instrument knowledge
• Receives KeysightCare software support subscription and license with each new instrument purchase
