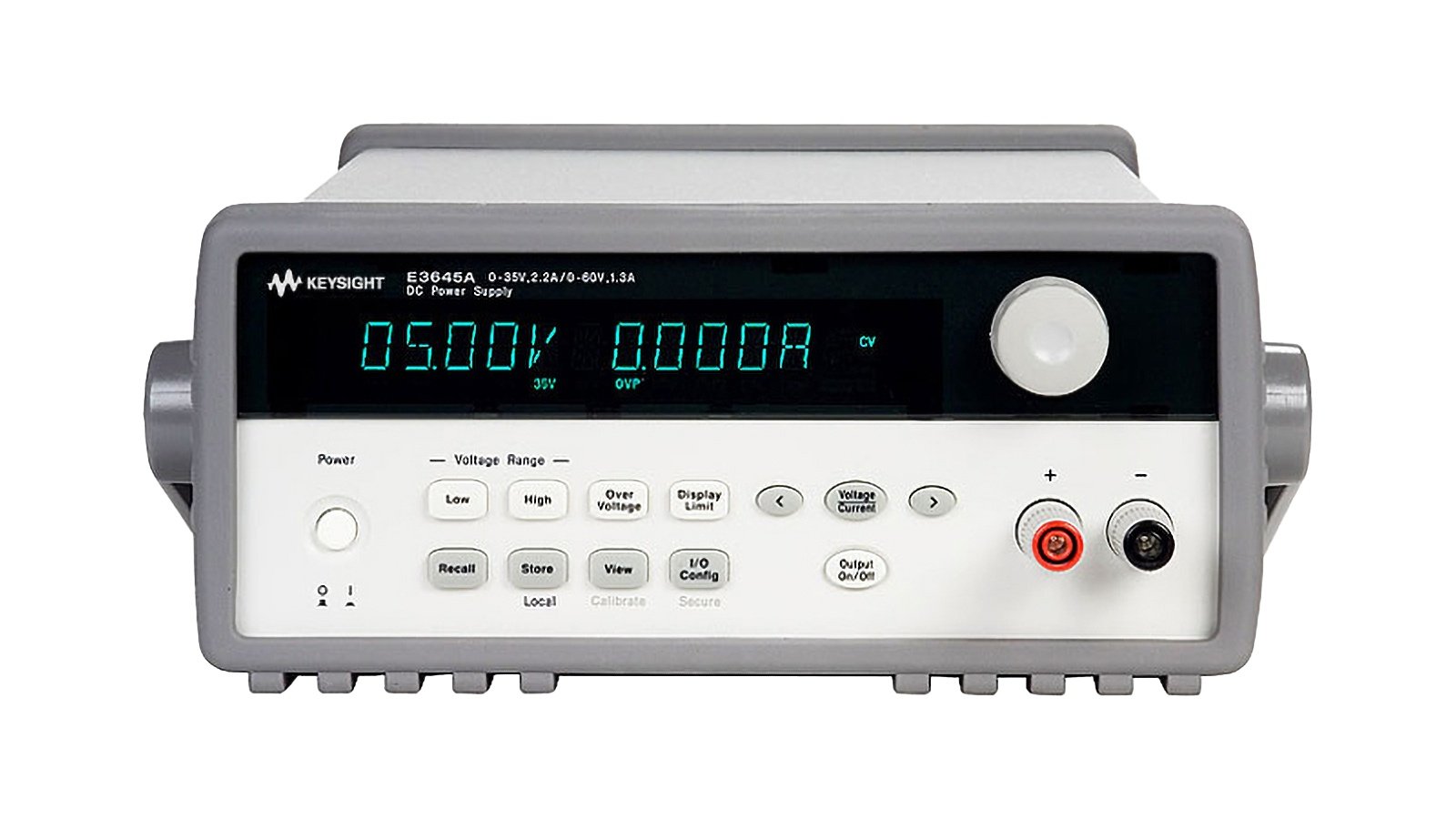

Keysight E3645A – 80W Single Output Dual Range Power Supply 0-35V/2.2A or 0-60V/1.3A, GPIB, RS-232

• E3640 Series 80W Single Output Dual Range Power Supply 0-35V/2.2A or 0-60V/1.3A, GPIB, RS-232
• DC output rating – Range 1: 0-35V/2.2A; Range 2: 0-60V/1.3A
• Output ripple and noise: < 8 mVpp / 1 mVrms
• Accuracy: 0.05% +3 mV
• Connectivity: GPIB, RS232

The Keysight E3640 Series bench power supply gives you outputs from 30 W to 100 W of power and dual-range flexibility. Each output has a low and high voltage range. The low voltage range allows the power supply to work more current. The E3640 Series bench power supply also has models with one and two results trackings turned on or off to allow the two outputs to operate independently or work as a pair.

With an output power of 30 to 100 W, the Keysight Technologies, Inc. E3640 Series programmable DC power supplies provide excellent performance at a great price. All ten models deliver clean power, excellent regulation, fast transient response, and built-in GPIB and RS-232 interfaces. They are designed to meet the needs of R&D design verification, production testing, QA verifications, and other demanding applications with Keysight quality and reliability.

Steady Output

With 0.01 percent load and line regulation, Keysight E3640 power supplies can maintain a steady output when power line and load changes occur. They also specify normal mode voltage noise and common low mode current noise. The low standard mode noise specification assures clean power for precision circuitry applications, and the humble standard mode current provides isolation from power line current injection. Keysight E3640 power supplies specify less than 90 msec of voltage settling time at any output load condition.

Remote Interface

Keysight E3640 power supplies support any PC with a GPIB (IEEE-488) card or RS232 interface. Every model ships standard with both GPIB and RS-232. The easy-to-use SCPI (Standard Commands for Programmable Instruments) allows fast and straightforward programming procedures. Besides, the user manual provides sufficient information on programming for all end-users, from beginners to veterans.

Front Panel Operation

An easy-to-use rotary knob and self-guiding keypads allow you to set the output at your desired resolution without any effort. Also, both voltage and current levels can be set to a maximum resolution of 10 mV/ 1 mA from the front panel. In addition, you can store and recall for up to five complete power supply setups using the internal non-volatile memory. The output on/off button sets the result to zero. You can view two voltages or currents displayed simultaneously if you own a dual output model.

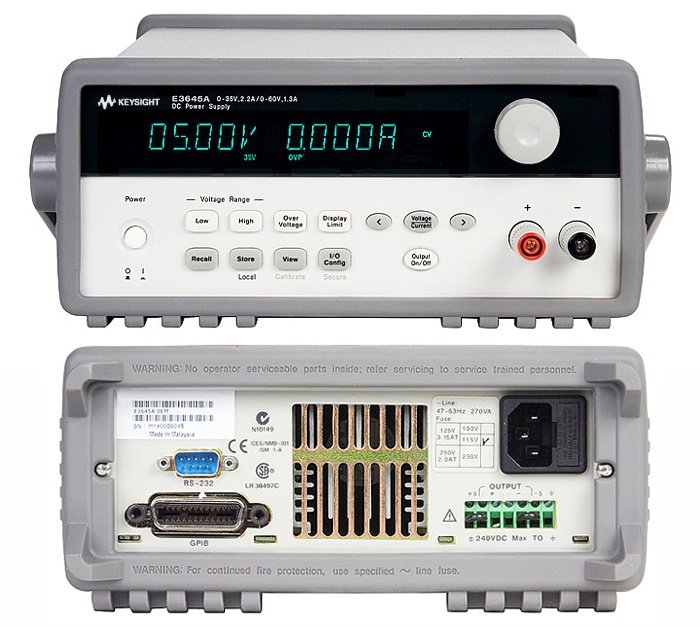

Keysight E3640 power supplies give you the flexibility to select from dual output ranges. Output load is protected against overvoltage, which can be easily monitored and adjusted from the front panel and remote interface. Remote sensing is available in the rear terminal to eliminate errors caused by voltage drops on the load leads. These power supplies offer new versatile binding posts on the front panel and screw-type terminals on the rear panel. Recent front panel binding posts allow you to use safety test leads, conventional banana clips, and stripped wires. An optional rackmount kit is available. The Keysight E3640 Series employs a cooling fan with automatic speed control to reduce the acoustic noise.

BenchVue software for the PC makes it simple to provide easy control of your power supplies to set parameters and visualize I/V data on a trend chart.

• Track and record your power supply output to understand the impact of power draw for specific events
• Connect and control your power supplies through the cloud
• Export data to popular tools, such as MATLAB, Excel, or Word, for further analysis
• Create automated test sequences quickly with minimal instrument knowledge
• Receives KeysightCare software support subscription and license with each new instrument purchase
