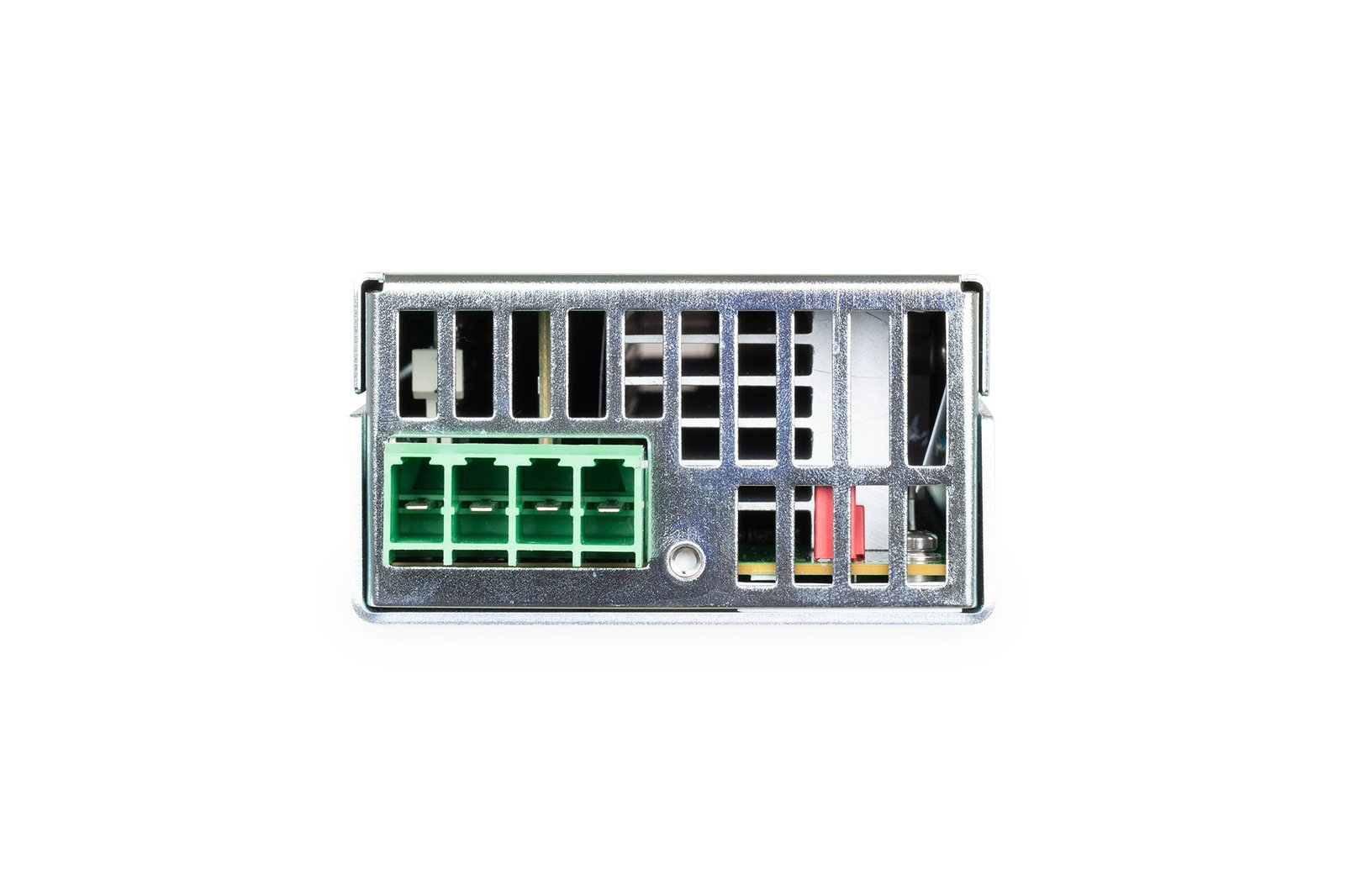

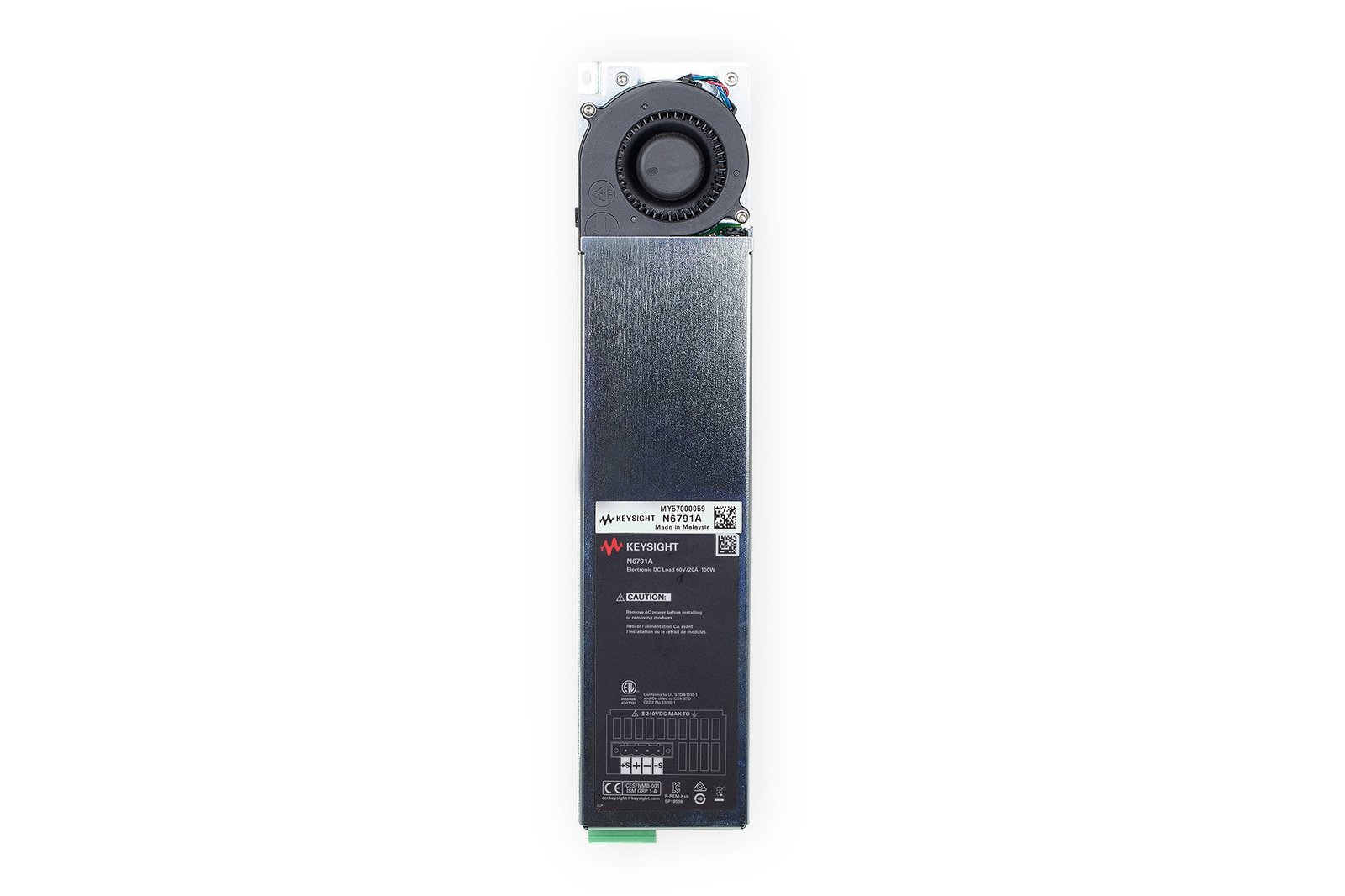

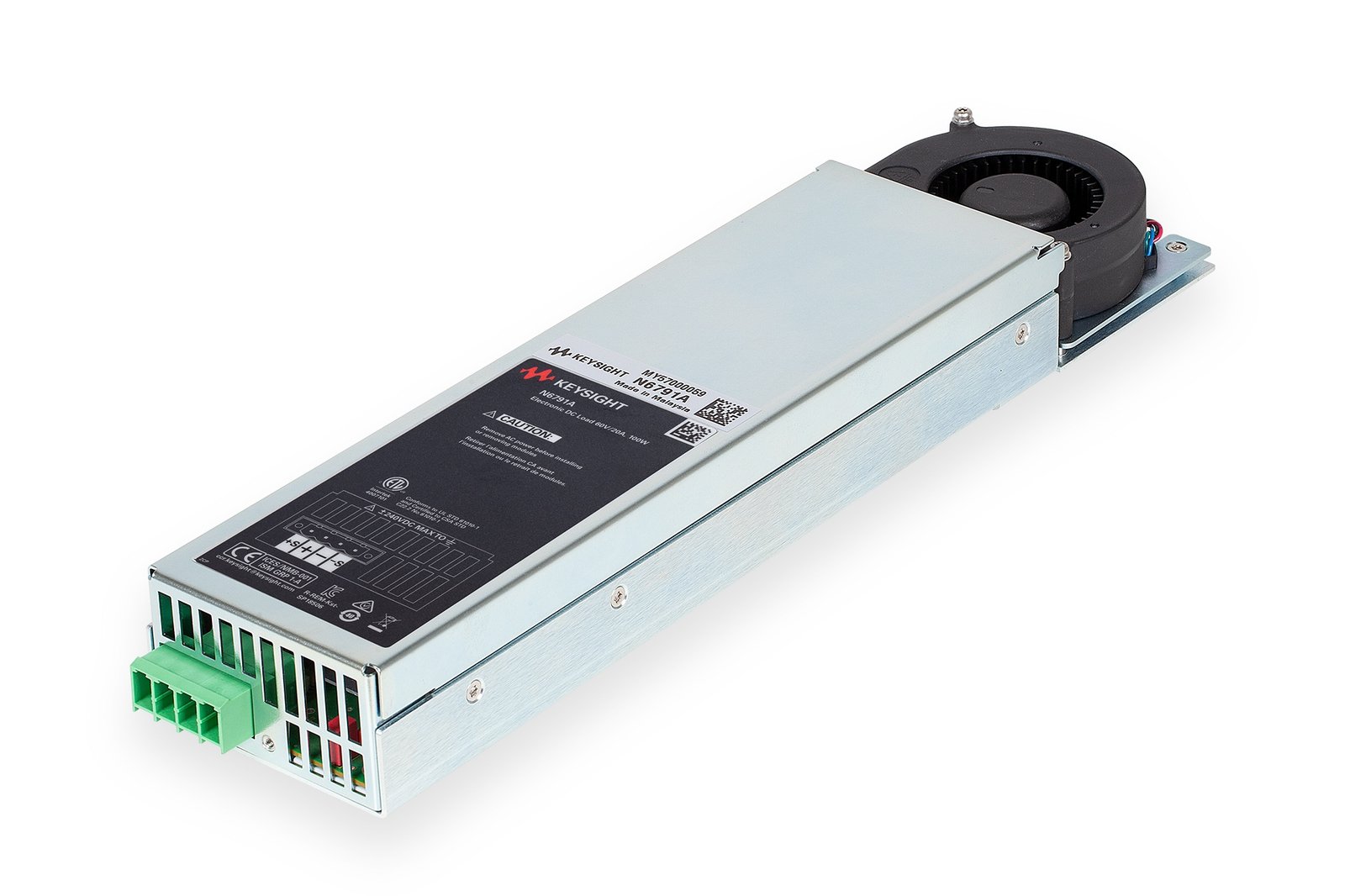

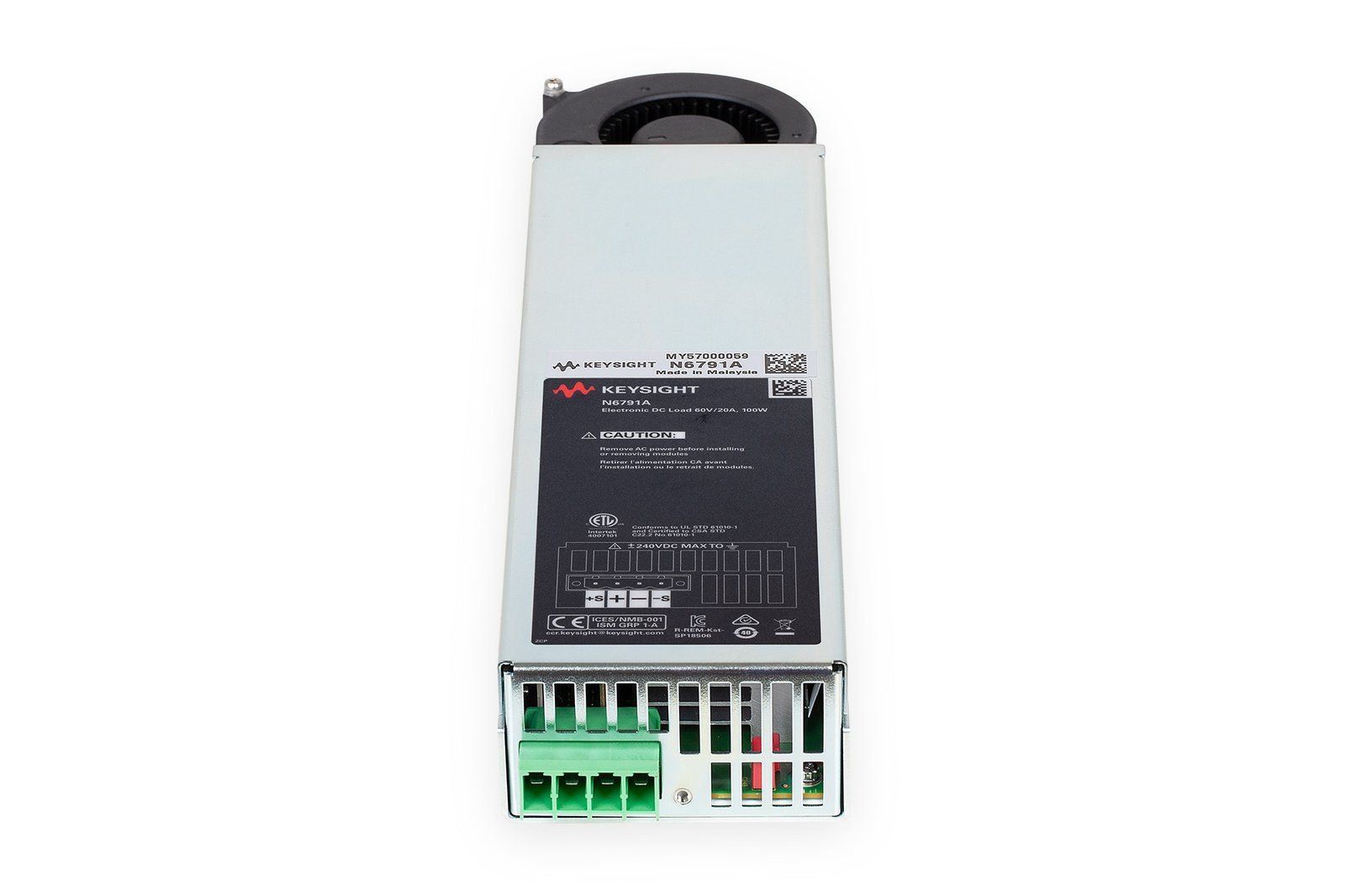

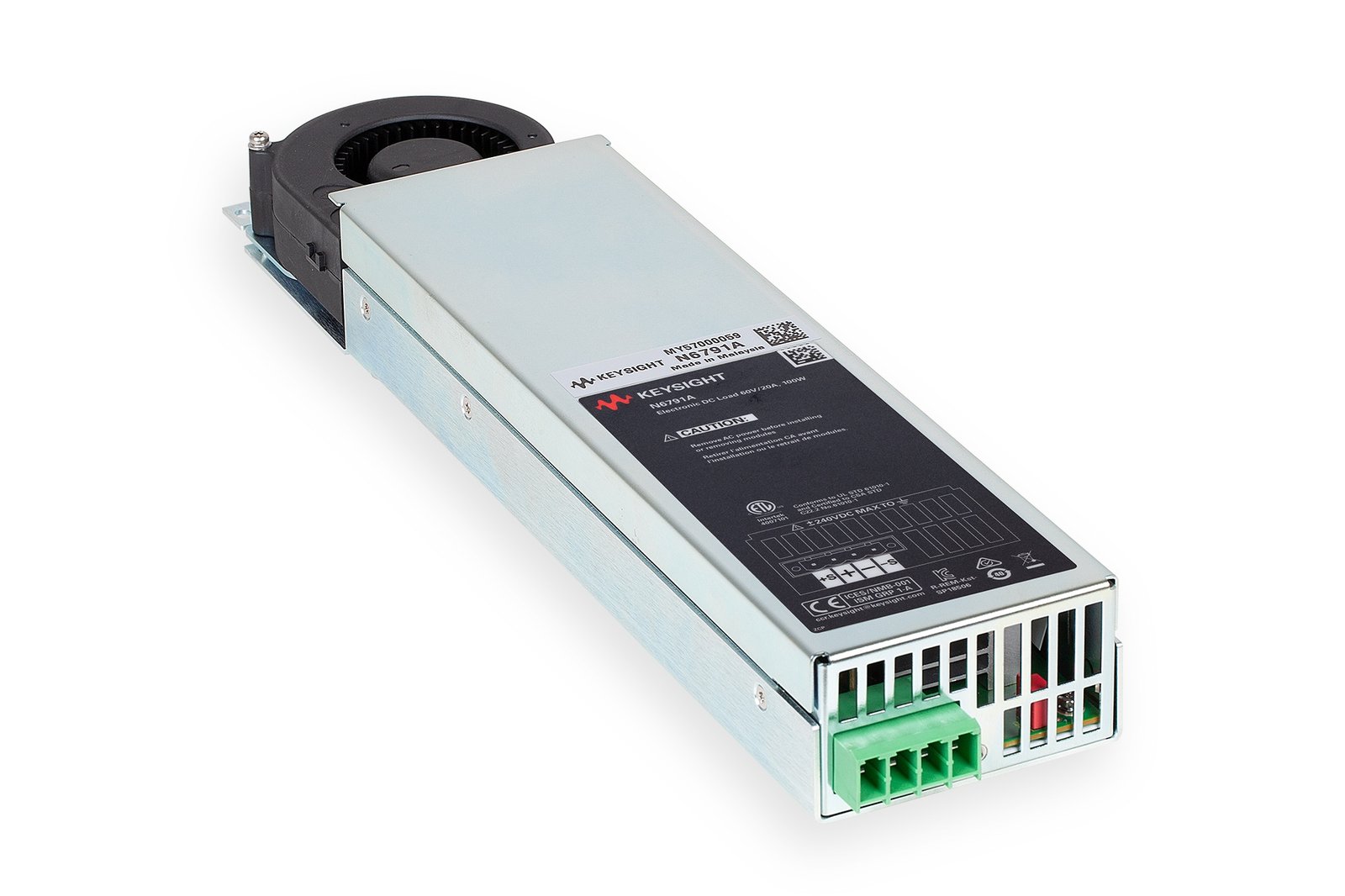

Keysight N6791A – DC Electronic Load Module (60V/20A/100W)
28 people are viewing this product right now
$2,707.10
Shipping calculated at checkout.
Estimated delivery:3 days
100 W module, single-wide
- Module only – mainframe sold separately
- For use with N6700 low-profile modular power systems or N6705 DC power analyzers
- Voltage: 0 – 60V
- Current: 0 – 20A
- Maximum power: 100W
- Size: one slot
Guarantee Safe and Secure Payment Checkout
Description
Keysight N6791A
- For use with N6700 low-profile modular power systems or N6705 DC power analyzers
- Voltage: 0 – 60V
- Current: 0 – 20A
- Maximum power: 100W
- Size: one slot
DC Electronic Load Module (60V/20A/100W)
The Keysight N6790 Series Modular Electronic Loads offer a 100W module and a 200W module each in a 1U footprint. Four different user operation modes are available: constant voltage, constant current, constant resistance, and constant power. With a high, accurate measurement system and digitizing capabilities, users can easily gain insight into their power supply test. Also, the series offers a powerful, built-in arbitrary waveform generator which allows users to emulate complex dynamic load waveforms. This is a must have for any serious power system designer and test engineer.
Two models available
Keysight offers two models in its N6790 load series.
- N6791A
- 60V, 20A, 100W
- One slot
- N6792A
- 60V, 40A, 200W
- Two slots
Electronic Load Modules Template | |
|---|---|
| Maximum voltage (Volts) | 60 V (60000 mV) |
| Maximum current (amps) | 20 A |
| Maximum power (watts) | 100 Watts |
