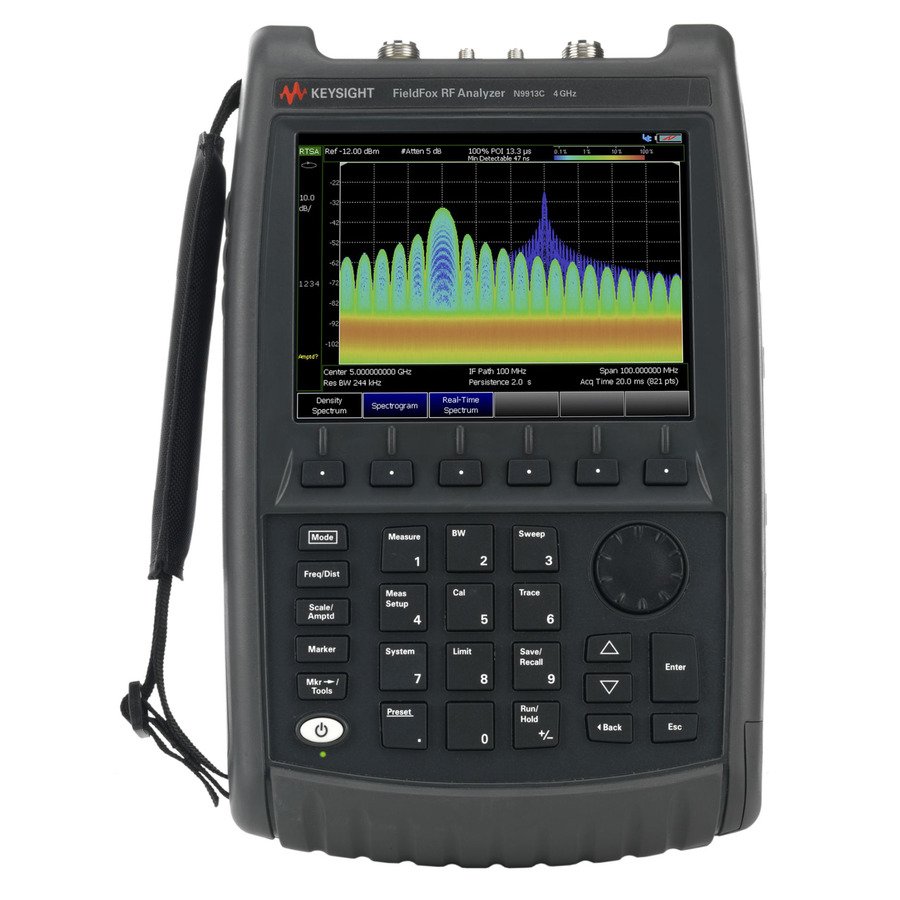

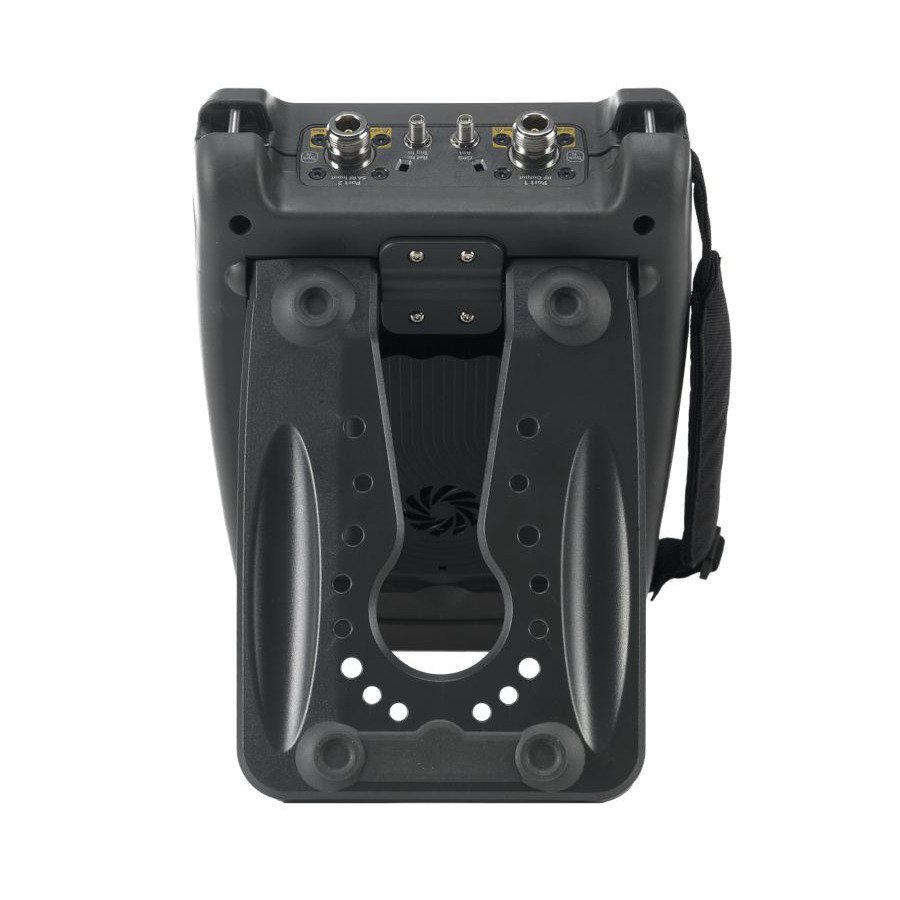

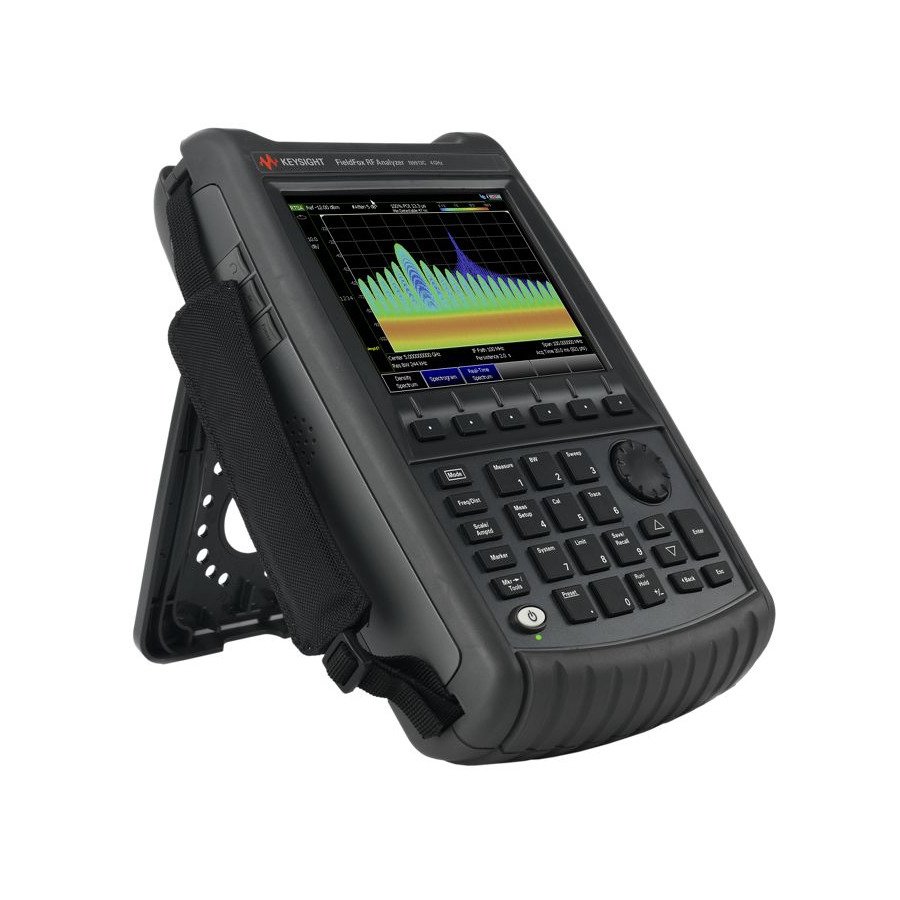

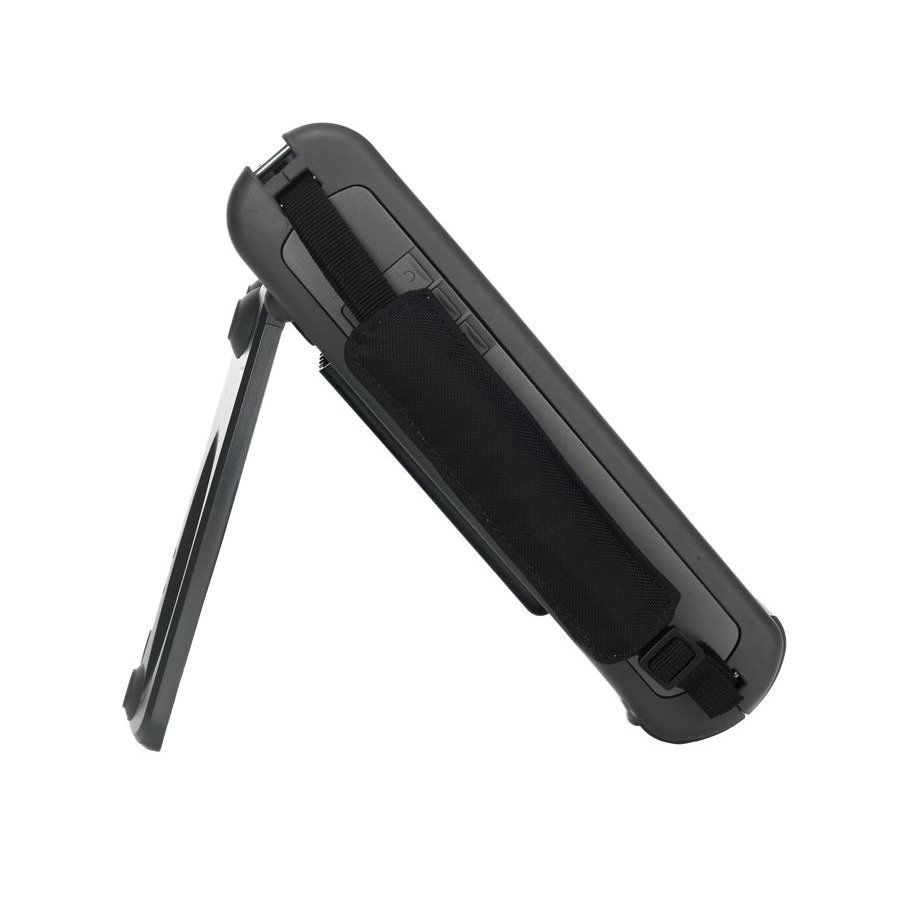

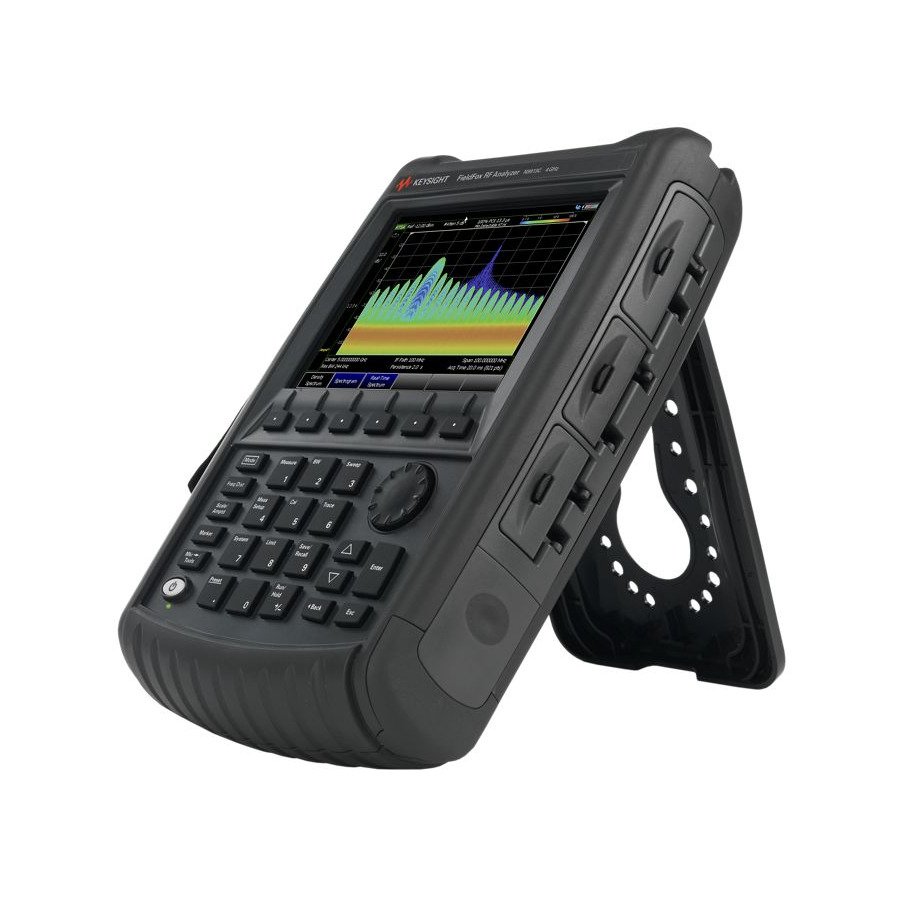

Keysight N9913C – FieldFox Handheld RF Analyzer (4 GHz)

• Handheld RF analyzer
• Base model includes cable and antenna analysis
• Measurements with base model: DTF (db, linear, VSWR), return loss and DTF, return loss (db), and 1 port cable loss
• Frequency range: 3 kHz to 4 GHz
• Test port connectors: type-N (f)

The N9913C is a handheld combination RF analyzer. The standard model has a frequency range of 3 kHz to 4 GHz and has the following functionalities:

• Cable and antenna analysis
• Measurements: DTF (dB, linear, VSWR), return loss and DTF, return loss (dB), and 1-port cable loss
• Calibrations: CalReady, OSL, and response calibration
• Note: 2-port insertion loss is NOT included with the base model, if 2-port insertion loss is needed, order Option 210
• Note: Base analyzer does not have phase information, for S11 or S21 phase, order Option 210

Combination analyzers / information on options

This FieldFox model is a combination analyzer, a device with multiple testing capabilities.

• Combination analyzer (combo) = Cable and antenna tester (CAT) + Vector network analyzer (VNA) + Signal analyzer (SA)

Vector network analysis and spectrum analysis are available with software options.

There are over 30 optional features available, enabling users to customize this instrument to their specific application. For detailed information regarding options, please view this document beginning on page 5. Options can also be found in the accessories section of this page. Please note – several options also require other options as pre-requisites. To simplify the selection and ordering process, this will be noted on each option’s product page where applicable.

Option part numbers are model specific. For example, option 233 (spectrum analysis) for an N9913C and N9914C would not be the same.

Options for this instrument are as follows:

• N9913CU/010 – Vector Network Analyzer Time Domain
• N9913CU/030 – Remote Control Capability
• N9913CU/208 – USB Power Sensor Measurements Versus Frequency
• N9913CU/209 – Extended Range Transmission Analysis (ERTA)
• N9913CU/210 – Vector Network Analyzer Transmission/Reflection
• N9913CU/211 – Vector Network Analyzer Full 2-Port S-Parameters
• N9913CU/212 – 1-Port Mixed-Mode S-Parameters
• N9913CU/215 – TDR Cable Measurements
• N9913CU/233 – Spectrum Analyzer
• N9913CU/235 – Pre-Amplifier
• N9913CU/236 – Interference Analyzer And Spectrogram

• N9913CU/238 – Spectrum Analyzer Time Gating

• N9913CU/302 – USB Power Sensor Support
• N9913CU/307 – GPS Receiver
• N9913CU/308 – Vector Voltmeter
• N9913CU/309 – DC Bias Variable-Voltage Source
• N9913CU/310 – Built-In Power Meter
• N9913CU/312 – Channel Scanner
• N9913CU/330 – Pulse Measurements
• N9913CU/350 – Real-Time Spectrum Analyzer (RTSA)
• N9913CU/351 – I/Q Analyzer
• N9913CU/352 – Indoor And Outdoor Mapping
• N9913CU/353 – IQ Streaming
• N9913CU/355 – Analog Demodulation
• N9913CU/356 – Noise Figure Measurements
• N9913CU/358 – EMF Measurements
• N9913CU/361 – EMI Measurements
• N9913CU/370 – Over The Air LTE FDD Measurements
• N9913CU/371 – Over The Air LTE TDD Measurements
• N9913CU/378 – Over-The-Air (OTA) 5G NR Measurements
• N9913CU/390 – Directional Finding – TDOA Node Support
• N9913CU/391 – Directional Finding – Angle Of Arrival (AOA)
• N9913CU/B04 – Bandwidth, 40 MHz
• N9913CU/B10 – Bandwidth, 120 MHz

Fifty to sixty percent of microwave-link equipment issues are related to cables, antennas, and connectors. Degraded feeder lines cause poor coverage, link failures, and reduced sensitivity in the receive path. To maintain microwave link quality, it is critical to keep cable and antenna systems in good working condition. FieldFox is uniquely qualified to provide all the necessary measurements to troubleshoot and maintain these systems.

Keysight offers three series of Field Fox analyzers – series A, B and C. While these share many similarities, there are also a number of differences. Please click here to view an overview of main differences within the three groups.
