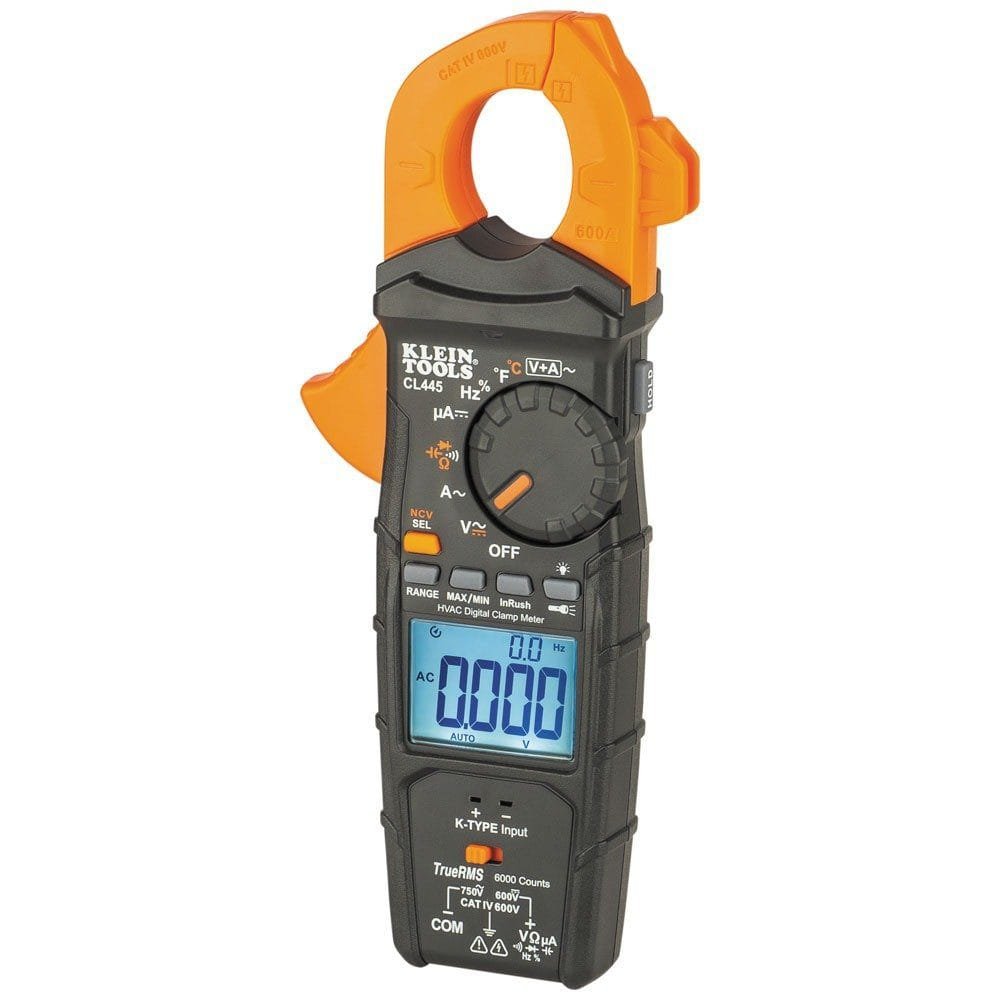

Klein Tools CL445 – HVAC Clamp Meter (600 A AC, 750V AC/600V DC)

• CL445 HVAC Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter
• Digital clamp measures 600 A AC current and inrush current
• Test leads measure 750V AC/600V DC voltage, DC micro amp, resistance, continuity, frequency, duty-cycle, capacitance, and diode tests
• K-Type thermocouple port for measuring temperature from -148 to 1832-Degree Fahrenheit (-100 to 1000-Degree Celsius)
• Detect AC current with non-contact voltage tester integrated into the clamp jaw

Klein Tools CL445 is an advanced HVAC clamp meter with auto-ranging true root mean square (TRMS) for maximum accuracy. The meter measures AC current and inrush via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, test diodes via test leads, and temperature via a thermocouple probe. High visibility backlit LCD has a V+A function to simultaneously monitor voltage and current.

Application:

Measures AC Current, Inrush Current, AC/DC Voltage, DC Microamps, Resistance, Continuity, Frequency, Capacitance, Temperature, Diodes, and More

Special Features:

Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; V + A Simultaneously Displayed; Built-in Worklight

Functions:

TRMS, AC Current, Inrush Current, AC/DC Voltage, DC Microamps, Resistance, Audible Continuity, Frequency, AC Voltage + AC Amperage, Capacitance, Temperature, Non-Contact Voltage Testing, Diodes, Min/Max, Data Hold Capability
