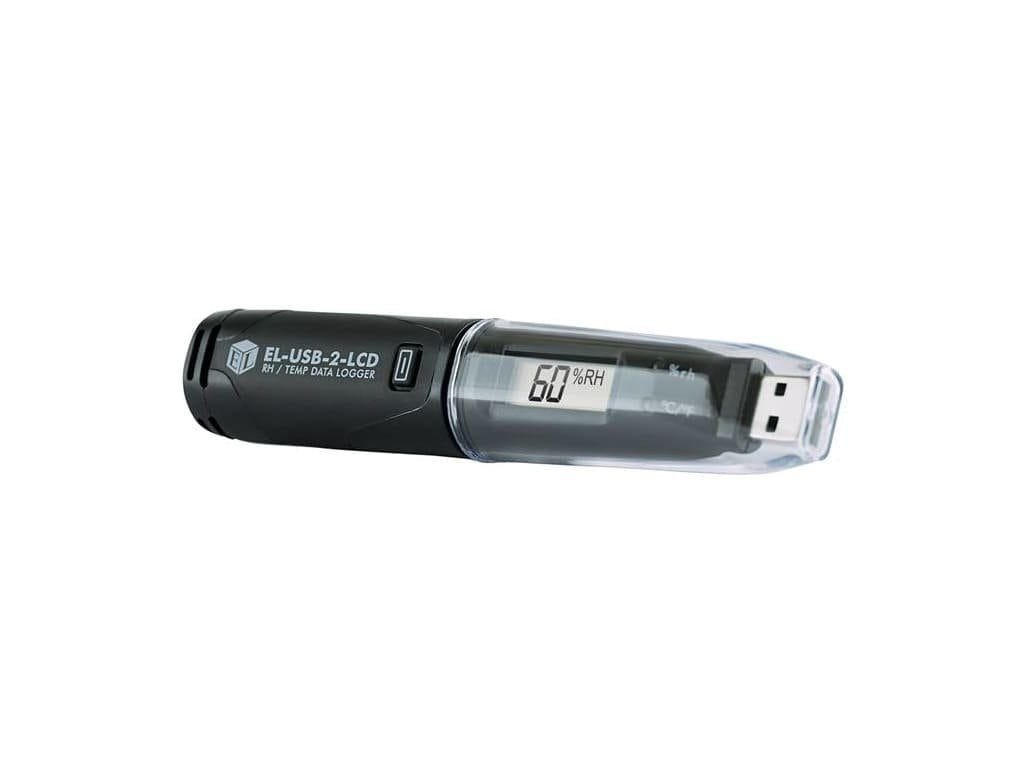

Lascar EL-USB-2-LCD – Temperature and Humidity USB DataLogger with LCD Display Lascar ELUSB2LCD EL USB 2 LCD EL-USB-2-LCD

• LCD display shows high/low and last readings
• Humidity/Temp USB data logger
• Calculated dew point
• Free configuration software
• User-selectable alarm thresholds

This standalone data logger measures and stores up to 16,379 relative humidity and 16,379 temperature readings over 0 to 100%RH and -35 to +80°C (-31 to +176°F) measurement ranges. The user can easily set up the logger and view downloaded data by plugging the module into a PC’s USB port and using the supplied software. Relative humidity, temperature and dew point (the temperature at which water vapour present in the air begins to condense) data can then be graphed, printed and exported to other applications.

The high contrast LCD can show a variety of temperature and humidity information. At the touch of a button, the user can cycle between the current temperature and humidity, along with the maximum and minimum stored values for temperature and humidity.

The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for up to 1 year.

This is a new part and due to high demand availability is limited. For the latest information on availability please contact your nearest Lascar representative.

Easy to install and use, the control software runs under Windows 98, 2000, XP (Home and Professional Editions)* and Vista (32-bit). It allows the user to set up and download any EL-USB-2-LCD.

Six different functions are available, which can be cycled through using the built-in push button. The most recent logged value, maximum logged value and minimum logged value can be displayed separately for humidity and temperature. In addition, logging and alarm status is shown using two high intensity LEDs.

• Logger name
• °C, °F
• Logging Rate (10s, 1m, 5m, 30m, 1hr, 6hr, 12hr)
• High and low alarms
• Immediate, delayed and push-to-start logging
• Display off, on for 30 seconds after button press , or permanently on
• Data rollover (Allows unlimited logging periods by overwriting the oldest data when the memory is full)

The EL-USB-1-PRO is suitable for a wide variety of applications, these include:

• Pharmaceutical fridge monitoring
• Transportation
• Food & drink
• Building & site monitoring
• HVAC
