Lascar EMT 1900 – Digital LCD Thermometer with Single-Hole Mounting

• Precision Instrumentation Systems
• Power Supply Monitoring
• Hand held instruments
• Panel-Mount Indication
• Automotive Projects

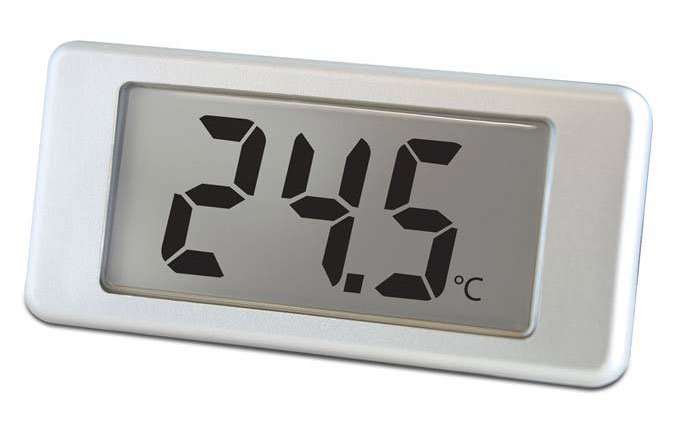

EMT 1900 is an easy to mount LCD digital panel meter. The module can measure ambient temperature via a built-in sensor and outside temperature via an external sensor (not supplied). The module uses NTC temperature sensors to ensure high accuracy over a wide temperature range. To mount the module, the user need only drill a single 5.5mm / 7/32″ hole in the panel. The module is fitted to the panel by locating its screw threaded stud through the hole, fitting the washer and tightening the nut provided. The module’s connecting wires pass through the hollow stud into the target application, where they can be easily plugged or soldered into place. A rubber seal is included, providing splashproof protection for the unit when fitted to the meter during installation.

This panel meter features a 3½ digit LCD for measurement of ambient temperatures to 50°C (122°F) or external temperatures to 220°C (428°F) when used with the NTC-PROBE-1900 (available separately). Fitted with a threaded stud which allows mounting of the product through a 5.5mm (7/32”) drill hole, this unique enclosure provides quick and easy mounting. A rubber seal provides splashproof protection when fitted between the meter and mounting panel. Connection is via wires.
