Leader AM-3805 Audio Monitor and Loudness Meter
31 people are viewing this product right now
$8,415.00
Shipping calculated at checkout.
Estimated delivery:5 days
Audio Monitor and Loudness Meter
Audio functions
- AES/EBU 8 channels input (1 to 16ch) and output (1 to 16ch)
- Balanced analog input (1 to 8ch) and output (1 to 8ch)
- Stereo speakers L/R
- Stereo headphones
- 5.1ch down mix compliant to ISO/IEC 13818-7:1997(E) matrix
- Audio volume and L/R balance
Clear view LCD panel
- Status
- Audio level bar
- VU meter
- Spectrum analyzer
- Lissajous Audio peak meter
- Loudness meter, etc
Loudness meter functions
- Loudness meter compliant to ITU-R BS.1770
- Overwriting re-measurement
- Various trigger point
- Data logging
GPIO
- GPI to select audio channel, preset data loading
- GPO to alarm output, remote control
- Clock input
Guarantee Safe and Secure Payment Checkout
Description
Leader AM-3805 Audio Monitor and Loudness Meter
Audio monitor fitted with a loudness meter and offering a host of different display functions.
Astro audio monitor AM-3805 separates audio signal embedded in HD/SD-SDI and output to equipped speakers and headphones for audio monitoring. It supports wide variety of display mode such as VU, Peak, Lissajous, Spectrum and Loudness meter.
Features
Audio functions
- AES/EBU 8 channels input (1 to 16ch) and output (1 to 16ch)
- Balanced analog input (1 to 8ch) and output (1 to 8ch)
- Stereo speakers L/R
- Stereo headphones
- 5.1ch down mix compliant to ISO/IEC 13818-7:1997(E) matrix
- Audio volume and L/R balance
Clear view LCD panel
- Status
- Audio level bar
- VU meter
- Spectrum analyzer
- Lissajous Audio peak meter
- Loudness meter, etc
Loudness meter functions
- Loudness meter compliant to ITU-R BS.1770
- Overwriting re-measurement
- Various trigger point
- Data logging
GPIO
- GPI to select audio channel, preset data loading
- GPO to alarm output, remote control
- Clock input
Dedicated GUI
Connecting PC and LAN cable, it supports Java based web browsing operation, loudness level check, log out, etc.
GUI samples
GUI entrance page
Loudness history
Loudness trigger and logging

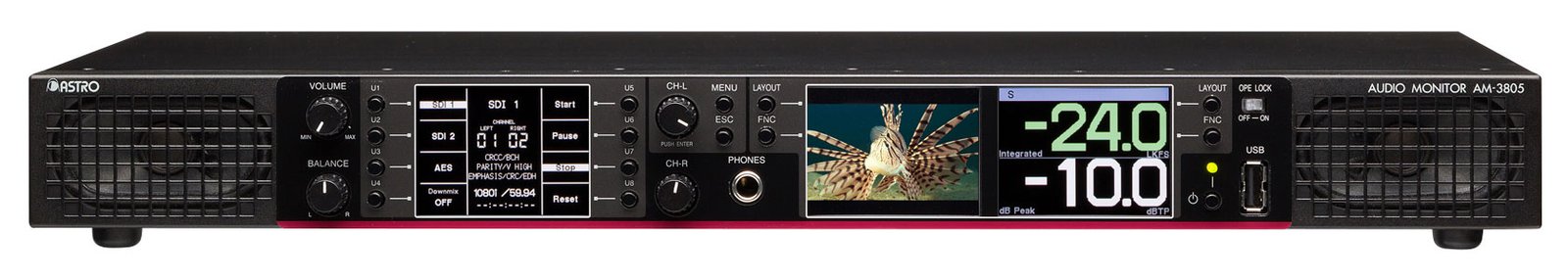

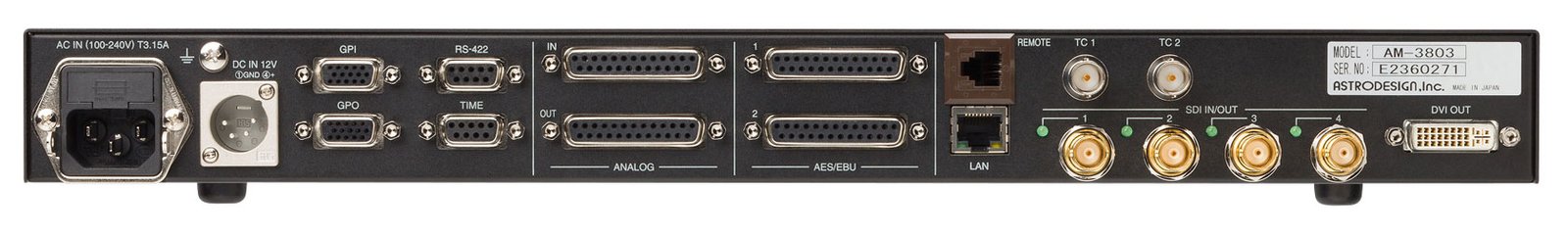

Appearance
Loudness application
Loudness log analysis software SP-3802
- Load and analysis loudness log from AM-3803/3805
- Analysis result display and log output for smooth operation
