Phabrix PHSXE – SxE Eye and Jitter

The ability of the SxE to produce eye patterns from a 3G signal is particularly significant for those users requiring a solution for testing high end products in the 3G arena. The SxE’s 3G-SDI, HD-SDI and SD-SDI eye display allow highly detailed measurements to be made. Jitter measurements are among the more important requirements in the design and operation of high-speed serial links and these can be obtained using the SxE’s thermometer display for ‘go’ or ‘no- go’ SMPTE compliance testing. These comprehensive features propel the SxE into the domain of much more expensive bench bound products.

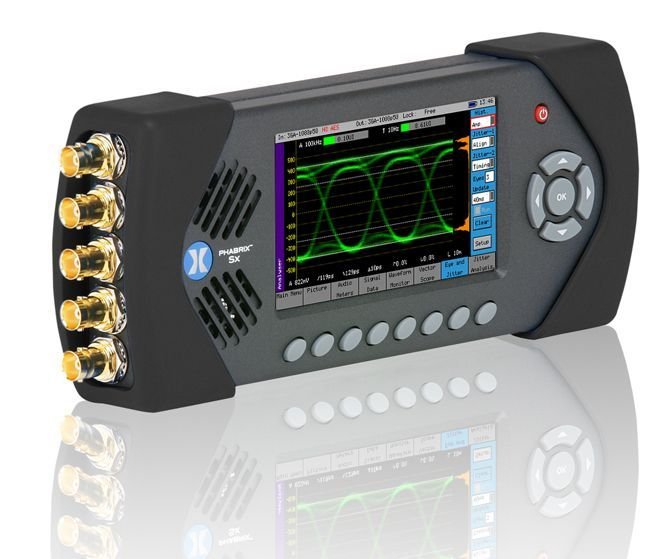

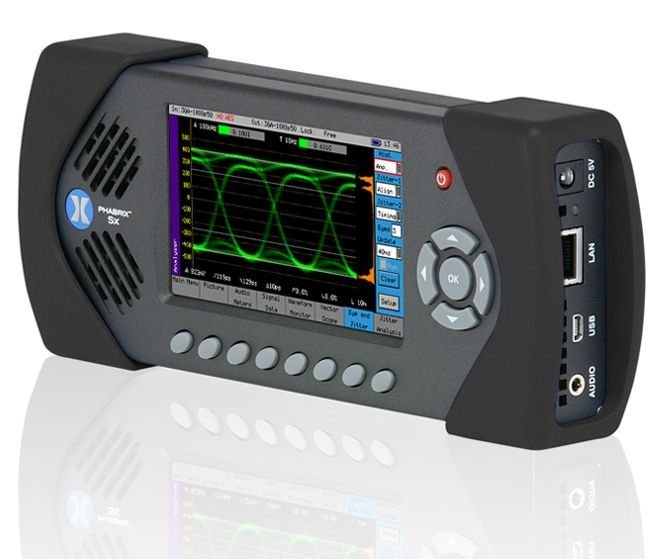

The SxE’s intuitive interface and logical workflow allow the professional engineer to quickly select from the numerous on-board toolsets. Feedback is smooth and interactive clearly displaying eye and jitter waveforms with optional filter selection for timing and alignment measurements on its clear 4.3” 16:9 colour TFT screen.
