Leica LINO L4P1 Multiline Laser Pack
17 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:5 days
Lino L4P1 self-levelling multi line laser, manual fine adjustment, red beam Includes: Lino L4P1, Quick start guide, rugged Case, Li-Ion battery pack incl. charger and plugs, alkaline battery tray, laser target, safety instructions, calibration certificate, warranty card.
- All-in-one 180° multi-line laser layout tool
- Designed for jobs that require both a line laser and a point laser
- Self-leveling pendulum ensures a level line
- Create a total of five layout points for easy alignment and quick height transfers from wall-to-wall or floor-to-ceiling
- Four cross line lasers make this the ultimate 90° layout tool
- Runs on rechargeable Li-Ion and standard alkaline batteries
Guarantee Safe and Secure Payment Checkout
Description

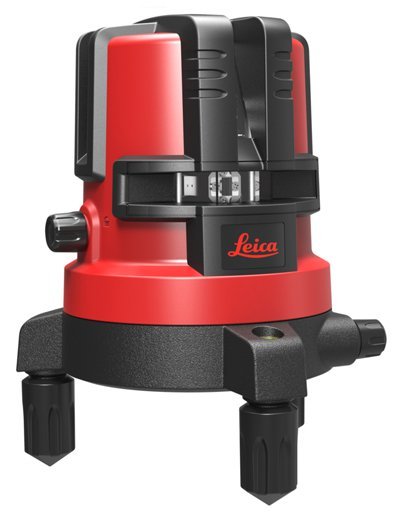

Leica LINO L4P1 Multiline Laser Pack
- All-in-one 180° multi-line laser layout tool
- Runs on rechargeable Li-Ion and standard alkaline batteries
- Designed for jobs that require both a line laser and a point laser
- Self-leveling pendulum ensures a level line
The Leica LINO L4P1 is a new, all-in-one 180° multi-line laser layout tool designed to handle jobs that have traditionally required both a line laser and a point laser.
The new base of this laser level is designed for fast setups. Just grab and spin the unit on its base to get close, then use the fine-tune knob to adjust the line or cross point for perfect placement.
The ideal layout tool for:
- Wood or steel stud construction
- Point transfer for electrical installations
- Interior finish work
- Many other trade applications
Combined with an overhead plumb laser point, the intersections of the three 180° vertical laser lines with the horizontal laser line create a total of five layout points for easy alignment and quick height transfers from wall-to-wall or floor-to-ceiling.
The self-leveling pendulum ensures a level line. You know your line is out of level when it blinks. If the points are out of leveling range, they shut off. Once level, the line goes solid or the dot appears. Lock the pendulum to set out angled lines or to protect the mechanism when you aren’t using it.
The L4P1 runs on both rechargable Li-Ion batteries — good for up to 24 hours on a single charge — as well as standard alkaline batteries.
As with all Leica laser levels, the L4P1 is IP54 rated dust-proof and splash protected.
| Technical Data | Lino P3 | Lino P5 | Lino L2 | Lino L2+ | Lino L2G+ | Lino L2P5 | Lino L360 | Lino L4P1 |
| Range | Up to 50 FT* | Up to 100 FT* | Up to 50 FT* | Up to 100 FT* | Up to 50 FT* | |||
| Levelling accuracy @ 5 m | 1⁄16″ | 1⁄16″ | 1⁄16″ | 1⁄16″ | ||||
| Self-levelling range | 4° ±0.5° | 3.5° ±0.5° | ± 3° | |||||
| Accuracy of plumb point @ 5 m | 1⁄16″ | – | 1⁄16″ | – | 1⁄16″ | |||
| Accuracy of horizontal line @ 5 m | – | 1⁄16″ | 1⁄16″ | |||||
| Vertical accuracy @ 3 m line length | – | 1⁄16″ | 1⁄16″ | 1⁄16″ | 1⁄16″ | |||
| Beam direction | Up, down, forward | Up, down, forward, right, left | Vertical, horizontal | Vertical, horizontal | Vertical, horizontal, cross lines | Vertical, horizontal, up, down, right, left | Vertical, 360°, horizontal | 3 vertical and 1 horizontal lines, 1 plumb down |
| Laser type | 635 nm / Class 2 | 515 – 520 nm / Class 2 | 635 nm / Class 2 | 635 nm / Class 2 | ||||
| Protection class | IP 54 | IP 65 | IP 54 | |||||
| Battery | Type AA 3×1,5V | Type AA 4×1,5V | NiMH battery pack (rechargeable) | rechargeable Li-Ion batteries (and Alkaline batteries 4xAA, 1.5 V) | ||||
| Weight without batteries | 11 oz | 11 oz | 11 oz | 13 oz | 36 oz | 41 oz | ||
| PROTECT service offering | Manufacturer’s Warranty: Lifetime No Cost period: 2 plus 1 years with registration | |||||||
* Depending on lighting conditions
