Leica Rugby 610 – 810945 – Basic Package, Battery Tray Not Included
25 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:3 days

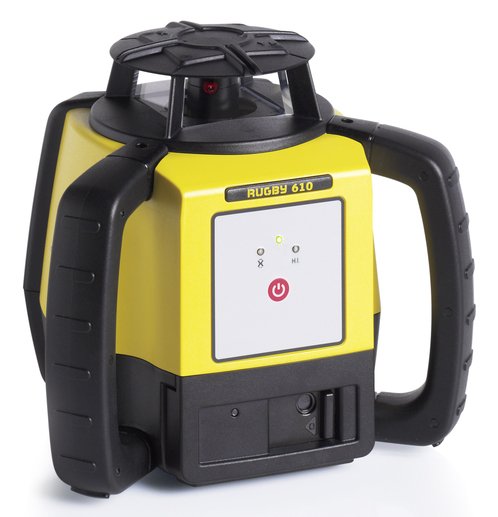

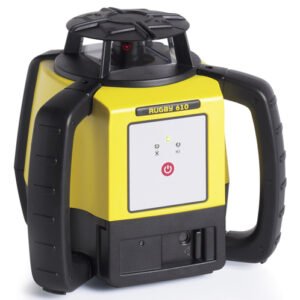

Rugby 610 – A general construction laser with carrying case and user manual.
- Self-leveling, horizontal laser
- One button operation – no training required
- IP67 rated for water and dust
- Superb performance with all Leica Rod Eye receivers
- Extend your working range up to 2,000 feet (600m) using the Rod Eye 140 Classic and Rod Eye 160 Digital
Guarantee Safe and Secure Payment Checkout
Description
Leica Rugby 610 – 810945 – Basic Package, Battery Tray Not Included
Applications:
- Concrete pouring
- Formwork leveling
- Transferring or checking of heights
Leica Rugby lasers are the toughest rotating lasers suitable for all construction applications. Level, align and square much quicker than ever before, eliminating costly errors and downtime.
Get right to work
Whether it is concrete pouring, formwork levelling, transferring or checking of heights, the Leica Rugby 610 rotary laser level offers increased productivity combined with the ultimate ease of use. One button interface makes the operation of laser extremely easy and absolutely fool proof. No training and no preparation is required – get right to work.
Extended working range and battery life
The Rugby 610 rotating laser delivers great performance with the Rod Eye Basic receiver. If needed, the operating range can be extended to 600 m with the Rod Eye 140 and the Rod Eye 160 digital receivers. The Rugby 610 is available in packages with the long-lasting and quickly charging Li-Ion battery for even longer operating times.
Your dependable partner on a jobsite
Assuring high reliability and no downtime, the Rugby 610 professional laser is sealed to the water and dust protection standard (IP 67) which stands for complete protection against dust and withstanding of water immersion up to 1 m. The rubber over mould handles offer great protection and easy grip handles. Fit, fast, tough – Rugby 610 represents it all. In addition, PROTECT by Leica Geosystems grants customers with Lifetime Manufacturer’s Warranty and three year No Cost* period for the Rugby 610 laser level.
| Technical Data | Rugby 610 | Rugby 620 | Rugby 640 |
| Functionality | Self-leveling horizontal, single manual slope (with slope adapter) | Self-leveling horizontal, with dual axis manual slope | Self-leveling horizontal, vertical, 90° with dual axis manual slope |
| Range (diameter) with RE Basic | 500 m (1.650 ft) | 600 m (2.000 ft) | 500 m (1.650 ft) |
| Range (diameter) with RE 140/160 | 1.100 m (3600 ft) | ||
| Self-levelling accuracy | ±2.2 mm @ 30 m (± 3 ⁄ 32 in @ 100 ft) | ±2.2 mm @ 30 m (± 3 ⁄ 32 in @ 100 ft) | ±1.5 mm at 30 m (± 1 ⁄ 16 in @ 100 ft) |
| Self-levelling range | ±5° | ||
| H.I. elevation alert | ■ | ■ | ■ |
| Rotation speeds | 10 rps | 10 rps | 0, 2, 5, 10 rps |
| Scanning modes | 10°, 45°, 90° | ||
| Remote control / radius | RC400 / 100 m (328 ft) | ||
| Laser diode type / class | 635 nm / Class 1 | 635 nm / Class 1 | 635 nm / Class 2 |
| Dimensions (HWD) | 212 × 239 × 192 mm (8.4 × 9.4 × 7.6 in) | ||
| Weight with battery | 2.4 kg (5.2 lbs) | 2.6 kg (5.6 lbs) | |
| Batteries (alkaline / rechargeable) | Four D-cells / Li-Ion pack (A600) | ||
| Battery life (alkaline / rechargeable) | 60 hours / 40 hours @ 20°C (68°F) | ||
| Environmental standard | IP 67 | ||
| Operating temperature range | –10°C to +50°C (+14°F to +122°F) | –20°C to +50°C (–4°F to +122°F) | –20°C to +50°C (–4°F to +122°F) |
| PROTECT service offering | Manufacturer’s Warranty: Lifetime No Cost period: 3 years | ||
