Description

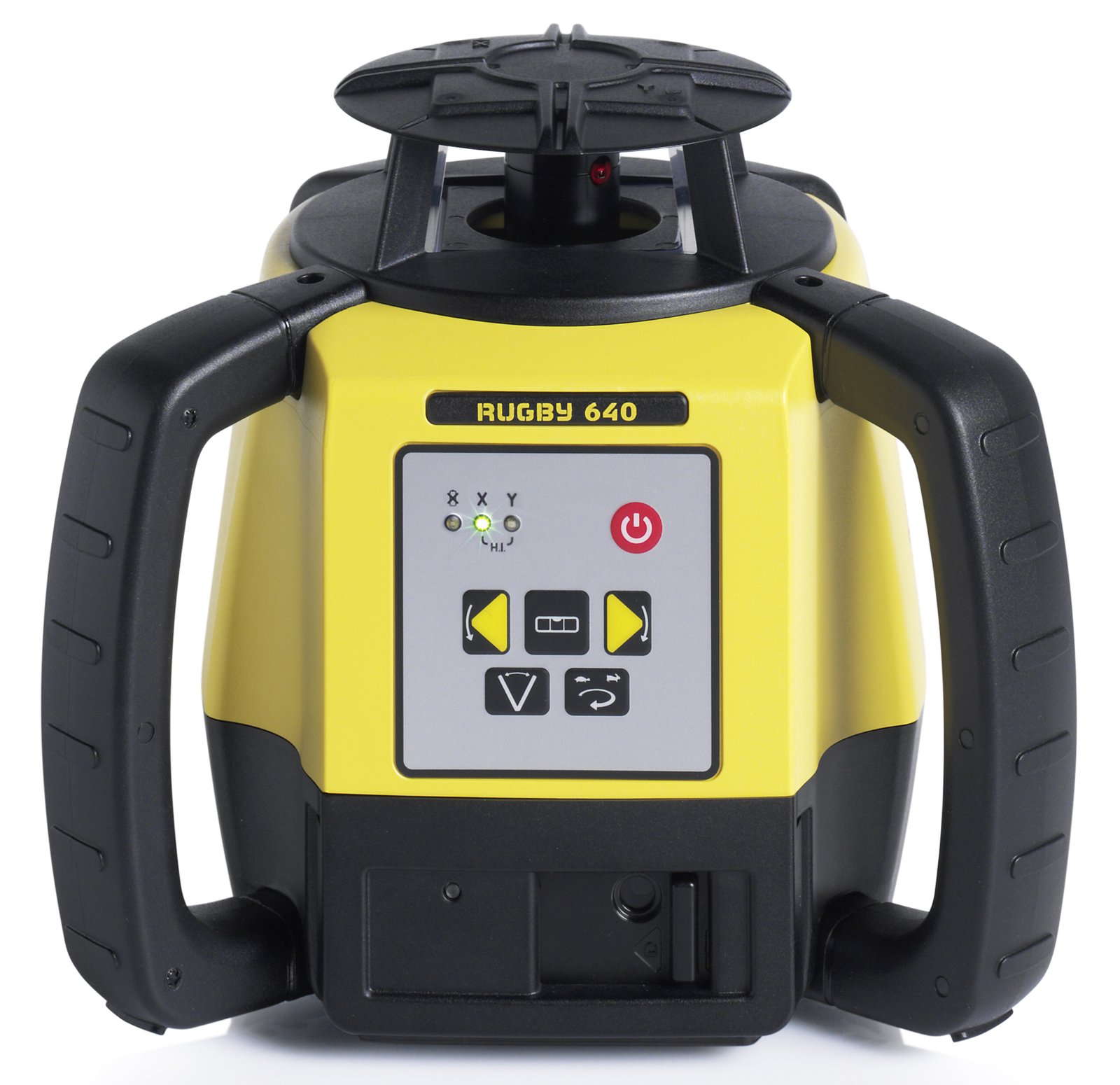

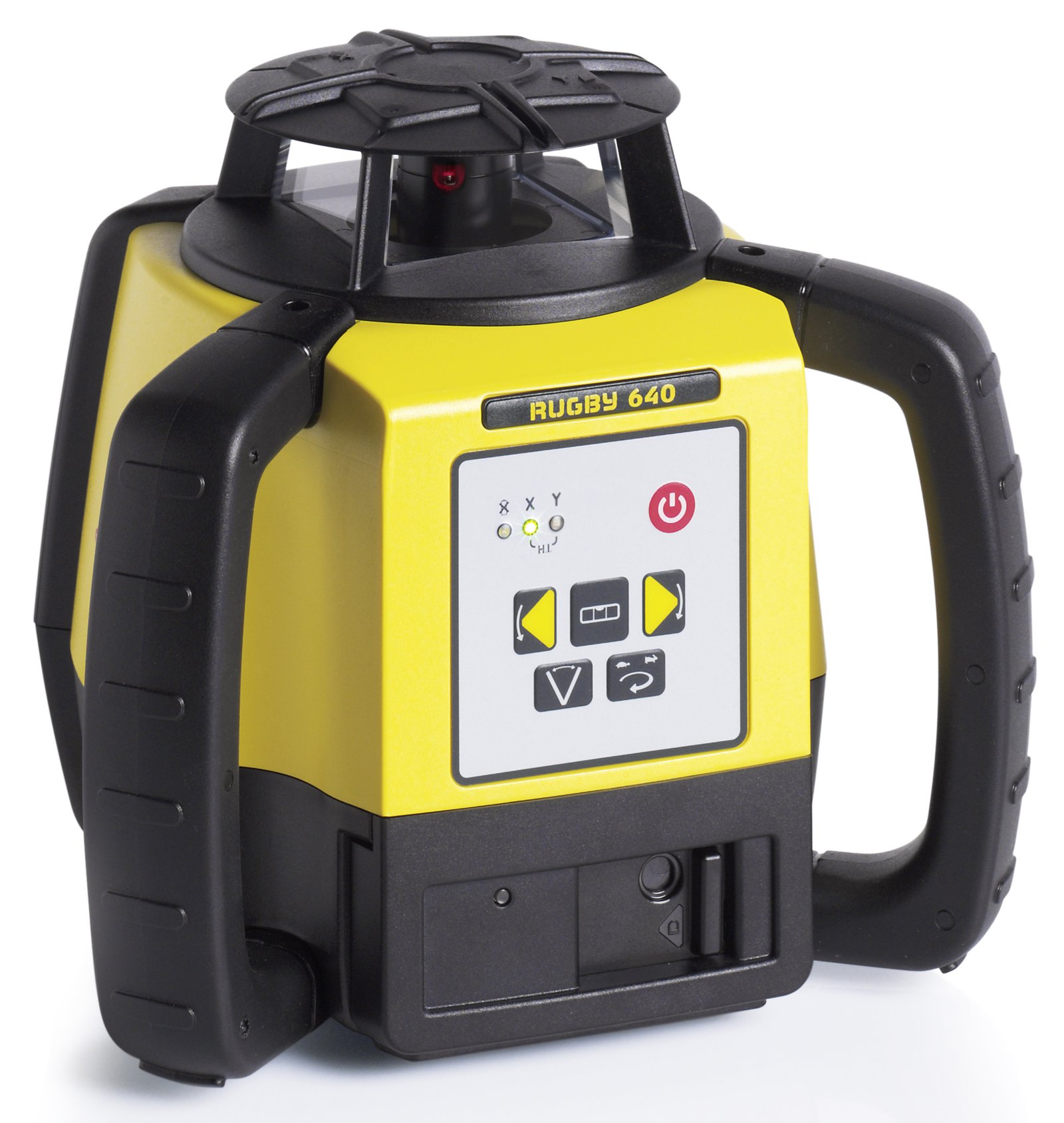

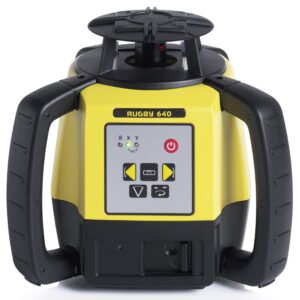

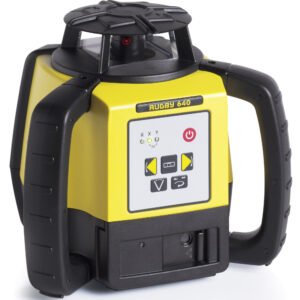

Leica Rugby 640 with Rod Eye-140 and A-600 Li-Ion Battery Pack, Charger

- Multi-purpose laser with manual grade capability
- Perform horizontal, vertical and simple slope tasks quickly and reliably
- Fit for any interior and exterior leveling, aligning and squaring application
- Scan 90 – make layout easier by quickly moving the beam to the left or right side
Best price/quality ratio
Rugby 640 multi-purpose laser offers contractors a professional solution with an outstanding price-to-quality-ratio, allowing quick and easy levelling and aligning for general construction and interior applications. Contractors benefit from the extremely robust Li-Ion battery with versatile charging options, and can take advantage of the extended functionality and application flexibility with Leica Rod Eye laser receivers and Leica RC 400 remote control. The strong service offering – PROTECT by Leica Geosystems, includes the Lifetime Manufacturer’s Warranty and three year No Cost* period for the Rugby 640 rotating laser.


Versatility inside and outside
Offering high versatility in general construction and interior applications, the Leica Rugby 640 universal laser allows contractors to perform all horizontal, vertical and simple slope tasks quickly and reliably. For easy beam detection, use the simple Leica Rod Eye Basic laser receiver and for extended range and performance, upgrade to Leica Rod Eye 140 or Rod Eye 160 digital receivers. Increasing functionality and application flexibility, the Leica RC 400 remote control allows contractors to effortlessly perform slope and plumb applications, move scan lines, change rotating speed and save on battery power whenever needed. Moreover, drywall contractors benefit from extremely easy and accurate layout and alignment of drywalls with Scan 90° function, automatic plumb down and 90° reference beam.

Long working times
Ensuring no downtime due to low battery status, the Rugby 640 construction laser comes in package with the long-lasting, rechargeable Li-Ion battery which can be charged during operation, in the car with the car charger (optional accessory) and from any battery with the 12V battery cable (opt.). Contractors working on large construction sites with many sunshine hours will highly benefit from the optional solar panel that can be attached to the carry case for cost-free charging of the Rugby 640 laser. For even more environmentally-friendly battery management and increased efficiency, the RC 400 remote control puts the laser to sleep during your break, saving the battery and assuring that the setup is the same when you are back.
| Technical Data | Rugby 610 | Rugby 620 | Rugby 640 |
| Functionality | Self-leveling horizontal, single manual slope (with slope adapter) | Self-leveling horizontal, with dual axis manual slope | Self-leveling horizontal, vertical, 90° with dual axis manual slope |
| Range (diameter) with RE Basic | 500 m (1.650 ft) | 600 m (2.000 ft) | 500 m (1.650 ft) |
| Range (diameter) with RE 140/160 | 1.100 m (3600 ft) | ||
| Self-levelling accuracy | ±2.2 mm @ 30 m (± 3 ⁄ 32 in @ 100 ft) | ±2.2 mm @ 30 m (± 3 ⁄ 32 in @ 100 ft) | ±1.5 mm at 30 m (± 1 ⁄ 16 in @ 100 ft) |
| Self-levelling range | ±5° | ||
| H.I. elevation alert | ■ | ■ | ■ |
| Rotation speeds | 10 rps | 10 rps | 0, 2, 5, 10 rps |
| Scanning modes | 10°, 45°, 90° | ||
| Remote control / radius | RC400 / 100 m (328 ft) | ||
| Laser diode type / class | 635 nm / Class 1 | 635 nm / Class 1 | 635 nm / Class 2 |
| Dimensions (HWD) | 212 × 239 × 192 mm (8.4 × 9.4 × 7.6 in) | ||
| Weight with battery | 2.4 kg (5.2 lbs) | 2.6 kg (5.6 lbs) | |
| Batteries (alkaline / rechargeable) | Four D-cells / Li-Ion pack (A600) | ||
| Battery life (alkaline / rechargeable) | 60 hours / 40 hours @ 20°C (68°F) | ||
| Environmental standard | IP 67 | ||
| Operating temperature range | –10°C to +50°C (+14°F to +122°F) | –20°C to +50°C (–4°F to +122°F) | –20°C to +50°C (–4°F to +122°F) |
| PROTECT service offering | Manufacturer’s Warranty: Lifetime No Cost period: 3 years | ||
Product General Attributes | |
|---|---|
| Unique Features | Rugby 640 with Rod Eye-140 A-600 Li-Ion Battery Pack |
| Warranty | 3 YEARS |
| Safety Approval | CE |
| IP Rating | IP67 |
| Product Weight | 5.6 LBS |
| Battery Type | Li-ion |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Switzerland |
