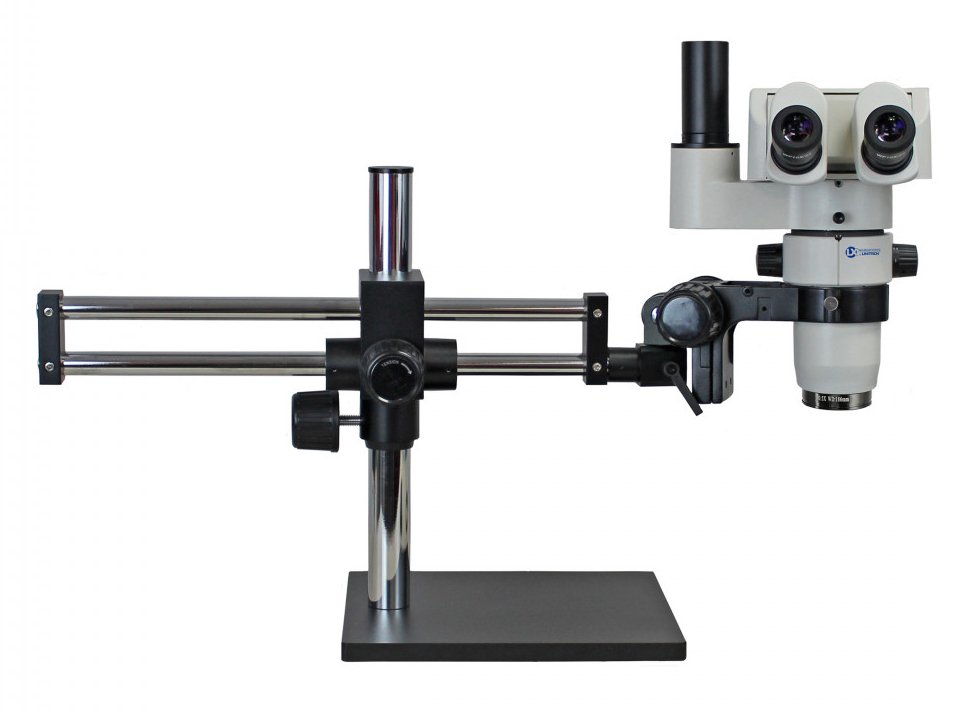

LX Microscopes by Unitron 374BBTRT – Trinocular Microscope with 0.5x Objective and Boom Stand, without Ring Light or Camera (Catalog # 24820BB-TRT5)
35 people are viewing this product right now
Original price was: $3,947.00.$3,578.96Current price is: $3,578.96.
Shipping calculated at checkout.
Estimated delivery:5 days
S-Z 24mm Ergo Trinocular, BB Stand, (0.5X lens included)
- System 374 stereo microscope system
- Model number 374BBTRT / Catalog number 24820BB-TRT5
- Trinocular body
- Dual arm boom stand
- Includes 0.5x objective
- THIS MODEL DOES NOT INCLUDE A CAMERA OR RING LIGHT
- Eyetube inclination can be adjusted between 0 and 30 degrees
- Eyetubes can be rotated 180 degrees
- Magnification with included 0.5x objective – 4 to 25x, 186mm working distance
- Magnification with optional 1.0x objective – 8 to 50x, 78mm working distance
Guarantee Safe and Secure Payment Checkout
Description
LX Microscopes by Unitron 374BBTRT – Trinocular Microscope with 0.5x Objective and Boom Stand, without Ring Light or Camera (Catalog # 24820BB-TRT5)
- Model number 374BBTRT / Catalog number 24820BB-TRT5
- Trinocular body
- Dual arm boom stand
- Includes 0.5x objective
- THIS MODEL DOES NOT INCLUDE A CAMERA OR RING LIGHT
This item is a System 374 microscope with a dual arm boom stand and 0.5x objective. It does not include a camera or a ring light.
System 374 microscopes
LX Microscopes by UNITRON’s System 374 is the newest addition to its industry renowned, ergonomic microscope family. The ergonomic features of the System 374 are ideal for prolonged use and offer added flexibility for multiple operator usage. Distortion free viewing through a high quality, 24mm optics system provides a 4X-25X magnification range when used with a 0.5X Reducing lens or an 8X-50X magnification range when used with a 1.0X Objective lens. Easy to adjust, tilting binocular eyetubes can be inclined from 0 to 30° and the eyetubes can be rotated 180° to increase the height by an additional 3 inches. System 374 models allow operators to simultaneously view images on screen and through the eyepieces improving productivity.
Several models available
System 374 microscopes are available in packages with two types of stands, a 0.5x or 1.0x objective, and with or without a camera and light source. The following is an overview of the main components for each:
| Model | Catalog | Stands | Include objective | ||||
| Boom | Plain | 0.5x | 1.0x | Camera | Light | ||
| 374BBTRT | 24820BB-TRT5 | ||||||
| 374BBTRT-DMLED-HOHD | 24825BB-HDTRT5 | ||||||
| 374PFSTRT | 24820-TRT | ||||||
| 374PFSTRT-DMLED-HOHD | 24825-HDTRT |
Microscopes/Benchtop and Portable Microscopes Template | |
|---|---|
| Type (Microscopes) | Stereo |
| Body Style | Trinocular |
| Illumination Type | |
| Magnification max | 25 x |
| Magnification min | 4 x |
| Working Distance | 186 MM |
| Variable Light Control | No |
| Rotating Head | Yes |
| Stand Type | Dual Boom |
| Camera Included | No |
| ESD Safe | No |
Product General Attributes | |
| Warranty | 5 YEARS |
